American Standard Colony 2675.018 Parts List

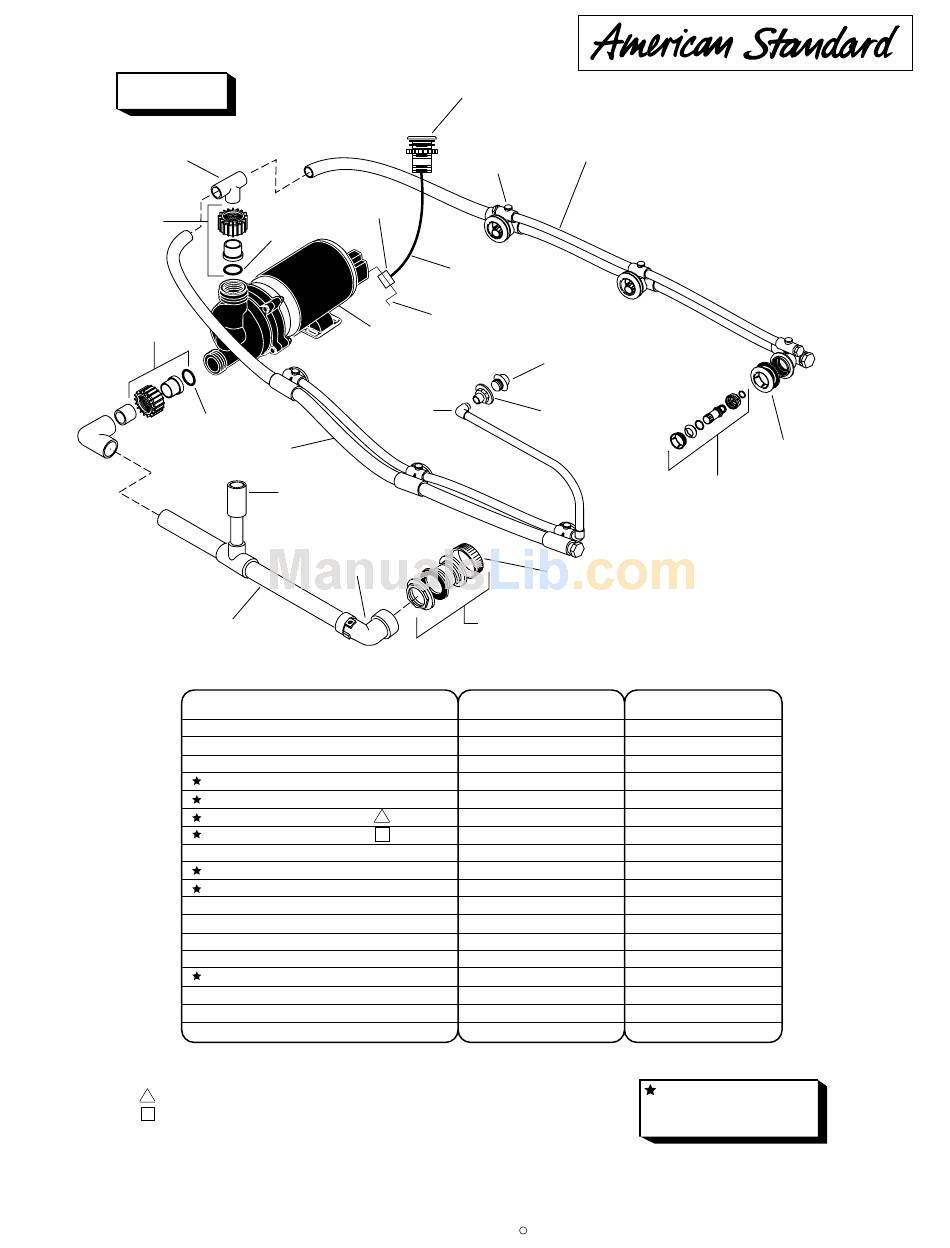

PHENIX 5 WHIRLPOOL
MODEL NUMBER
2675.018
DISCHARGE
TEE
PUMP
DISCHARGE
COUPLING
PUMP
SUCTION
COUPLING
O-RING
1-1/2" RIGID
PVC TUBING
Pump Suction Coupling
O-Ring
Pump Discharge Coupling
Air Control Valve
Air Control Valve Housing and Nut
Jet Nozzle Assembly
Escutcheon Assembly
Jet Body Assembly
Suction Guard
Suction Fitting
Suction Fitting Elbow
Discharge Tee
Pump w/Air Swtich (1 HP)
Air Switch
Air Actuator Cap and Body
Air Actuator Tubing
Safety Suction Device
NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets.
See Section "J" for Additional Parts and Accessories.
Removal/installation requires tool part no. 047530-0070A.
Removal/installation requires tool part no. 047605-0070A.
H-92
Rev. A
AIR
SWITCH
O-RING
PUMP
AIR
CONTROL
VALVE
ELBOW
1" RIGID
PVC TUBING
SAFETY
SUCTION
DEVICE
SUCTION FITTING
ELBOW
DESCRIPTION
AIR
ACTUATOR
CAP AND
BODY
1/2" RIGID
JET BODY
PVC TUBING
ASSEMBLY
AIR
ACTUATOR
TUBING
P/O
MOTOR
AIR
CONTROL
VALVE
AIR CONTROL VALVE
HOUSING AND NUT
SUCTION
GUARD
SUCTION
FITTING
PART NUMBER
047186-0070A
047187-0070A
047186-0070A
751676-XXX0A
068917-XXX0A
047587-XXX0A
047588-XXX0A
047627-0070A
047463-XXX0A
047550-XXX0A
047546-0070A
047438-0070A
752444-0070A
See Section J
752439-XXX0A
047602-0070A
752382-0070A
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
A m e r i c a n S t a n d a r d I n c . 1 9 9 9
C
ESCUTCHEON
ASSEMBLY
JET NOZZLE
ASSEMBLY
PKG QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
3 ft.
1
Replace XXX with
Fixture Color Code;
see page VII
