American Standard Lifetime 2645L.002 Specifications

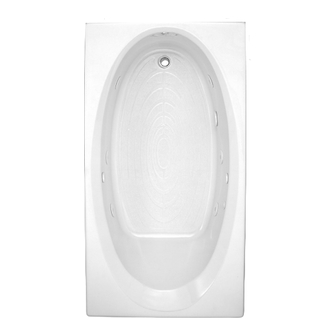

LIFETIME™ OVAL
5-1/2' Whirlpool and Bathing Pool
❏ Model# 2645L (specify color)
• Acrylic with fiberglass reinforcement
• Molded-in lumbar back rest
• Factory installed and tested whirlpool system
• 1.4 HP single speed, self-draining pump/motor
• Six adjustable Ideal Flow Comfort Jets™
• Side-mounted air switch On/Off
• Two air volume controls
• Factory installed and tested whirlpool system
• Self leveling feet
• Designed with undermount installation option
❏
Model# 2645LC:
• Same as above with the EverClean™ whirlpool
system. The EverClean™ antimicrobial system
incorporates AlphaSan®, a patented
antimicrobial agent manufactured right into the
circulation system components, which
suppresses the growth of unsightly algae,
fungus, mold and mildew.
❏ Model# 2645L.002 Bathing Pool only
Nominal Dimensions:
66" x 36" x 19-3/4"
(1676 x 914 x 502mm )
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
AlphaSan® is a registered trademark of Milliken & Co.
© 2007 American Standard Inc.
WHIRLPOOLS BY AMERICAN STANDARD
To Be Specified - Required:
❏ Color:
❏ Bath Filler: (specify finish)
❏ Bath Drain: 1583.470 (specify finish)
OR 1599.500.020 (white only)
To Be Specified - Optional:
❏ 5-1/2 Foot Acrylic Apron: 9366.018.XX (specify color)
❏ 5-1/2 Foot Apron: 9266.018.XXX (specify color)
* See American Standard Faucet Selector
For color/finish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
HD-9
LIFETIME™ OVAL
HIGH GLOSS ACRYLIC
Revised 7/07
