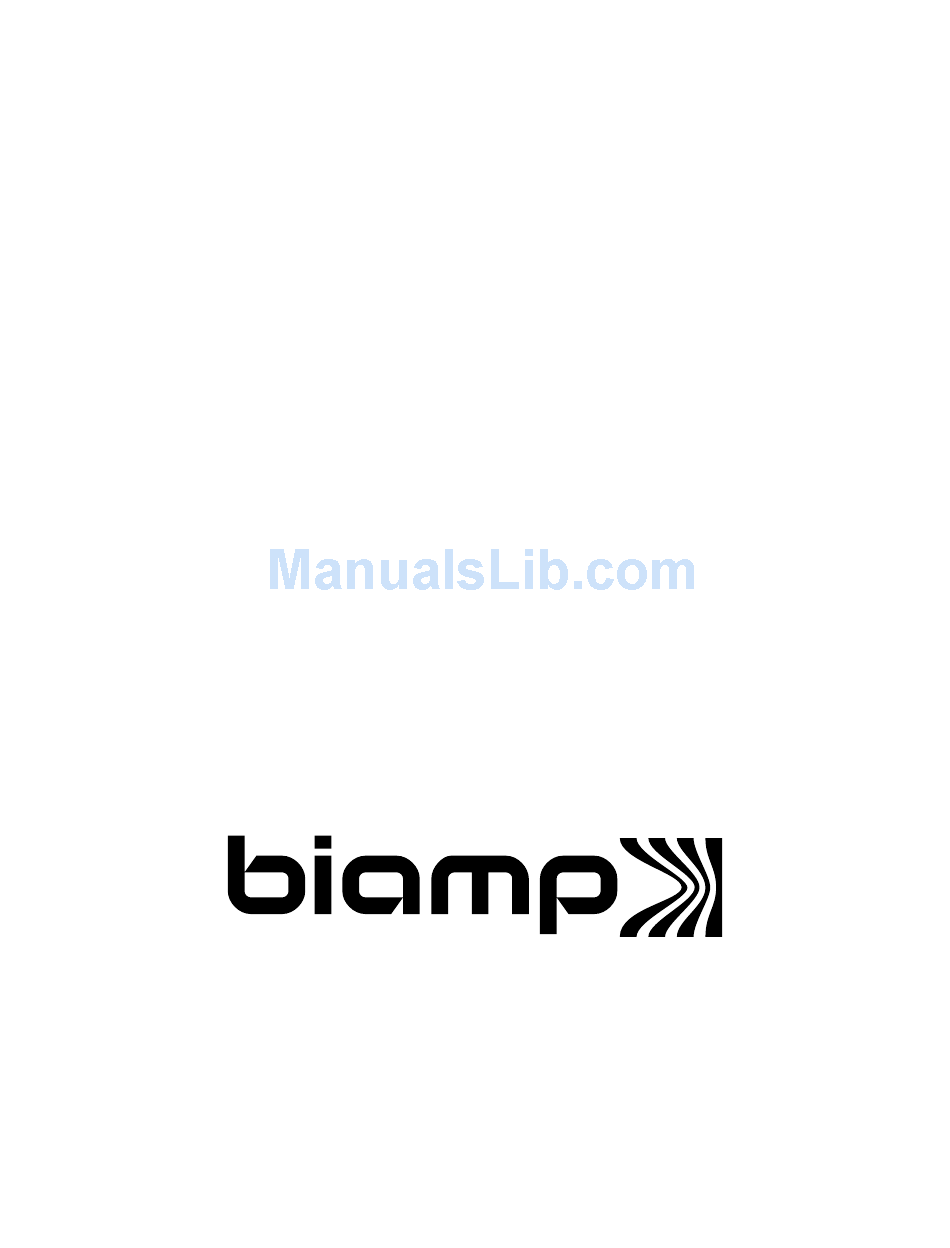

- Page 1 RACKMAX Stereo Rack-Mount Mixers Operation Manual _______________________________________________________________________________________ Biamp Systems, 14130 N.W. Science Park, Portland, Oregon 97229 U.S.A. (503) 641-7287 an affiliate of Rauland-Borg Corp.
- Page 2 RACKMAX ___________________________________________________________________________...
-
Page 3: Input Channel Controls
INPUT CHANNEL CONTROLS ___________________________________________________________________________ - - - trim high aux 1 aux 2 aux 3 aux 4 (10) (11) (12) solo (13) -
Page 4: Master Controls
MASTER CONTROLS ___________________________________________________________________________ power send 1 return 1 send 2 return 2 send 3 return 3 send 4 ret 3 pan (10) mono headphones (11) (12) mains solo (13) (14) (15) headphones (600 ohms min) 48 volt phantom power (16) - Page 5 INPUT CHANNEL CONNECTIONS ___________________________________________________________________________ line patch...
- Page 6 MASTER CONNECTIONS ___________________________________________________________________________ returns send 1 send 2 mono output send 3 (10) monitor/send 4 output DC Out +/-15V main 150 mA output (balanced) (11) 115V: 2A SB Fuse 230V: 1A SB Fuse USE ONLY WITH 115/230 VAC 250V FUSE 50/60 Hz 110V 200 Watts max...
- Page 7 MODIFICATIONS ___________________________________________________________________________ AUX 1 & 2 AUX 1 & 2 POST-FADER PRE-FADER AUX 3 POST POST AUX 1,2,3 AUX 1,2,3 POST AUX 1,2,3 TEST AUX 4 AUX 4 POST AUX 4 AUX 4 POST POST AUX 3 & 4 AUX 3 &...
- Page 8 SPECIFICATIONS ___________________________________________________________________________ !" #...
-
Page 9: Block Diagram
BLOCK DIAGRAM ___________________________________________________________________________ high +48V buss 80 Hz 2 KHz 10 KHz patch trim in/out fader phantom mic input trap power 2K ohms +8 dB +48 dB line input -15 dBu +15 dBu z-match 10K ohms post -15 dB aux 1 signal detect additional... - Page 10 WARRANTY ___________________________________________________________________________ BIAMP IS PLEASED TO EXTEND THE FOLLOWING 1-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS OWNER'S MANUAL. Thank you for purchasing BIAMP... AMERICAN SOUND CRAFTSMANSHIP Biamp Systems 14130 N.W. Science Park...
