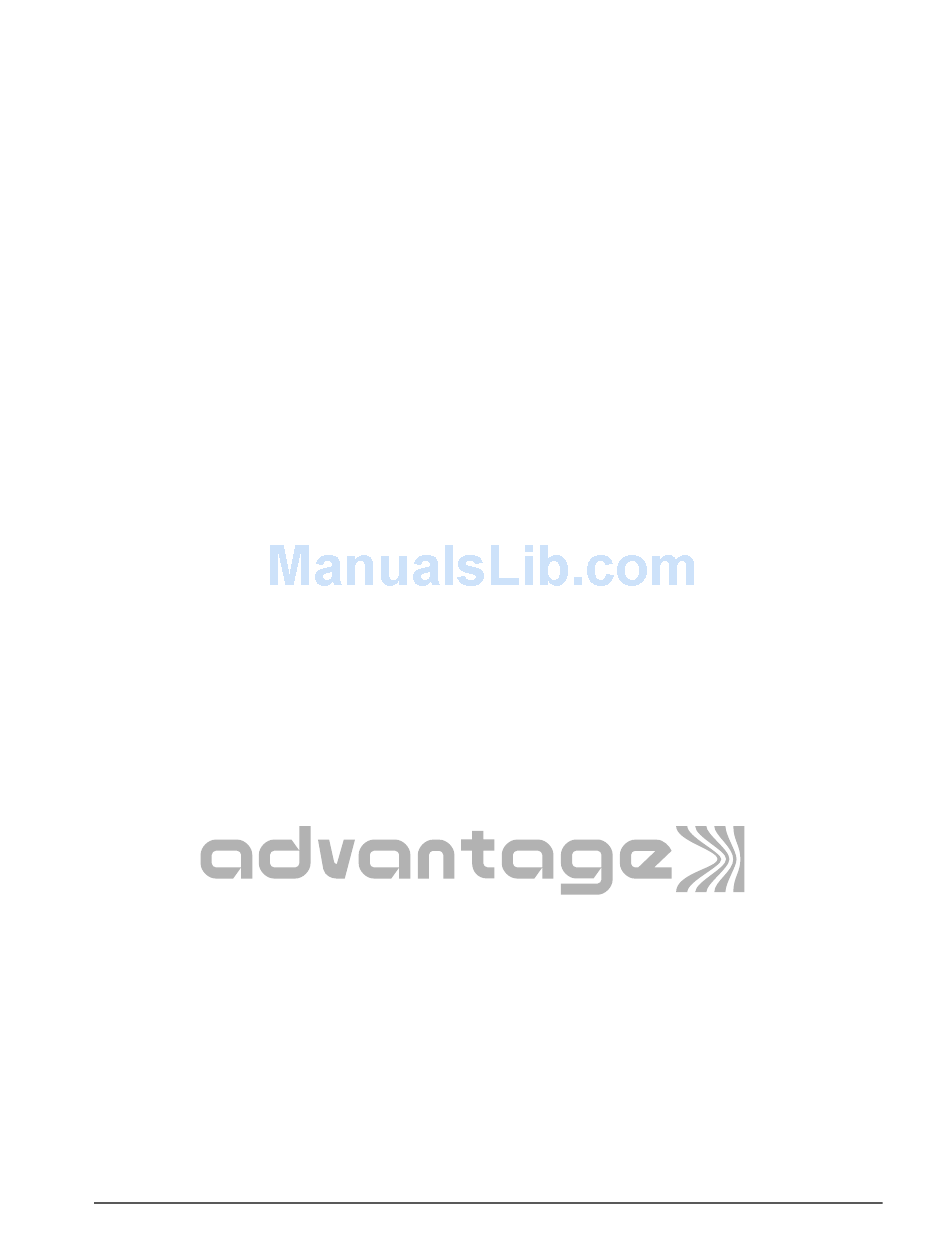

- Page 1 SPM522D Digitally Controlled Stereo Preamp/Mixer Operation Manual ® Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. (503) 641-7287 http://www.biamp.com 5/26/98 an affiliate of Rauland-Borg Corp.
-
Page 2: Table Of Contents
Setup / Options pg. 6 storage of 8 non-volatile memory presets, the SPM522D is ideally suited for applications such as meeting rooms, restaurants, bars, and aerobics studios. Configuration - PC Control Software pg. -
Page 3: Front & Rear Panel Features Pgs. 2
(see Configuration on pg. 11). Configuration on pg. 11). The Setup button is also used to return the SPM522D to factory default settings (see Setup on pg. 6). REAR PANEL FEATURES (3) Error Indicator: This red LED indicates when unusable (1) Mic 1 &... - Page 4 FRONT & REAR PANEL FEATURES (12) (11) (10) BIAMP SYSTEMS outputs mic 1 mic 1 Portland, Oregon phtm zone main mute signal present patch level level level zone main an affiliate of power trim limit limit Rauland-Borg Corp. stereo mono...
-
Page 5: Remote Controls
The type and quantity of remote controls is optional for the SPM522D. Remote control affects source selections, preset selection, mic/line input levels, and main/zone output levels. Remote controls may be added at any time, and do not require the SPM522D to be modified, opened, or removed from a rack. - Page 6 SPM522D in exactly the same way the Infrared Receiver or Wall-Mount does, using 2-conductor shielded cable (not included), and may be wired up to 2000 feet from the SPM522D. The circuit board is 2.27"W by 2.65"H, with four mounting holes (2" centers) and #6 mounting hardware provided.
-
Page 7: Setup / Options
(see Configuration on pg. 9). If the Setup button is held another 7 seconds (until the Error LED flashes twice), the SPM522D will begin setting all "preset mixes' to their factory defaults (see Configuration on pg. 7). If the Setup button is held another 2 seconds (until the Error LED flashes three times), the SPM522D will begin setting all 'Configuration Options' to their factory defaults (see Configuration on pgs. -
Page 8: Configuration - Pc Control Software
(and Comm Port Configuration is set), various screens are accessible through the drop-down menus at the top of the opening screen. The Mix screen appears whenever an SPM522D file is opened. Additional control screens are then available from the Configure SPM522D menu. - Page 9 TONE and BALANCE SCREENS Tone and Balance screens are available for all five Stereo Line Inputs. They are accessed through the Configure SPM522D drop-down menu (or by right-clicking on the Mix screen). Also, double-clicking on a Channel (1~5), within the Mix screen, will simutaneously select that channel and open its specific Tone and Balance screen.
- Page 10 However, the SPM522D supports twelve additional buttons, which are only available when using Remote Interface Kit or RS-232 control (see Remote Controls on pg. 5 & Computer Control on pg. 15). From the factory, the SPM522D is programmed as follows: Buttons 1~12 provide volume up, volume down, &...
- Page 11 Remote 1, with Zone actions assigned only to Remote 2. Remote Translator and Front Panel could then be assigned ‘universal’ control of all actions, or no control access at all. Another example: When the SPM522D is used in an application having a central control location and a subordinate control location, ‘system-wide’...
- Page 12 ‘new’ (off-line) files. Left-clicking Device Name allows a custom name to be given to the SPM522D, by entering up to 30 characters of text. The Device Name will be stored in the SPM522D memory, and will be displayed on the title bar of the Mix screen whenever that SPM522D is accessed with the software.
- Page 13 CONFIGURATION MUTE 1 / MIC 1 SCREEN The Mute 1 / Mic 1 screen is accessed by opening the Configuration Options screen and left-clicking the Mute 1 / Mic 1 tab. The Mute 1 / Mic 1 screen is used to select options which customize the function of the Mic 1 Mute terminal (see Front & Rear Panel Features on pg. 2). Left-clicking Mute 1 input causes gated operation of Mic 1 toggles assignment of gating to the Mic 1 signal.
- Page 14 CONFIGURATION MUTE 2 / MIC 2 SCREEN The Mute 2 / Mic 2 screen provides the same functions as the Mute 1 / Mic 1 screen, except that it affects the Mic 2 Mute terminal instead. The Mute 2 / Mic 2 screen is accessed by opening the Configuration Options screen and left-clicking the Mute 2 / Mic 2 tab. The Mute 2 / Mic 2 screen is used to select options which customize the function of the Mic 2 Mute terminal (see Front &...
- Page 15 CONFIGURATION CHANNEL 5 OVERRIDE SCREEN The Channel 5 Override screen is accessed by opening the Configuration Options screen and left-clicking the Channel 5 Override tab. The Channel 5 Override screen is used to select options which customize the function of the Override terminal (see Front & Rear Panel Features on pg.
-
Page 16: Computer Control
@ (the "commercial at" sign). The "receive data" (RxD) signal at the SPM522D Serial Port is combined with signals from any standard controls, before being sent to the main microprocessor. The computer can initiate any functions or actions that a standard control can, by simply transmitting the equivalent control button ASCII character. - Page 17 SPM522D is connected to a PC (if the system grounding is not carefully designed). For best performance, the PC ground and the chassis ground of the SPM522D should be at the same potential, and the PC should get AC power from the same source as the SPM522D (and any other audio equipment which is connected to the SPM522D).
- Page 18 COMPUTER CONTROL SPM522D to PC 9-Pin Connector 9-pin 9-pin SPM522D male female female male (shield) ground ground These connections may not be required: DTR to CD; DTR to DSR; or RTS to CTS. SPM522D to PC 25-Pin Connector 9-pin 25-pin...
-
Page 19: Applications
6 dB 6 dB 6 dB 12dB 12dB 12dB 12dB peak peak peak peak channel A channel B channel A channel B SPM522D outputs BIAMP SYSTEMS mic 1 phtm zone main patch mic 1 Portland, Oregon level level level zone main... - Page 20 CHANNEL 5 Remote Display Controller AM/FM tuner 101.9 remote control selection of presets affects room combining (SPM522D) and room equalization (EQ282M) room #1 display panel room #2 display panel IR receiver IR receiver with infrared receiver with infrared receiver...
- Page 21 MUTE MUTE 1 2 3 4 5 1 2 3 4 5 channel channel 1 2 3 4 5 1 2 3 4 5 zone zone SPM522D Remote Display Panel SPM522D Remote Display Panel MIC 1 MIC 2 ZONE MAIN...
- Page 22 APPLICATIONS Boardroom Sound System with Teleconference Feed & Remote Control stereo autoONE speakers BIAMP SYSTEMS main patch patch patch patch patch patch patch patch patch Portland, Oregon main stack in input input input input input input input input an affiliate of...
-
Page 23: Block Diagram
Stereo Program Inputs Program Source Selection & Outputs level bass treble Main Source Stereo Inputs Selector Stereo Main Stereo Limit Main Program Main Source 1 Output Input 1 Input 1 Volume Volume Balance Input 2 Left level Main Input 3 Limiter mono Stereo... -
Page 24: Specifications
SPECIFICATIONS Frequency Response (20Hz-20kHz @ +4dBu): +0/-2dB Total Harmonic Distortion (20Hz-20kHz @ +4dBu): < 0.05% Output Noise (20Hz-20kHz @ nominal levels): < -75dBu Equivalent Input Noise (20Hz-20kHz, 150 termination @ Mic/Line Input): -127dBu Maximum Gain (Mic/Line Input to Main/Zone Outputs): 75dB Input Trim Gain Range: Mic/Line Inputs (30dB pad out) -
Page 25: Warranty
WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL. BIAMP Systems expressly warrants this product to be 5. BIAMP SYSTEMS SHALL NOT IN ANY EVENT BE...
