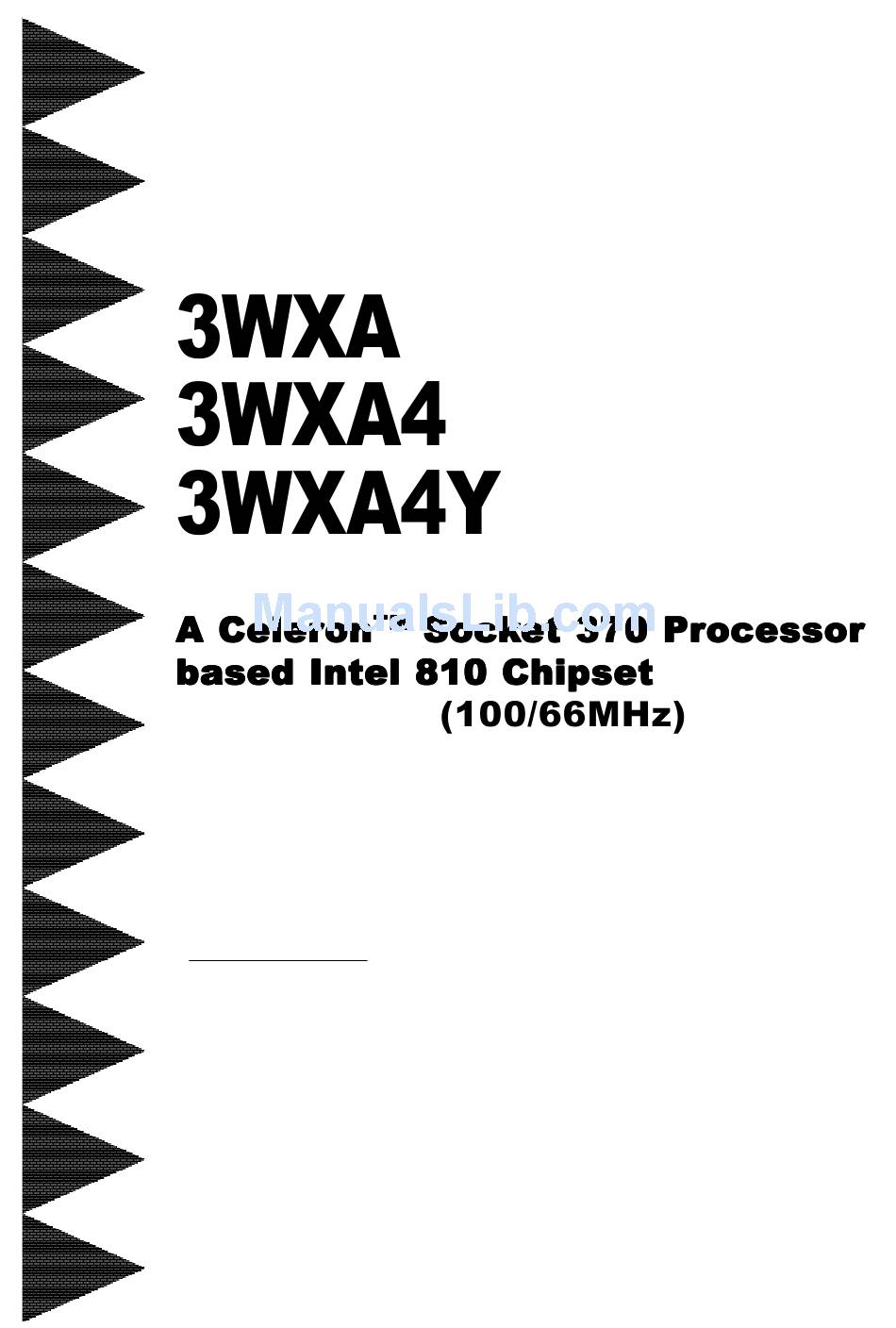

- Page 1 motherboard TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subjected to change without notice. Manual Revision 3.1 July 7, 1999...
- Page 2 Supports (5) 32 bit PCI slots, provides (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 66 devices. The 3WXA/4/4Y supports (5) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confu- sion when plugging in PCI card(s).
- Page 3 Features Award Plug & Play BIOS. With 4MB(FWH) Flash Memory you can always upgrade to the current BIOS. • 3WXA/4/4Y utilizes a Lithium battery which provides environmental protection and longer battery life. • Supports the Universal Serial Bus (USB) connector. The onboard ICH (82801) chip provides the means for connecting PC peripherals such as;...
- Page 4 Installation 3WXA/4/4Y 3WXA/4/4Y Detailed Layout Figure 1 Page 4...
-
Page 5: Installation
Configure Jumpers to match your hardware System Memory Configuration Device Connectors The 3WXA/4/4Y designs all motherboards with the fewest jumpers to make your installation fast and easy. The following will describe all of the jumpers that you are required to set before moving on to step 2. - Page 6 Installation 3WXA/4/4Y On Board AC’97 Codec Audio JP8 = 1-2 Enabled (Default for 3WXA/3WXA4) = 2-3 Disabled AC’97/MR Configuration Table Audio Codec’97 (AC’97) Audio Codec (AC) Modem Codec (MC) **** Audio/Modem Codec (AMC) ***** Modem Riser Card (MR) Note: In the BIOS setting, “AC97 Audio” of “Integrated Peripher- als”...
- Page 7 3WXA/4/4Y Installation The 3WXA/4/4Y supports (2) 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized DRAM). • 100MHz system memory bus frequency. Even if the system host bus is 66MHz. •...
- Page 8 Installation 3WXA/4/4Y Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connec- tions (figure 6). parallel port Joystick/Midi PS/2 Mouse USB port PS/2 KEYBOARD COM1 VGA1 Speaker Line_in Figure 6 J2,J3: Chassis Panel Connector •...
-
Page 9: Power On/Off
3WXA/4/4Y Installation (This is connected to the power button on the case. Using the Soft- Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (you need to hold the button down for 4 seconds before the system turns off). When the system is in 4 sec delay mode, there is a special feature to make the system to go into suspend mode when the button is pressed momentarily.)
