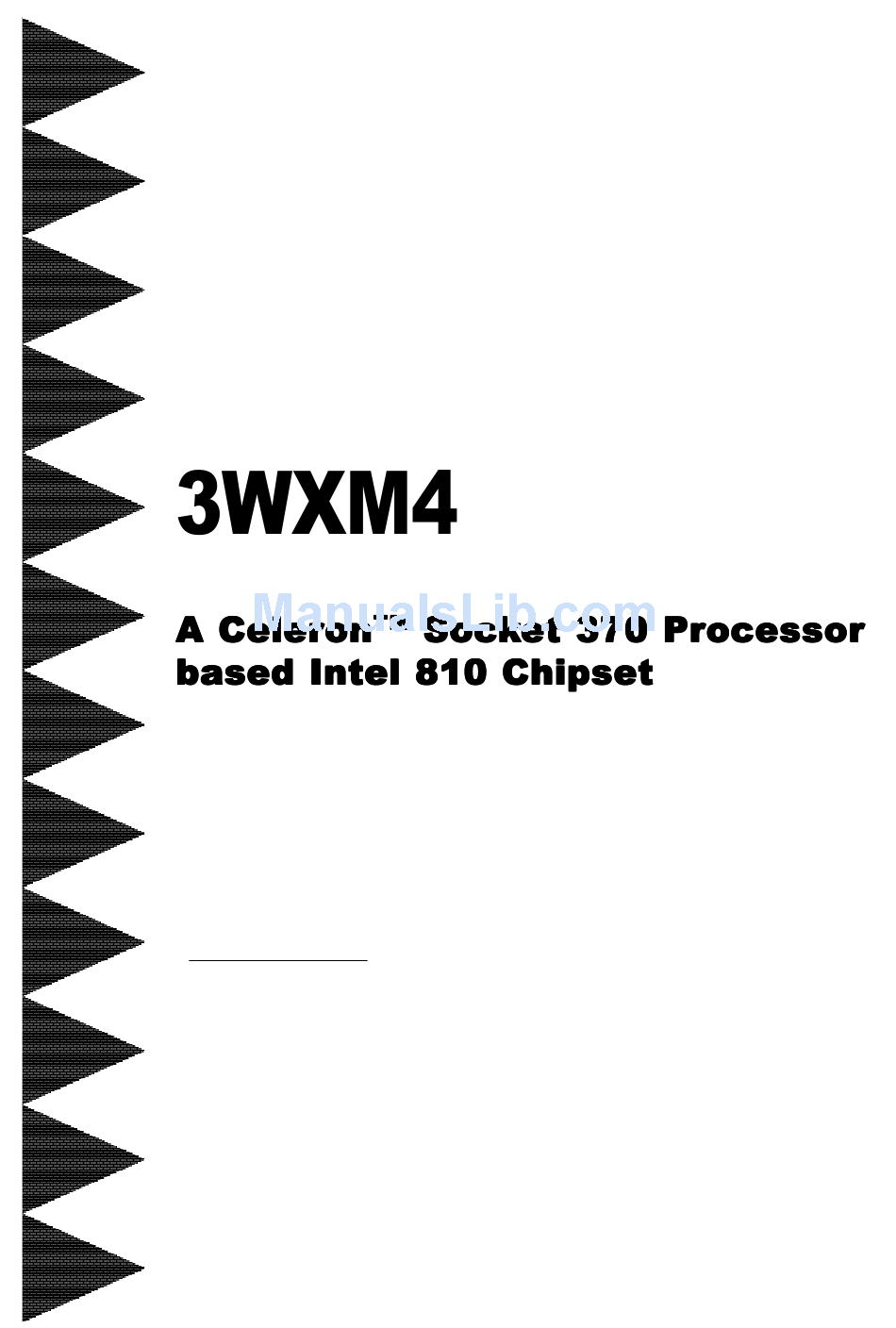

EPOX 3WXM4 Instructions Manual

A celeron socket 370 processor based intel 810 chipset

Advertisement

motherboard (66/100MHz)
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subjected to change without notice.
Manual Revision 3.1
July 7, 1999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3WXM4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EPOX 3WXM4

  • Page 1 motherboard (66/100MHz) TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subjected to change without notice. Manual Revision 3.1 July 7, 1999...
  • Page 2 Supports (3) 32 bit PCI slots, provides (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 66 devices. The 3WXM4 supports (3) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confu- sion when plugging in PCI card(s).
  • Page 3 Features Award Plug & Play BIOS. With 4MB(FWH) Flash Memory you can always upgrade to the current BIOS. • 3WXM4 utilizes a Lithium battery which provides environmental protection and longer battery life. • Supports the Universal Serial Bus (USB) connector. The onboard ICH (82801) chip provides the means for connecting PC peripherals such as;...
  • Page 4 Installation 3WXM4 3WXM4 Detailed Layout Figure 1 Page 4...
  • Page 5 Configure Jumpers to match your hardware System Memory Configuration Device Connectors The 3WXM4 designs all motherboards with the fewest jumpers to make your installation fast and easy. The following will describe all of the jumpers that you are required to set before moving on to step 2.
  • Page 6 Installation 3WXM4 The 3WXM4 supports (2) 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized DRAM). • 100MHz system memory bus frequency. Even if the system host bus is 66MHz. •...
  • Page 7 3WXM4 Installation Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connec- tions (figure 6). parallel port Joystick/Midi PS/2 Mouse USB port PS/2 KEYBOARD COM1 VGA1 Speaker Line_in Figure 6 J2,J3: Chassis Panel Connector •...
  • Page 8 Installation 3WXM4 (This is connected to the power button on the case. Using the Soft- Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (you need to hold the button down for 4 seconds before the system turns off). When the system is in 4 sec delay mode, there is a special feature to make the system to go into suspend mode when the button is pressed momentarily.)
