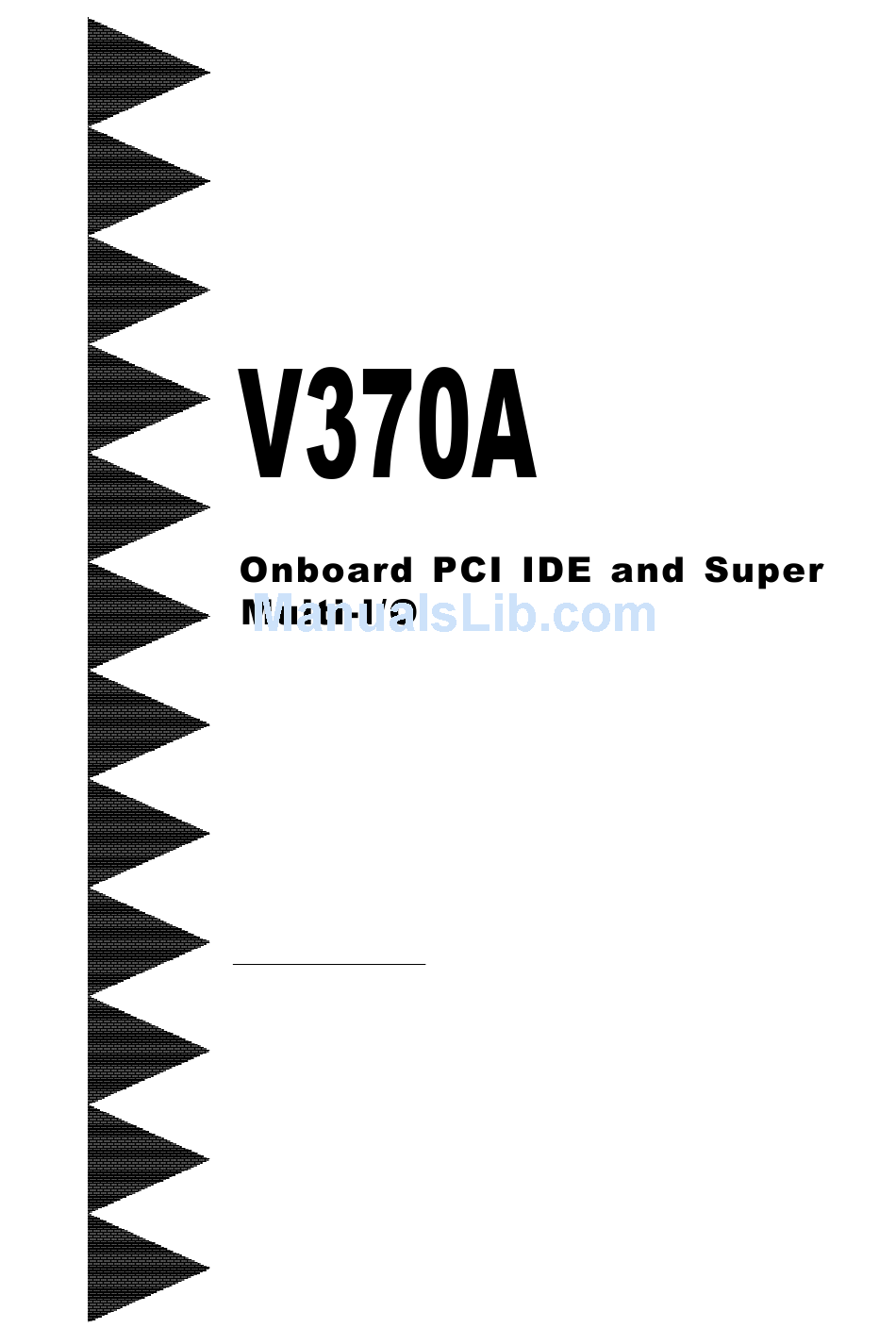

- Page 1 ISA/PCI AGP Motherboard with TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subject to change without notice. Manual Revision 2.0 DEC 30, 1998...
- Page 2 Supports (2) 16 bit ISA slots, (4) 32 bit PCI slots, (1) AGP slot and provides (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 33 devices. The V370A supports (2) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI card(s).
- Page 3 Features V370A • V370A utilizes a Lithium battery which provides environmental protection and longer battery life. • Supports the Universal Serial Bus (USB) connector. The onboard VT82C596 chip provides the means for connecting PC peripherals such as; keyboards, joysticks, telephones, and modems.
- Page 4 Installation V370A V370A Detailed Layout Figure 1 Page 4...
-
Page 5: Installation
V370A Installation The following must be completed before powering on your new system: Configure Jumpers to match your hardware Install memory chips Device Connector We design this motherboard with an ESDJ to make your installation fast and easier. The following will describe all of the ESDJ that you are required to set before moving on to step 2. - Page 6 Installation V370A The V370A supports (3) 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Enhanced Data Out) or SDRAM (Synchronized DRAM). • DIMM SDRAM may be 83MHz (12ns), 100MHz (10ns) or 120MHz (8ns) bus speed. •...
- Page 7 V370A Installation * SDRAM only supports 8, 16, 32, 64, 128, 256MB DIMM modules. Table 1 Page 7...
- Page 8 V370A Installation Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connections (figure 12). 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5...
- Page 9 4 sec delay (you need to hold the button down for 4 seconds before the system turns off). When the system is in 4 sec delay mode, V370A has added a special feature to make the system go into suspend mode when the button is pressed momentarily.
