4. Rotate the table (16) until the
pointer is positioned at 0º.
5. Tighten the mitre locks (18).
6. Loosen the bevel lock (12)
and set the saw arm (5) at
0º bevel (the blade at 90º to
the mitre table). Tighten the

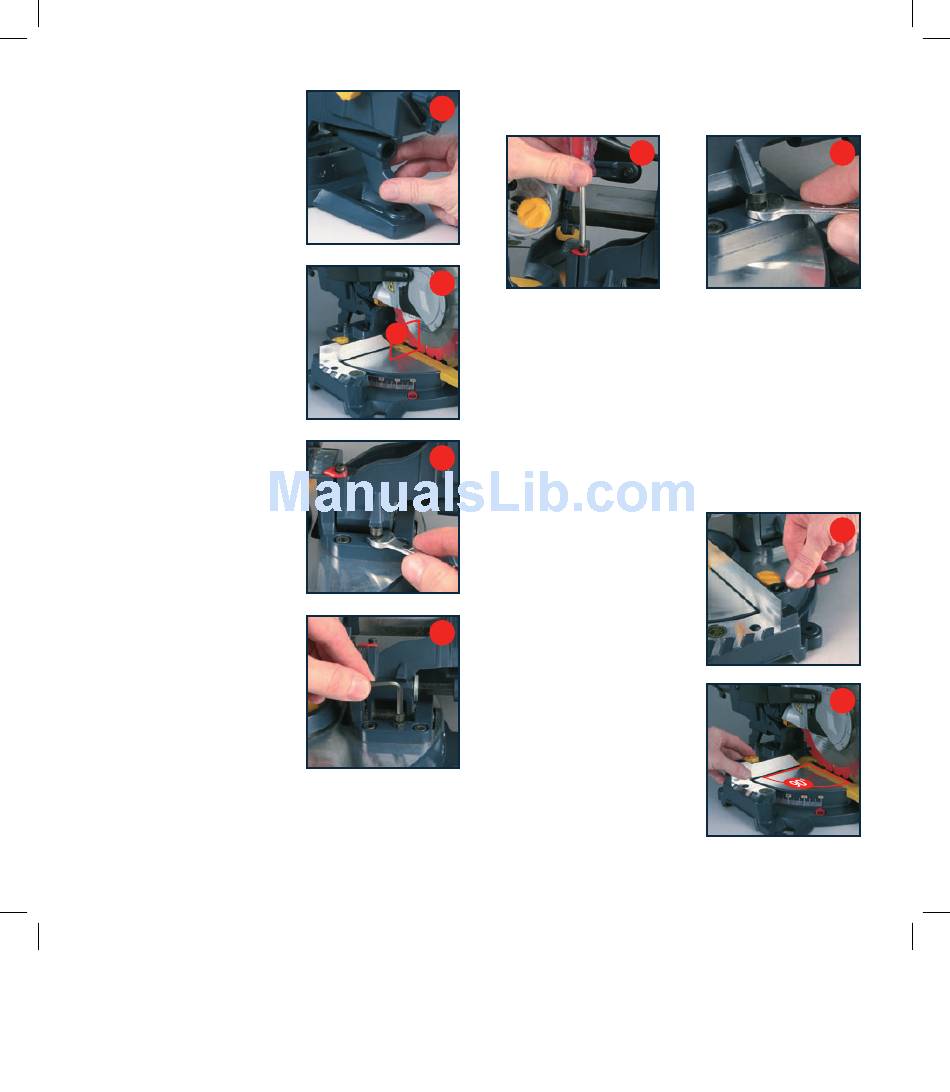

bevel lock (12) (fig. O).
7. Place a set square against the
table (16) and the flat part of
the blade (fig. P).
Note.
Make sure that the square
contacts the flat part of the saw
blade, not the teeth.
8. Rotate the blade by hand
and check the blade-to-table
alignment at several points.
9. The edge of the set square
and the saw blade should be
parallel.
10. If the saw blade angles
away from the set square,
adjust as follows.
11. Use an 8mm wrench or
adjustable spanner to loosen
the lock nut securing the 0°
bevel adjustment screw (15)
(fig. Q). Also, loosen the bevel
lock (12).
12. Adjust the 0° bevel
adjustment screw (15) with
the hex key (fig. R) to bring
the saw blade into alignment
with the square.
13. Loosen the Phillips head screw holding the pointer
of the bevel scale (13) and adjust the position of the
pointer so that it accurately indicates zero on the scale
(fig. S). Retighten the screw.
14. Retighten the bevel lock (12) and the lock nut securing
O
the 0° bevel adjustment screw (15).
P
Note.
The above procedure can also be used to check the
angle of the saw blade to the table at 45º bevel angle. The
90
o
45° bevel adjustment screw (14) is on the opposite side of
the saw arm (fig. T).

Setting the fence square with the table

1. Make sure that the electrical plug is removed from the
power point.
Q
2. Push the saw arm (5) down to its lowest position and
engage the release knob (6) to hold the saw arm in the
transport position.
3. Loosen the mitre locks (18).
4. Rotate the table (16) until the
pointer is positioned at 0º.
5. Tighten the mitre locks (18).
6. Using the 6mm hex key
R
provided, loosen the two
screws securing the fence (19)
to the base (fig. U).
7. Place a square against the
fence (19) and alongside the
blade (fig. V).
8. Adjust the fence (19) until it is
square with the blade.
9. Tighten the screws securing
the fence (19).
11
S
T
U
V
