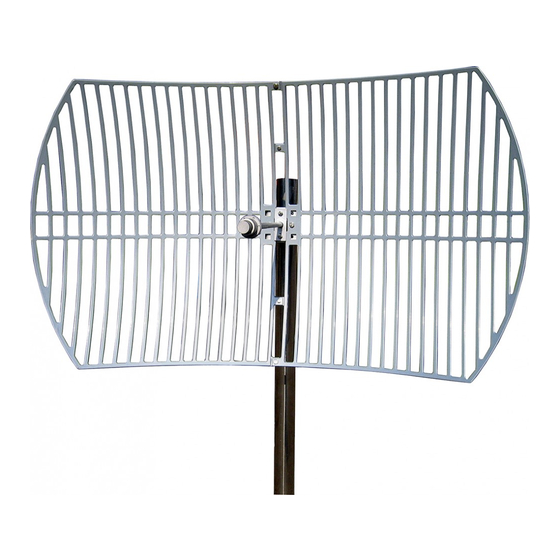

- Page 1 Quick Installation Guide 5GHz 30dBi Outdoor Grid Parabolic Antenna TL-ANT5830B 7106503929 Rev. 1.0.0...
- Page 2 It is usually mounted on such high-level outdoor locations as towers, roofs, etc. The easy way to mount TL-ANT5830B is to bind it to a mast, as illustrated above. TL-ANT5830B is only compatible with 5GHz Access Points.
- Page 3 II. Specifications Electrical Specifications Model TL-ANT5830B Frequency Rang-MHz 5150-5850 Gain-dBi VSWR ≤1.8 Horizontal Beamwidth-° Vertical Beamwidth-° Polarization Vertical or Horizontal F/B Ratio-dB ＞30 Impedance-Ω Maximum Input Power-W Connector N Female Mechanical Specifications Antenna Dimension-mm 600×900 Weight-Kg 3, 5 Mounting Mast Diameter-mm Ø30～Ø50...
- Page 4 III. Radiation Patterns Vertical Pattern Horizontal Pattern...
- Page 5 IV. Installation Please find the necessary accessories in the attachment, and take the following steps to install your antenna TL-ANT5830B. 1. Mount the antenna on the “L” type brackets according to the mounting diagram. Make sure the antenna polarization is parallel to the direction...
- Page 6 ground, the antenna is vertically polarized. When the antenna polarization is horizontal to the ground, the antenna is horizontally polarized. 2. Mount the antenna on the pipe mast according to the mounting diagram. 3. Test the antenna with equipment to make sure the antenna receive the best signal by turning the azimuth and pitching angle, then lock all the screws and seal the connector between antenna and cable.
- Page 7 4. Connect TL-ANT5830B to 5GHz AP (Access Point) interface with cables. It’s recommended to use radio frequency cables with high quality and low loss. Besides, the shorter the cable is, the better it will be to avoid unnecessary loss. Warning: ...
-
Page 8: Technical Support
Technical Support For more troubleshooting help, go to: http://www.tp-link.com/en/support/faq To download the latest Firmware, Driver, Utility and User Guide, go to: http://www.tp-link.com/en/support/download For all other technical support, please contact us by using the following details: Global Australia & New Zealand...
