- Page 1 Quick Installation Guide 5GHz 23dBi Outdoor Panel Antenna TL-ANT5823B 7106503928 Rev. 1.0.0...

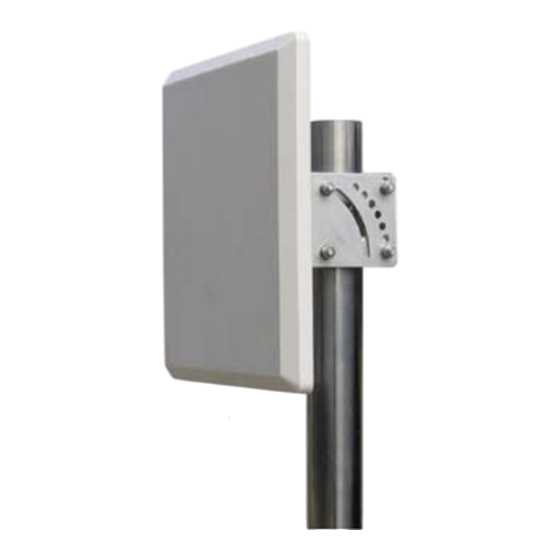

- Page 2 It is usually mounted on such high-level outdoor locations as towers, roofs, etc. The easy way to mount TL-ANT5823B is to bind it to a mast, as illustrated above. TL-ANT5823B is only compatible with 5GHz Access Points. Please do not connect it with 2.4GHz AP.
- Page 3 II. Specifications Electrical Specifications Model TL-ANT5823B Frequency Rang-MHz 5150-5850 Gain-dBi VSWR ≤1.5 Horizontal Beamwidth-° Vertical Beamwidth-° Polarization Vertical or Horizontal F/B Ratio-dB ＞28 Impedance-Ω Maximum Input Power-W Connector N Female Mechanical Specifications Antenna Dimension-mm 320×320×20 Weight-Kg Mounting Mast Diameter-mm Ø30～Ø50...
- Page 4 III. Radiation Patterns Vertical Pattern Horizontal Pattern...
- Page 5 IV. Installation Please find the necessary accessories in the attachment, and take the following steps to install your antenna TL-ANT5823B. 1. Mount the antenna on the “L” type brackets according to the mounting diagram. Make sure the antenna polarization is parallel to the direction you need.
- Page 6 4. Connect TL-ANT5823B to 5GHz AP (Access Point) interface with cables. It’s recommended to use radio frequency cables with high quality and low loss. Besides, the shorter the cable is,...
- Page 7 Warning: Mount the antenna at a safe location, far away from power lines, lamps, and other cables. Do not mount the antenna in the rain or thunder storm. Do not mount the antenna alone. ...
- Page 8 Technical Support For more troubleshooting help, go to: http://www.tp-link.com/en/support/faq To download the latest Firmware, Driver, Utility and User Guide, go to: http://www.tp-link.com/en/support/download For all other technical support, please contact us by using the following details: Global Australia & New Zealand...
