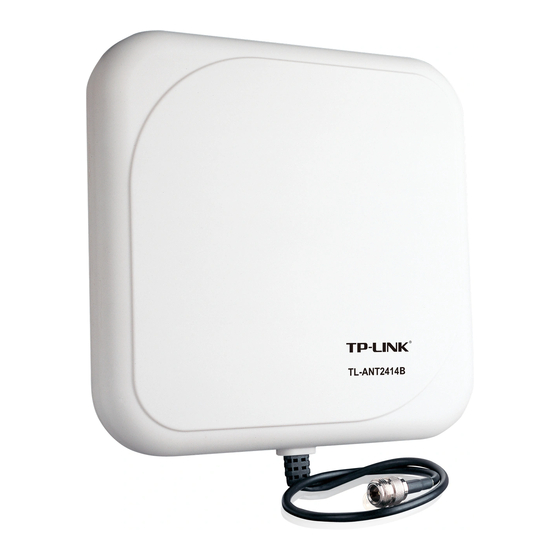

- Page 1 User Guide TL-ANT2414B 2.4GHz 14dBi Outdoor Directional Antenna 71065500 REV:1.0.0...
-
Page 2: Copyright And Trademarks
COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by... -
Page 3: Specification
VSWR: 1.92 Max. Return Loss: -10dB Maximum Radiation: Directional Gain: 14dBi Admitted Power: 1W Physical Properties: Cable: CFD-200 Coaxial Cable Antenna Cover: ABS Operating Temp: -20℃ ~ +65℃ Storage Temp: -30℃ ~ +75℃ Color: Gray Connector: N-Type Jack (Female) Website: http://www.tp-link.com... -
Page 4: Field Pattern
Field Pattern... -
Page 5: Installation
Installation There are two methods to install the antenna: 1. Wall Mounting ① Antenna 1 pc ② Holder 2 pc ③ Screws 8 pcs ④ Plastic Fixings 4 pcs ⑤ Sticker 1 pc... - Page 6 2. Pole Mounting ① Antenna 1 pc ② Holder 2 pc ③ Screws 4 pcs ④ Hose Clamp 2 pc...
