Electrical Specifications
Frequency Range
2.4GHz ~ 2.5GHz
Impedance
50Ω
G
a
n i
2
4
d
VSWR
≤1.5
Horizontal Beamwidth
14°
Vertical Beamwidth
10°
F/B Ratio
＞30dB
Polarization
Vertical or Horizontal
Maximum Input Power
100W
Connector
N Female
Application
Outdoor
Mount Style
Pole Mount / Wall Mount
Mechanical Specifications
Antenna Dimension
600×1000 mm
Weight
3.5 +/-0.15 KG
Mounting Mast Diameter
Ø30~Ø50 mm
Rated Wind Velocity
216 Km/h
3
i B
User Guide
TL-ANT2424B

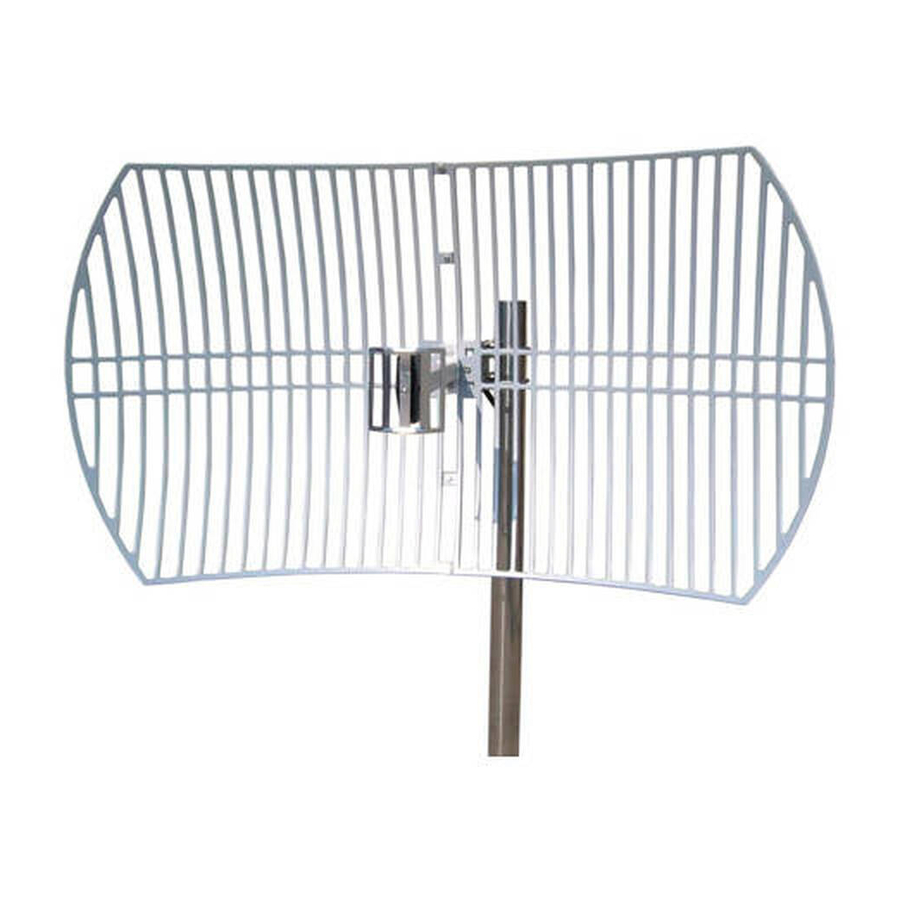

24dBi 2.4GHz Grid Parabolic Antenna
Rev:1.0.0
7106500760
