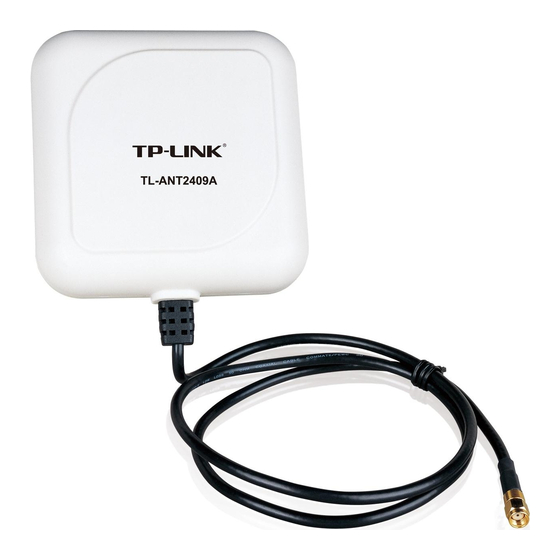

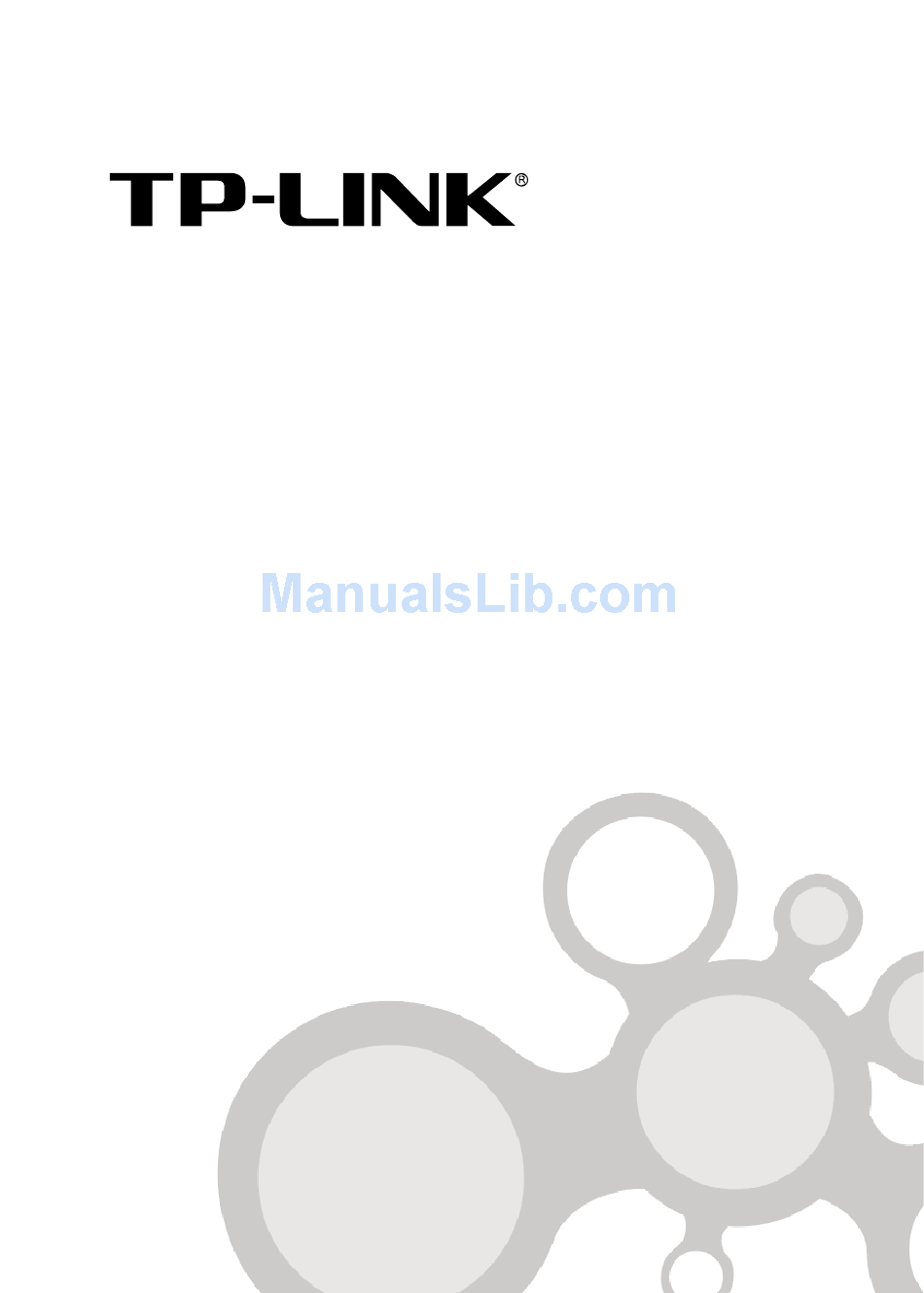

- Page 1 User Guide TL-ANT2409A 2.4GHz 9dBi Directional Antenna Rev:1.0.1 7106501512...
-
Page 2: Copyright And Trademarks
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2009 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. -
Page 3: Specification
VSWR: 1.92 Max. Return Loss: -10dB Maximum Radiation: Directional Gain: 9dBi Admitted Power: 1W Physical Properties: Cable: CFD-200 Coaxial Cable Antenna Cover: ABS Operating Temp: -20℃ ~ +65℃ Storage Temp: -30℃ ~ +75℃ Color: Gray Connector: RP-SMA Plug (male) Website: http://www.tp-link.com... - Page 4 Field Pattern...
-
Page 5: Installation
Installation There are two methods to install the antenna: 1. Wall Mounting ① Antenna 1 pc ② Holder 1 pc ③ Screws 4 pcs ④ Plastic Fixings 2 pcs ⑤ Sticker 1 pc... -
Page 6: Pole Mounting
2. Pole Mounting ① Antenna 1 pc ② Holder 1 pc ③ Screws 2 pcs ④ Hose Clamp 1 pc...
