Summary of Contents for GMC LS620SR

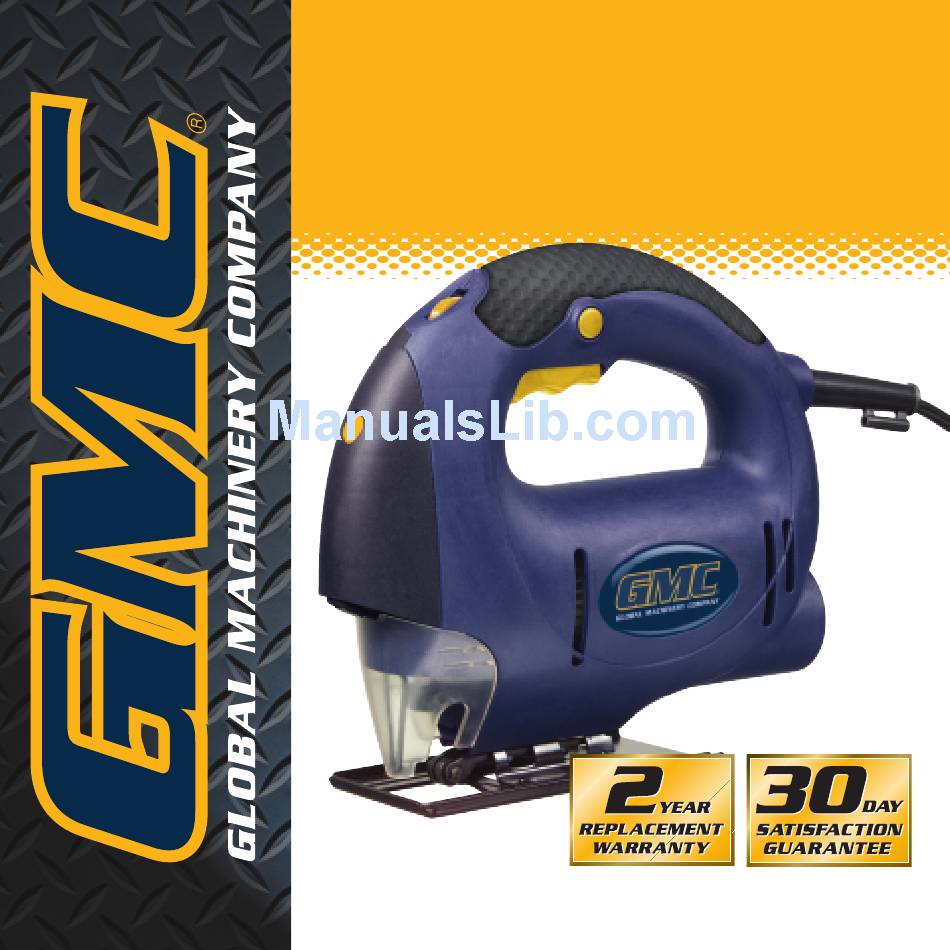

- Page 1 I N S T R U C T I O N M A N UA L 620W Variable Speed Jigsaw with LightSabre • London • Melbourne • Perth • Taipei • Verona • Hong Kong • New York • Auckland • Paris LS620SR 020919 LS620LSR ED9...
-
Page 2: Table Of Contents
Contents Introduction Environmental protection Symbols Specifications Safety rules for laser lights General safety instructions Additional safety rules for jigsaws Unpacking Know your product Adjusting the shoe for angular cutting Dust extraction Switching on and off Adjusting the cutting speed Making a cut Pocket and round cutting Pocket cutting Cutting metal... -
Page 3: Dear Customer
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information: please phone our Help Line for an immediate response. The appropriate number is given on the rear page of this manual. -
Page 4: General Safety Instructions
• The laser shall be used and maintained in accordance with the manufacturer’s instructions. • Never aim the beam at any person or an object other than the work piece. • The laser beam shall not be deliberately aimed at personnel and shall be prevented from being directed towards the eye of a person for longer than 0.25s. -
Page 5: Additional Safety Rules For Jigsaws
Keep the shoe flat on the work piece. • Do not put pressure on the saw, such that it slows the motor down. Allow the saw blade to cut without pressure. You will get better results and you will be taking better care of your tool. -
Page 6: Unpacking
• Do not secure the jigsaw upside down in a vice or work bench and use it as a saw bench. This can lead to serious injury. • When using the jigsaw, use safety equipment including safety goggles or shield, ear defenders, dust mask and protective clothing including safety gloves. -
Page 7: Know Your Product
Know your product Before using the jigsaw, familiarise yourself with all the operating features and safety requirements. Use the tool and accessories only for the applications intended. All other applications are expressly ruled out. 1. Laser light assembly 9. Dust extraction outlet 2. -
Page 8: Adjusting The Shoe For Angular Cutting
Adjusting the shoe for angular cutting Caution. Always ensure that the jigsaw is switched off and plug is removed from the power point before making any adjustments. 1. Loosen the 2 hex screws located on the underside of the tool using the hex key provided. -
Page 9: Making A Cut
3. Do not force the jigsaw. Note. Use only enough pressure to keep the blade cutting. Do not force the cutting, allow the blade and the saw to do the work. Pocket & round cutting 1. When starting a cut from the centre of a work piece, drill a 12mm diameter hole to ensure that there is clearance for the blade. -
Page 10: Using The Lightsabre System
3. Tighten the 2 hex screws. 4. Replace the plug and run the saw under no load to check that it runs smoothly before using it to cut any materials. Using the LightSabre system Warnings. Do not stare directly at the laser beam. - Page 11 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
