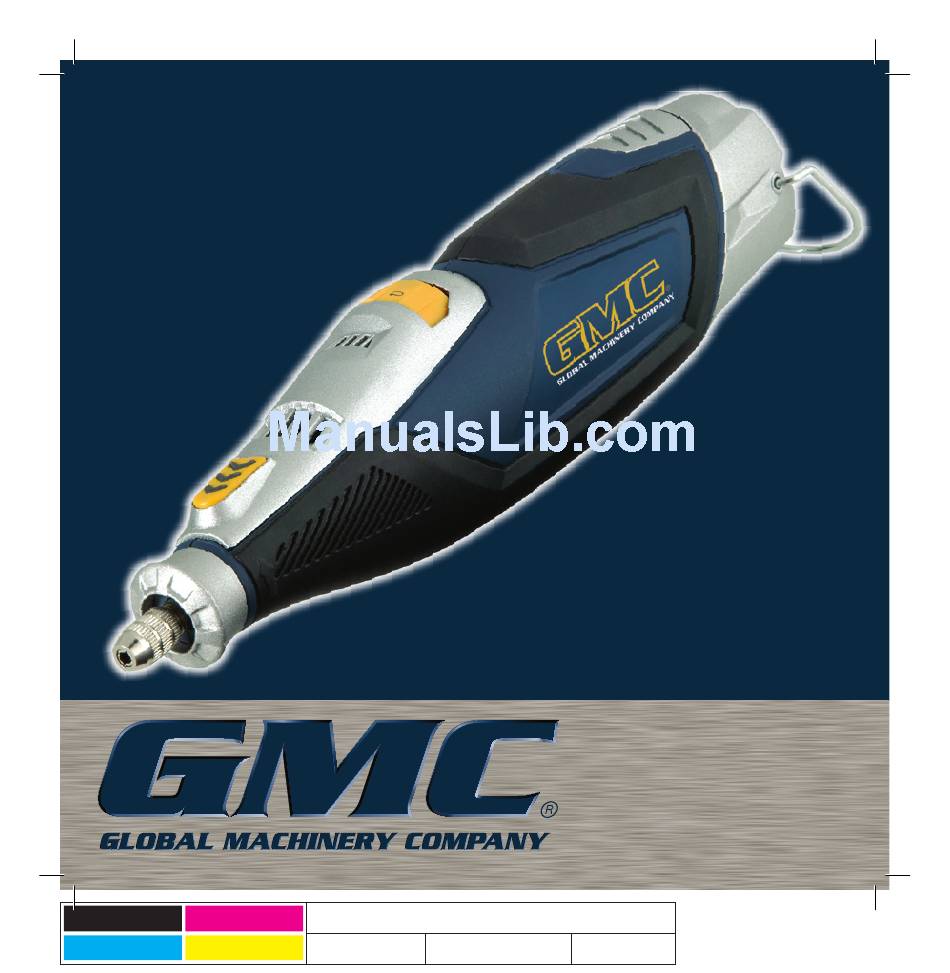

- Page 1 9.6V CORDLESS MULTI-FUNCTION ROTARY TOOL DEC004DC INSTRUCTION MANUAL Black Magenta Code: DEC004DC Cyan Yellow Date: 061012 Edition: 08 Op: PW...
-
Page 2: Table Of Contents
Additional safety instructions for rotary tools Additional safety instructions for the charger Additional safety instructions for the battery pack Know your product Unpacking Accessories Accessories for DEC004DC Fitting and removing the battery pack Battery charging Obtaining the longest life from the battery Operation Switch on... -
Page 3: Introduction
Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 4: General Safety Rules
General safety rules WARNING. Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 5: Additional Safety Instructions For Rotary Tools
c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. -
Page 6: Additional Safety Instructions For The Charger
• Only use accessory bits in good condition. • Before drilling, check that there is sufficient clearance for the drill bit under the workpiece. • Do not touch the attachments after operation. They may be very hot. • Keep your hands away from spinning parts. •... -
Page 7: Additional Safety Instructions For The Battery Pack
Additional safety instructions for the battery pack • The battery pack for this tool has been shipped in a low charge condition. You should charge the battery pack fully before use. • To ensure the longest battery life and best battery performance, always charge the battery when the air temperature is between 18–24°C. -
Page 8: Know Your Product
Know your product This DEC004DC Rotary Tool can be used for Grinding, Polishing, Drilling, Cutting, Sharpening, Engraving and Sanding. Use the tool and accessories only for intended applications. All other applications are expressly ruled out. 1. On/Off Switch / Variable Speed Dial 2. -
Page 9: Unpacking
Ø20mm Red sanding sheets Ø15mm Sanding bands Ø24 x 0.6mm Cut-Off Wheel Ø2.4mm Ball-shaped cutter Accessories The GMC DEC004DC comprises the following components: 1 x Instruction manual 1 x 2-in-1 wrench 1 x Flexible shaft 1 x Height adjustable mounting stand... - Page 10 Accessory Description Qty Accessory Use Accessory Description Qty Accessory Use Ideal for removing rust, smoothing out imperfections or cleaning tools. Ø3.2mm Cup-shaped bristle brush An extremely convenient way to drill holes with more detail and precision. Ø3.2mm High speed drill bit Bullet-shaped polishing point Ideal for polishing most metal surfaces...
-
Page 11: Fitting And Removing The Battery Pack
Fitting and removing the battery pack To remove the battery pack (7) from the rotary tool, firmly press the release tabs (6) on the upper and lower sides of the battery pack, and slide the battery pack backward out of the tool (fig. A). Similarly, to install the battery pack, slide the pack fully into the tool until it “clicks”... -
Page 12: Switch On
Switch on 1. Turn the On/Off switch (1) anti-clockwise until it “clicks” into position number ‘1’. The machine is now in continuous operation, and will start on the minimum speed (fig. D). Switch off 1. Turn the On/Off switch (1) clockwise until it “clicks”... -
Page 13: Changing Accessories
2. Remove the collet (5) and replace with the desired collet (fig. F). The size of the collet will depend on the shaft diameter of the accessory to be used. 3. Press the spindle lock button (2) and hand tighten the collet nut (3) by turning it in a clockwise direction. -
Page 14: Attaching The Flexible Shaft
Attaching the flexible shaft WARNING. Never bend the flexible shaft with a radius of less than 150mm (6”) when operating. Please store the flexible shaft in the designated compartment of the carry case when not in use. 1. Remove the collet cover (4) and then loosen the collet nut (3) by turning them anti- clockwise (fig. -
Page 15: Maintenance
3. Loosen the shaft by turning anti-clockwise (as indicated on the shaft). Extend the shaft to the desired height and lock it into place by turning the shaft clock-wise (fig. Q). 4. Use the wire loop (8) to hang the rotary tool when using the flexible shaft. - Page 16 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
