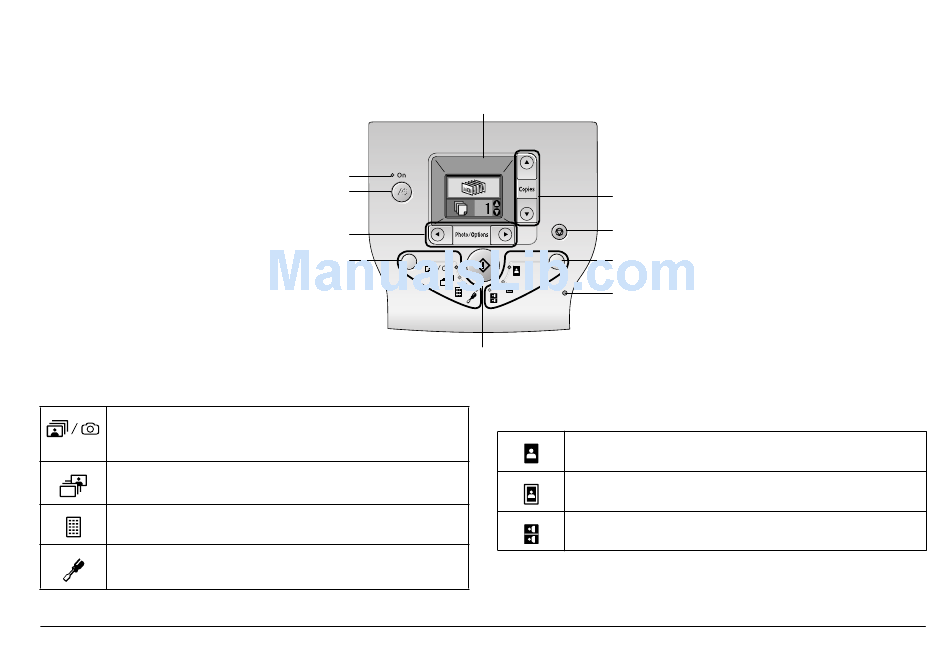

Get to know your PictureMate
Control Panel
Photo/Options button
Pressing the Mode button will change the following options.
Print all the photos, print photos pre-selected in your digital
camera when DPOF information is stored on the memory
card, or print directly from a digital camera.
Print selected photos.
Print an index of all the photos.
Display setup and maintenance options.
Power light
On button
Mode button
LCD panel
Copies button
Cancel button
Layout button
Memory card light
Start button
Pressing the Layout button will change the following layout
options.
Print without margins.
Print with margins.
Print 2 per sheet without margins.
