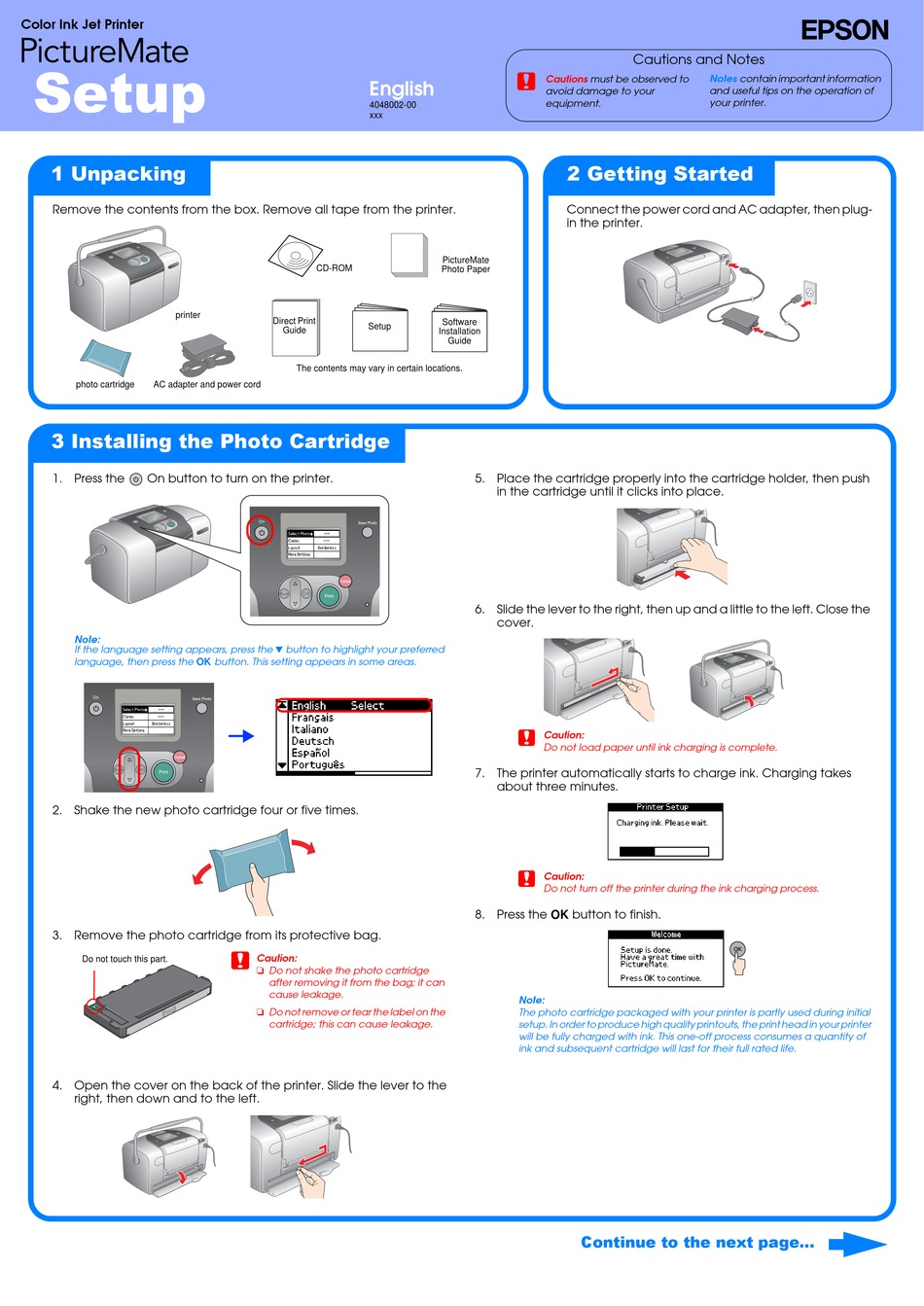

Epson PictureMate Setup

Color Ink Jet Printer
Setup

1 Unpacking

Remove the contents from the box. Remove all tape from the printer.
printer
photo cartridge AC adapter and power cord

3 Installing the Photo Cartridge

1. Press the On button to turn on the printer.
Note:
If the language setting appears, press the d button to highlight your preferred
language, then press the OK button. This setting appears in some areas.
2. Shake the new photo cartridge four or five times.
3. Remove the photo cartridge from its protective bag.
.
Do not touch this part.
4. Open the cover on the back of the printer. Slide the lever to the
right, then down and to the left.
English
4048002-00
xxx
CD-ROM
Direct Print
Setup
Guide
The contents may vary in certain locations.
c
Caution:
Do not shake the photo cartridge
after removing it from the bag; it can
cause leakage.
Do not remove or tear the label on the
cartridge; this can cause leakage.
c Cautions must be observed to
avoid damage to your
equipment.

2 Getting Started

Connect the power cord and AC adapter, then plug-
in the printer.
PictureMate
Photo Paper
Software
Installation
Guide
5. Place the cartridge properly into the cartridge holder, then push
in the cartridge until it clicks into place.
6. Slide the lever to the right, then up and a little to the left. Close the
cover.
c Caution:
Do not load paper until ink charging is complete.
7. The printer automatically starts to charge ink. Charging takes
about three minutes.
Caution:
c
Do not turn off the printer during the ink charging process.
8. Press the OK button to finish.
Note:
The photo cartridge packaged with your printer is partly used during initial
setup. In order to produce high quality printouts, the print head in your printer
will be fully charged with ink. This one-off process consumes a quantity of
ink and subsequent cartridge will last for their full rated life.
Continue to the next page...
Cautions and Notes
Notes contain important information
and useful tips on the operation of
your printer.
