BT Diverse 2010 User Manual

British telecommunications (bt) user guide digital cordless telephone diverse 2010
Hide thumbs Also See for Diverse 2010:
Table of Contents

Advertisement

Quick Links

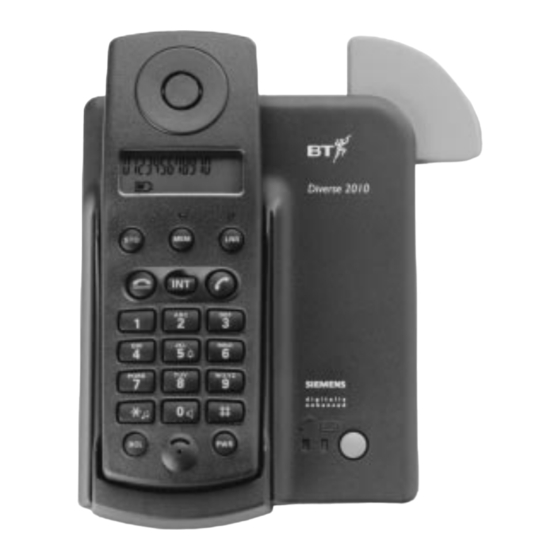

Diverse 2010

Digital Cordless Telephone

User guide
This equipment is not designed for making emergency telephone calls when the power fails.
Alternative arrangements should be made for access to emergency services.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diverse 2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BT Diverse 2010

Summary of Contents for BT Diverse 2010

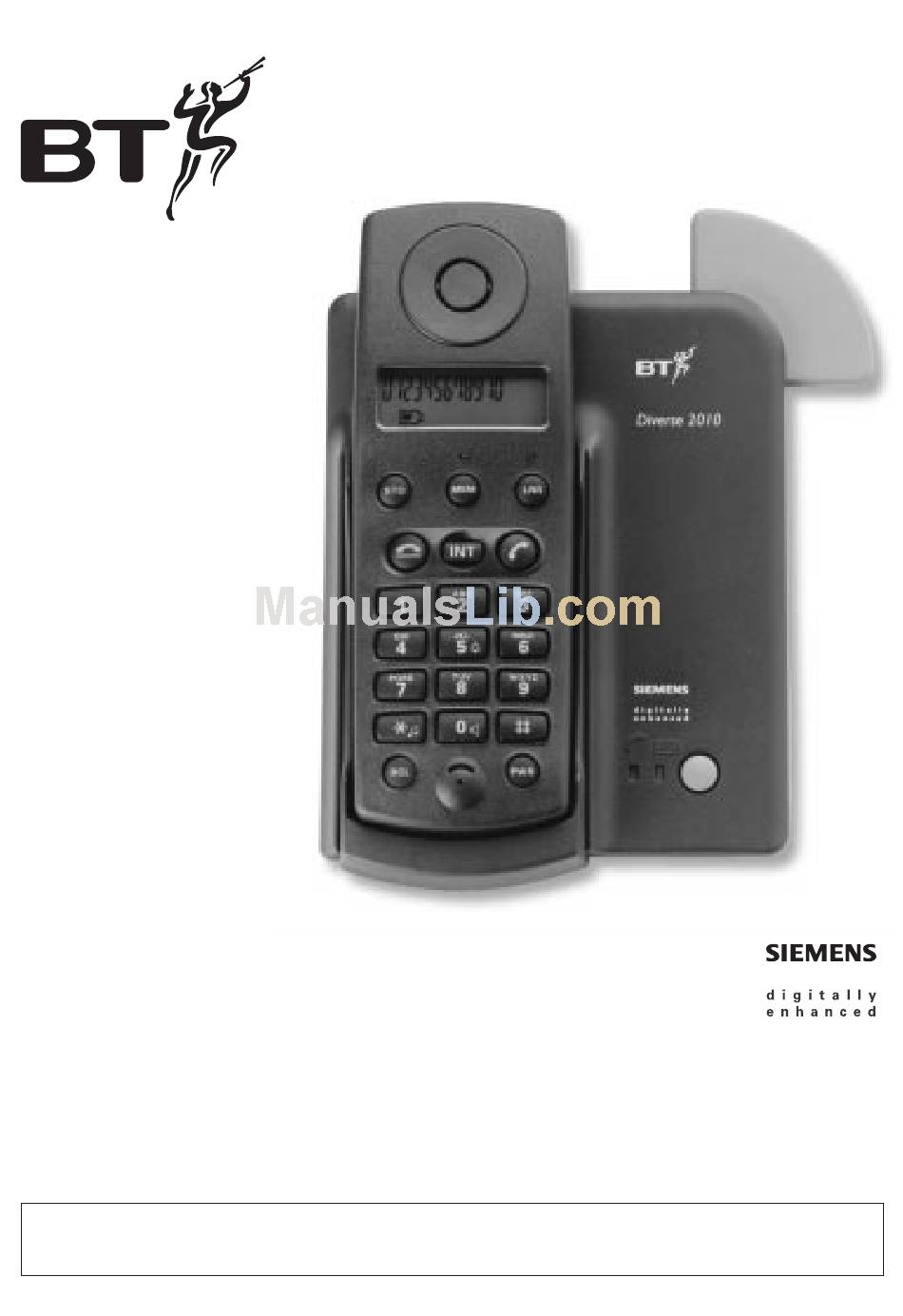

  • Page 1: Digital Cordless Telephone

    Diverse 2010 Digital Cordless Telephone User guide This equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.
  • Page 2 Check that your Diverse 2010 is complete. When you unpack you should have: • Diverse 2010 base station. • Diverse 2010 handset. • Power adaptor. • Handset belt clip. • Two nickel cadmium (Ni-Cad) rechargeable batteries. • Telephone line cord.
  • Page 3 End call Used to end a call Intercom Enables internal communication and call transfer between handsets Recall For use with switchboards and BT Select Services PQRS WXYZ Belt clip Memory speed dial Enables quick dialling of numbers stored in the memory...

  • Page 4: At A Glance

    In-use light Indicates an outside call is being made Base station top view Diverse 2010 Charging light On when handset battery is charging (may occasionally be off during standard charging time, as charge level is adjusted) Pager For paging all handsets...
  • Page 5 Power cord Telephone line cord Base station underside view ....... . .

  • Page 6: Table Of Contents

    In this guide At a glance Introduction Setting up Using your Diverse 2010 Additional features Using your Diverse 2010 with a switchboard Registering a new Diverse handset with the base station Operating with additional base stations Maintenance Help Technical information...

  • Page 7: Building Up A Phone System

    Although this user guide applies to both single and multiple handset systems, some functions described in this guide apply only to Diverse 2010 phones with more than one handset connected. As this product is rechargeable, it is normal that a certain amount of heat will be produced in its day-to-day operation.

  • Page 8: Setting Up

    Setting up Follow these steps to get your Diverse 2010 ready for use. Warning For the handset use only approved nickel- cadmium (NiCad) rechargeable batteries. Never use other batteries or conventional alkaline batteries. They could lead to a short circuit or destroy the battery casing.

  • Page 9: Base Station

    Plan where you will put your Diverse 2010. It should be within two metres of a power socket and the phone socket. 1. Connect the power cable. Plug the power cable into the power socket on the underside of your Diverse 2010.
  • Page 10 4 Plug your Diverse 2010 into the phone socket If you do not have a modern phone socket, call Freefone 0800 800 150 and ask for a BT engineer to come and fit the correct socket. This is a chargeable service. WARNING...

  • Page 11: Charge The Handset

    It will come on again occasionally to indicate that the battery is being topped up. When the handset battery has been charged for 16 hours, the Diverse 2010 is ready to use. Battery performance After charging your Diverse 2010 for the first time, subsequent charging time for the handset batteries is approximately 4-5 hours.
  • Page 12 26. All additional handsets you purchase will need to be individually registered with the base station before they will work with the Diverse 2010. symbol may also f lash after a power failure. Provided the handset has been registered with the base, the...

  • Page 13: Using Your Diverse 2010

    Using your Diverse 2010 On/Off and Protected modes The handset can be set to one of three different modes. Your handset’s display will indicate which mode it is currently in, as shown below. Phone calls cannot be made and the handset does not respond to incoming calls.

  • Page 14: Making And Receiving Calls

    • To end the call, press the button or replace the handset on the base. Call timer Your Diverse 2010 automatically times the duration of all external calls. The handset display shows the call duration both during your call and for a few seconds after it is completed.

  • Page 15: Making And Transferring Calls Between Handsets

    Making and transferring calls between handsets If you have multiple handsets registered with the base, the Diverse 2010 enables two handsets to talk to each other on an internal ‘intercom’ call, while a third handset can be on an external call.
  • Page 16 To put an outside caller on hold and speak to another internal handset • Press the button. You hear the internal dial tone and your outside caller is put on hold. Your caller will hear ‘music on-hold’. • Press the handset number you want, .

  • Page 17: Using The Memory

    Using the memory to store and dial numbers Your Diverse 2010 handset can store 10 phone numbers, each up to 22 digits long, which can then be speed dialled. Stored numbers can include settings made with the You can also enter a ‘pause’ (see page 24, ‘Using your Diverse 2010 with a...

  • Page 18: Additional Features

    1. Setting to Tone or Pulse dialling Your Diverse 2010 is pre-set to TONE dialling – you will hear a tone beep each time you dial a number. Tone dialling is suitable for all modern digital exchanges.

  • Page 19: Handset Pin

    If you change your handset PIN, keep a record of the new number in the box provided at the front of this user guide. To change a system code for the Diverse 2010 base station This protects your settings and helps prevent unauthorised handsets using your system.

  • Page 20: Adjusting Volumes And Tones

    3. Adjusting volumes and tones It is possible to set and adjust the various tones emitted by your Diverse 2010 base station and your handset. To adjust the ringer volume in the handset. There are six levels: 1 = low, 6 = high.
  • Page 21 To adjust the ringer volume in the base station There are seven levels: 0 = off, 6 = high. (Standard setting is 6.) • Press the button. • Press the button. • Press the button. • Press the button. Display shows the volume level set.
  • Page 22 ‘Settings confirmation’ tone You will hear a confirmation tone each time you successfully complete a setting. You can turn this sound on and off. (The standard setting is ON.) PQRS • Press the button. • Press then . Display shows the current setting: 1 = ON, 0 = OFF •...
  • Page 23 To reset your Diverse 2010 base station to the original settings This will reset: – TONE/PULSE signalling to TONE. – Access code/pause to NONE. – Pause after the RCL key to NONE. – Ring assignment to group ringing. It will also delete any new settings made for: connections to a switchboard.
  • Page 24 This is called group ringing. Ring priority Your Diverse 2010 can be set so that an incoming call will ring first at a preferred handset. If there is no answer, the call will revert to all other handsets. This is called ring priority.
  • Page 25 To set which handset will receive ring priority Once you have set your Diverse 2010 to ring priority mode (see above), you can select the handset you want to ring first. • Press the button. • Press the button. • Press the button.

  • Page 26: Call Barring

    6. Call barring Emergency Services 999 and 112 calls can still be made. From switchboards you can dial access code 9 followed by 999 or 112, button 999 or button 112. To bar and cancel an individual handset from making external calls You can lock your handset and bar all outgoing calls.

  • Page 27: Using Your Diverse 2010

    Access codes can be up to three digits long (select your codes from any number between buttons). Your Diverse 2010 can store up to three switchboard access codes. To insert an access code The handset must be switched ON. • Press the •...
  • Page 28 • Press the button. • Enter one of the three digit codes above to set the length of pause you want. • Press the button to confirm. If you are experiencing problems, please call the Diverse Helpline on 0345 908070 BT on...

  • Page 29: Additional Handset

    2000 Additional Handset with the base station Up to six handsets can be registered and operated from the Diverse 2010 base station. The system allows you to make internal intercom calls between two handsets while a third is making an external call.
  • Page 30 Please Note Diverse 1000 Handsets will not work on the Diverse 2010 base. But Diverse 1010/1015 Additional and Executive Handsets are compatible with the Diverse 2010 and Diverse 2015. To remove a handset registered at the base station These steps can be taken from any registered handset.

  • Page 31: Operating With Additional Base Stations

    Operating with additional base stations It is possible to build your Diverse 2010 into a much larger phone system with the addition of up to 3 extra base stations. When planning to use a handset at more than one base station, it is recommended that you: •...
  • Page 32 At the base station: • Press and hold down the paging button until you hear the beeps (after about 10 seconds). You now have up to 1 minute to register the handset, during which the beeps will continue. At the handset: •...
  • Page 33 The handset must be switched ON. • Press the button. • Press the button. Display shows the numbers of the base stations at which the handset is registered. • Press the button to set automatic selection. • Press the button to confirm. The handset will now select the base offering the strongest signal.

  • Page 34: Maintenance

    12-month period. Please ask them for details. Outside the warranty period If your Diverse 2010 needs repair after the warranty period has ended, the repair must meet the approval requirements for connection to the telephone network.

  • Page 35: Help

    UK by dialling 999, or 112 in any country that is a member of the European Community. If your Diverse 2010 is connected to a switchboard, you may have to dial an access number before 999 to contact the emergency services.

  • Page 36: When Connected To A Switchboard

    Diverse Helpline and your local BT shop. 0345 908070 BT accepts no responsibility for damage caused to your Diverse 2010 handset by the use of non-approved batteries. No display appears Is the handset switched on? The battery may be flat or dead.

  • Page 37: Technical Information

    BT may be assumed to have a REN of 1 unless stated otherwise. A total REN of 4 is allowed. (For example: if Diverse 2010 is used in conjunction with three extension telephones, each with a REN of 1, the total REN is 4.)

  • Page 38: Technical Specification

    Approx. 160 x 55 x 25 (L x W x H) Base station: 210g Mobile station: 165g Approx. 5 hours Telephone line approx. 3m Power cable approx. 3m BT-plug TSV 6/4 (telephone line cord) TSV 6/4 (power cable) BT-plug (power adaptor)

  • Page 39: Index

    Protect keypad Pulse dialling Quick call transfer Receiving calls Redial Registering with base station handset removing Reset base station handset Returning your Diverse 2010 Ring priority Secrecy Security code Service Setting up Switchboards Technical information Tone dialling Tones battery warning tone...
  • Page 40 Offices in Europe, North America, Japan and Asia Pacific. The Telecommunications services described in this publication are subject to availability and may be modified from time to time. Services and equipment are provided subject to British Telecommunications plc’s respective standard conditions of contract. Nothing in this publication forms any part of any contract.
