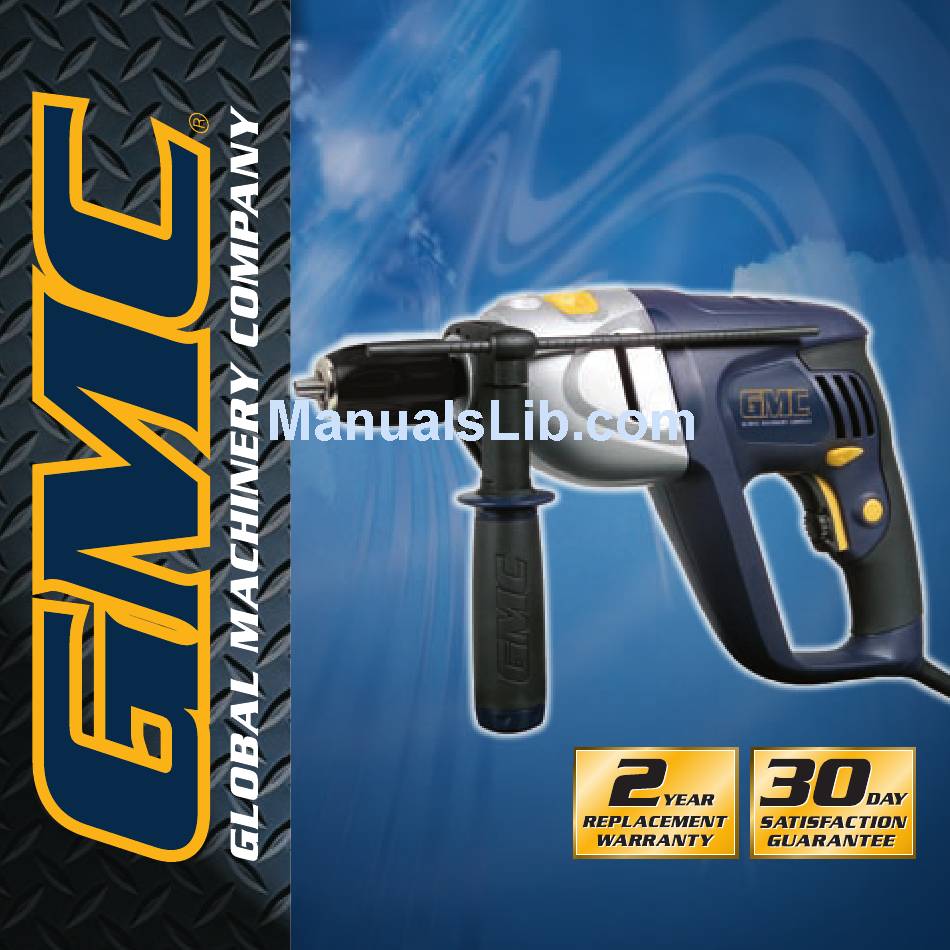

- Page 1 INSTRUCTION MANUAL 1400W 13mm Hammer Drill • Melbourne • Perth • Auckland • Hong Kong • Shanghai • Taipei • New York • Verona • London • Paris HD1400K 040413 HD1400K ED5...
-
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications Safety instructions Additional safety rules for drills Know your product Unpacking Auxiliary handle and depth gauge Inserting and removing bits Operation Variable speed trigger switch Speed adjustment Reversing the direction of rotation Drilling/hammer mode selector Chuck replacement Hints for use... -
Page 3: Introduction
Dear Customer If you require any help with your product, whether it is a Warranty claim, spare part or user information, please phone our Help Line for an immediate response. Phone 1300 880 001 in Australia or 0800 445 721 in New Zealand. -
Page 4: Safety Instructions
Safety instructions WARNING. Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Save these instructions Work area •... - Page 5 • Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 6: Additional Safety Rules For Drills
Ensure that the lighting is adequate. • Do not put pressure on the drill, such that it slows the motor down. Allow the drill bit to cut without pressure. You will get better results and you will be taking better care of your tool. -
Page 7: Know Your Product
Know your product 1. 13mm Single sleeve keyless metal chuck 2. Over-moulded auxiliary handle 3. Depth gauge 4. Drilling/hammer mode selector 5. Lock-on button 6. Forward/Reverse switch 7. Variable speed trigger switch 8. Speed dial 9. Spindle lock button 10. Metal gear box cover... -
Page 8: Unpacking
Always ensure that the drill is switched off and plug is removed from the power point before making any adjustments. 1. The drill features a keyless chuck (1) and spindle lock button (9) for greater convenience of use. 2. To insert a drill bit or other... -
Page 9: Operation
Drilling/hammer mode selector You can use the drill for both hammer action and normal drilling. 1. Use the drilling/hammer mode selector (4) to select hammer or drill action. -
Page 10: Chuck Replacement
Hints for use Note. When drilling into masonry the drilling rate is fast and burnout of the tip will occur if the drill bit is not constantly cleared. • Use only correctly sharpened drill bits, which are suitable for the material being drilled. -
Page 11: Drilling -Wood/Metal/Masonry
Produce off-centre or irregular shaped holes • When drilling large holes in metal it is recommended to drill with a small bit at first, then finish with a larger bit. Also, lubricate the bit with oil to improve drilling action and increase bit life. - Page 12 Carefully read the entire Instruction Manual Before returning this product for a Warranty Claim or any other reason Please Call 1300 880 001 (Australia) or 0800 445 721 (New Zealand) When you make your call, please have the following information at hand: •...
