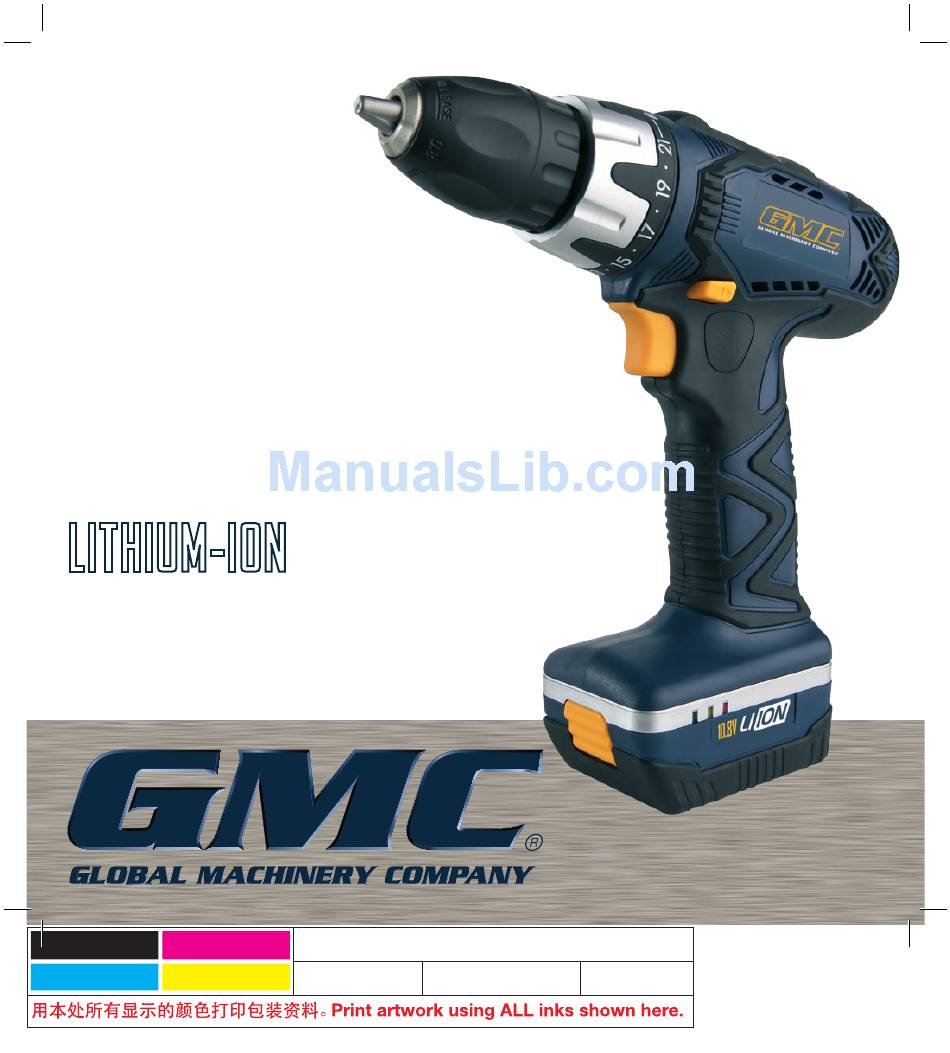

- Page 1 10.8V LITHIUM-ION LITHIUM-ION CORDLESS DRILL/DRIVER LD108V INSTRUCTION MANUAL Black Magenta Code: LD108V Cyan Yellow Date: 071015 Edition: 05 Op: DCR...
-
Page 2: Table Of Contents
Fitting and removing the battery pack Battery charging Battery indicator while charging To obtain the best life for the battery Battery indicator Battery indicator under no-load Using the drill Drilling Chuck replacement Maintenance Warranty Power Tools Whilst every effort is made to ensure your complete... -
Page 3: Introduction
Specifications Nominale battery charge: 10.8V Charger: 230 – 240V ~ 50Hz 16W Charging time: 3 – 5 Hour Drill no load speed: 0 – 600min Torque settings: 22 Positions Drill chuck capacity: 0.8-10mm Keyless Weight: 1.5kg Drilling capacity:... -
Page 4: Safety Instructions
Safety instructions WARNING. Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 5: Additional Safety Instructions For Drills
Ensure that the lighting is adequate. • Do not put pressure on the drill, such that it slows the motor down. Allow the drill bit to cut without pressure. You will get better results and you will be taking better care of your tool. -
Page 6: Additional Safety Instructions For The Charger
• Support the work properly. • If you are interrupted when operating the drill, complete the process and switch off before looking up. • Periodically check that all nuts, bolts and other fixings are properly tightened. -
Page 7: Additional Safety Instructions Related To The Battery Pack And Battery Safety
• Do not plug anything other than your GMC tool into the charger, as other objects may touch dangerous voltage points or short out parts, which could result in fire or electric shock. • Do not place the tool or charger on an uneven surface, as a fall may cause serious damage. -
Page 8: When To Charge The Battery
according to the instructions in the GMC Instruction Manual. • Do not charge the battery in a place where static electricity is generated nor let the battery touch something that is statically charged. • The battery can be stored at temperatures between –... -
Page 9: Know Your Product
Know your product This drill is mainly used for drilling in wood or metal sheet and screwdriving. Use the tool and accessories only for intended applications. All other applications are expressly ruled out. 1. Keyless chuck 2. Handle 3. Variable speed trigger switch with electric brake 4. -
Page 10: Unpacking
“Overload” section in this manual. Note: When the battery of the drill is at the lower end of the charge, the drill is more susceptible to the overload condition. As mentioned above the battery pack is an integral component of this tool and it is fitted with thermal safety devices. -
Page 11: Battery Charging
Battery charging IMPORTANT. Before plugging in the power supply from the charger adaptor (9) to the charger base (10) always ensure that the plug is switched off at the mains. IMPORTANT. The battery will be fully charged after 3-5 hours, remove it from the charger after this time. Do not leave a battery charging for longer than 24 hours. -
Page 12: To Obtain The Best Life For The Battery
(use a new drill bit or sharpen the drill bit and allow the bit to do the cutting and reduce the amount of force placed on the drill). -
Page 13: Using The Drill
To reduce the temperature of the cells remove the battery pack from the drill and place the battery pack in a free air environment, out of direct sunlight or any other heat source. DO NOT force cool the pack in any way. Do not place in refrigerators or freezers. - Page 14 3. Holding the rear section of the chuck firmly, rotate the front section of the chuck clock-wise until the jaws tighten on the drill bit. The front section of the chuck needs to be tightened firmly to ensure the drill bit is held securely.
-
Page 15: Drilling
All drilling operations • Mark off the centre of the hole using a centre punch or nail. • Don’t force the drill, let it work at its own pace • Keep the drill bit sharp. • Reduce pressure, as the drill is about to break through the item being drilled. - Page 16 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
