Summary of Contents for GMC RC1200
-

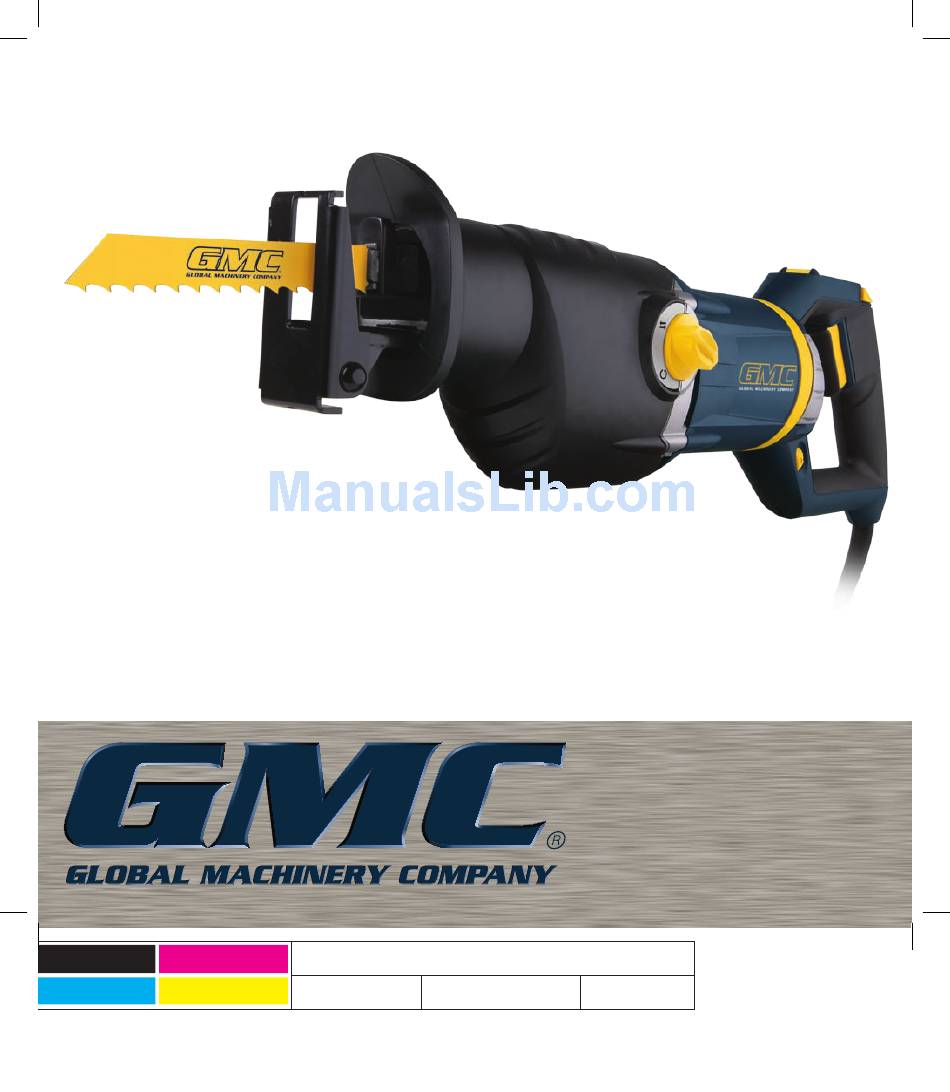

Page 1: Reciprocating Saw
1200W RECIPROCATING SAW RC1200 INSTRUCTION MANUAL Black Magenta Code: RC1200 Cyan Yellow Date: 061010 Edition: 05 Op: PW... -
Page 2: Table Of Contents
Contents Warranty Introduction Environmental protection Description of symbols Specifications General safety rules Additional safety rules for reciprocating saws Accessories Unpacking Know your product Setting up Installing a saw blade Switching on and off Varying the speed Using the pendulum control Changing the position of the shoe Rotating the rear handle General cutting... -
Page 3: Introduction
Introduction Your new GMC power tool will more than satisfy your expectations. It has been manufactured under stringent GMC Quality Standards to meet superior performance criteria. You will find your new tool easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 4: General Safety Rules
General safety rules WARNING. Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. -
Page 5: Additional Safety Rules For Reciprocating Saws
c. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. -
Page 6: Accessories
If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor. Accessories The GMC RC1200 Reciprocating Saw is supplied in a storage case with the following accessories: • 1 x Demolition Blade •... -
Page 7: Know Your Product
Know your product Before using the Reciprocating Saw, familiarise yourself with all the operating features and safety requirements. Use the tool only for the applications intended. All other applications are expressly ruled out. 1. Trigger switch 7. Rotatable rear handle 2. -
Page 8: Setting Up
Setting up Installing a saw blade CAUTION. Always ensure that the saw is switched off and unplugged from the mains supply before installing or removing a blade. Wear work gloves when replacing a blade. 1. Loosen the blade clamp (4) by depressing the clamp lever (12). -
Page 9: Changing The Position Of The Shoe
2. With the pendulum control (2) set at position , the blade swings up and down as well as moving backwards and forwards. This “pendulum action cutting” is very efficient when cutting softer materials. Note. Pendulum action cutting can leave a rough finish. Use a file or rasp to clean up the cut edge if necessary. -
Page 10: Plunge Cutting
4. Mark out the cutting line. 5. Squeeze the trigger. 6. Select the speed with control (9). 7. Place the shoe on the workpiece and begin sawing. Note. Use only enough pressure to keep the saw cutting. Do not force the cutting; allow the blade and the saw to do the work. -
Page 11: Maintenance
Maintenance WARNING. Always ensure that the tool is switched off and the plug is removed from the power point before making any adjustments or maintenance procedures. Regularly check that all the fixing screws are tight. They may vibrate loose over time. Cleaning 1. - Page 12 GMC customer assist If your product needs repairing, replacing, technical service or you simply need help or advice, please contact us on our Customer Assist Line 1300 880 001 (Australia) or 0800 445 721 (New Zealand). For prompt service we suggest you log your service request online at www.gmcservice.com.au.
