Summary of Contents for Antec Nine Hundred

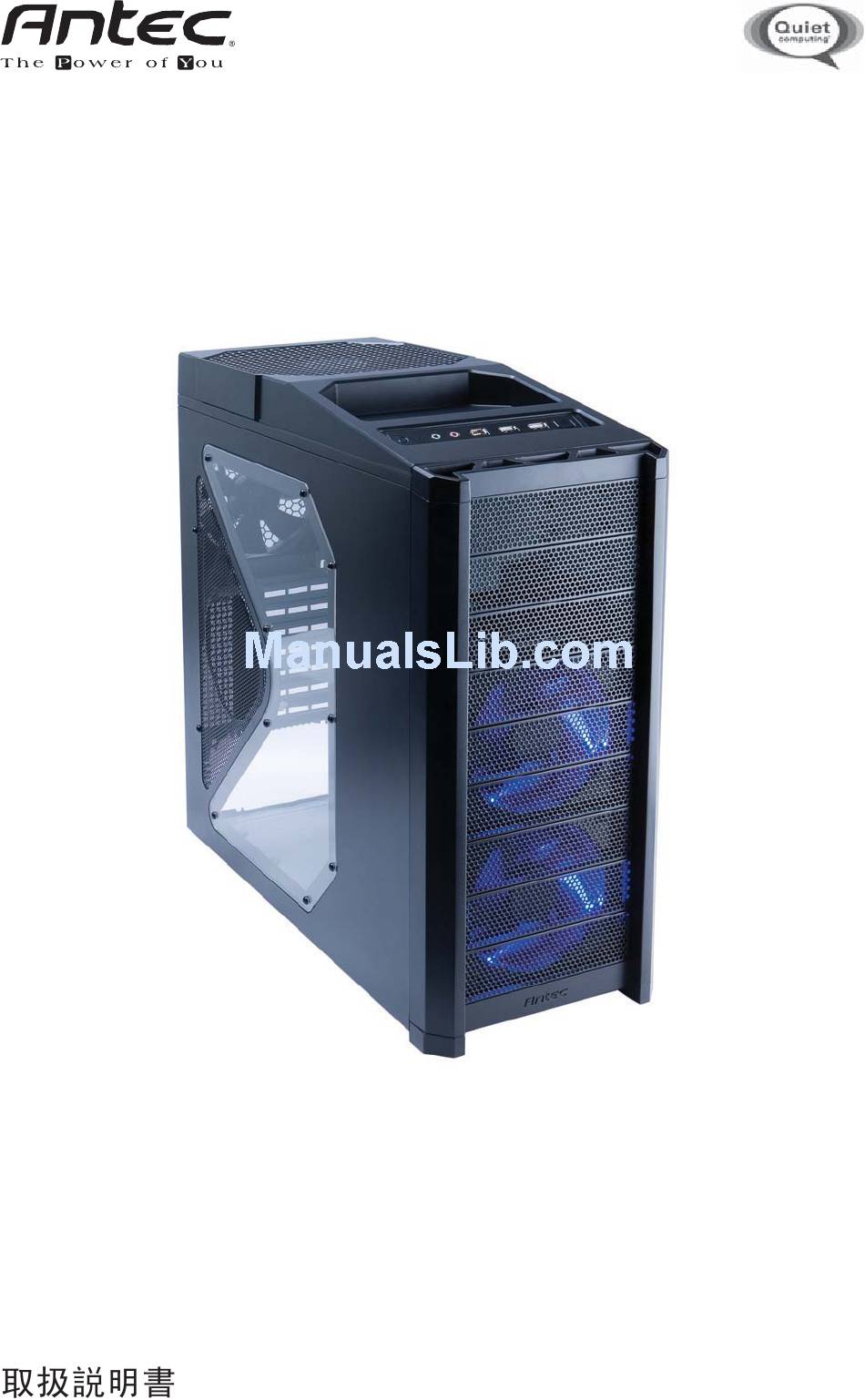

- Page 1 Nine Hundred User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 Nine Hundred User’s Manual The Nine Hundred comes without a power supply. Make sure you choose a power supply that is compatible with and has long enough power harnesses to reach your motherboard and peripheral devices.
-
Page 3: Installing The Motherboard
3. Remove the thumbscrews from the other side panel and open it by sliding it towards yourself. Place the screws carefully aside. Inside the case is the power supply mount at the lower rear of the case and the 5.25” drive bay area with two HDD cages inside the bays. - Page 4 If it does not match this Intel standard, please call Antec customer support at (800) 22ANTEC (North America) or at +31 (0) 10 462-2060 (Europe) to buy a USB adapter (SKU#30095). This adapter will allow you to connect the top USB to your motherboard on a pin-by-pin basis.
-
Page 5: Hard Drive Installation
7. Rear Left Speaker Out Pin: Connect RET-L connector to this pin. Flexi Drive Bay System The Nine Hundred comes with nine 5.25” external drive bays at the front of the case. There are two HDD cages preinstalled inside the bottom six 5.25” bays. - Page 6 The default setting is Low. The Front TriCool™ fans: Nine Hundred comes with two 120 x 25mm TriCool™ blue LED fans which are pre-installed in front of each HDD cage to cool the hard drives. These fans are...
- Page 7 There are two optional 120mm fan mounts – the side fan (on the left side panel) and the middle fan (at the rear end of the HDD cage). We recommend using Antec 120mm TriCool™ fans and setting the speed to Low. These two fans should be...
- Page 8 The Side Fan — the Side fan is there to enhance VGA cooling. Just drop a fan into the bracket on the side panel so that air is blowing into the case. The Middle Fan — the middle fan is designed to cool the CPU, VGA card or the power supply if you choose to use a fanless power supply depending on which drive bays you install the HDD cage into.
-
Page 9: Customer Support
Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2006 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China. Version 1.0.1 07/11/2006...
