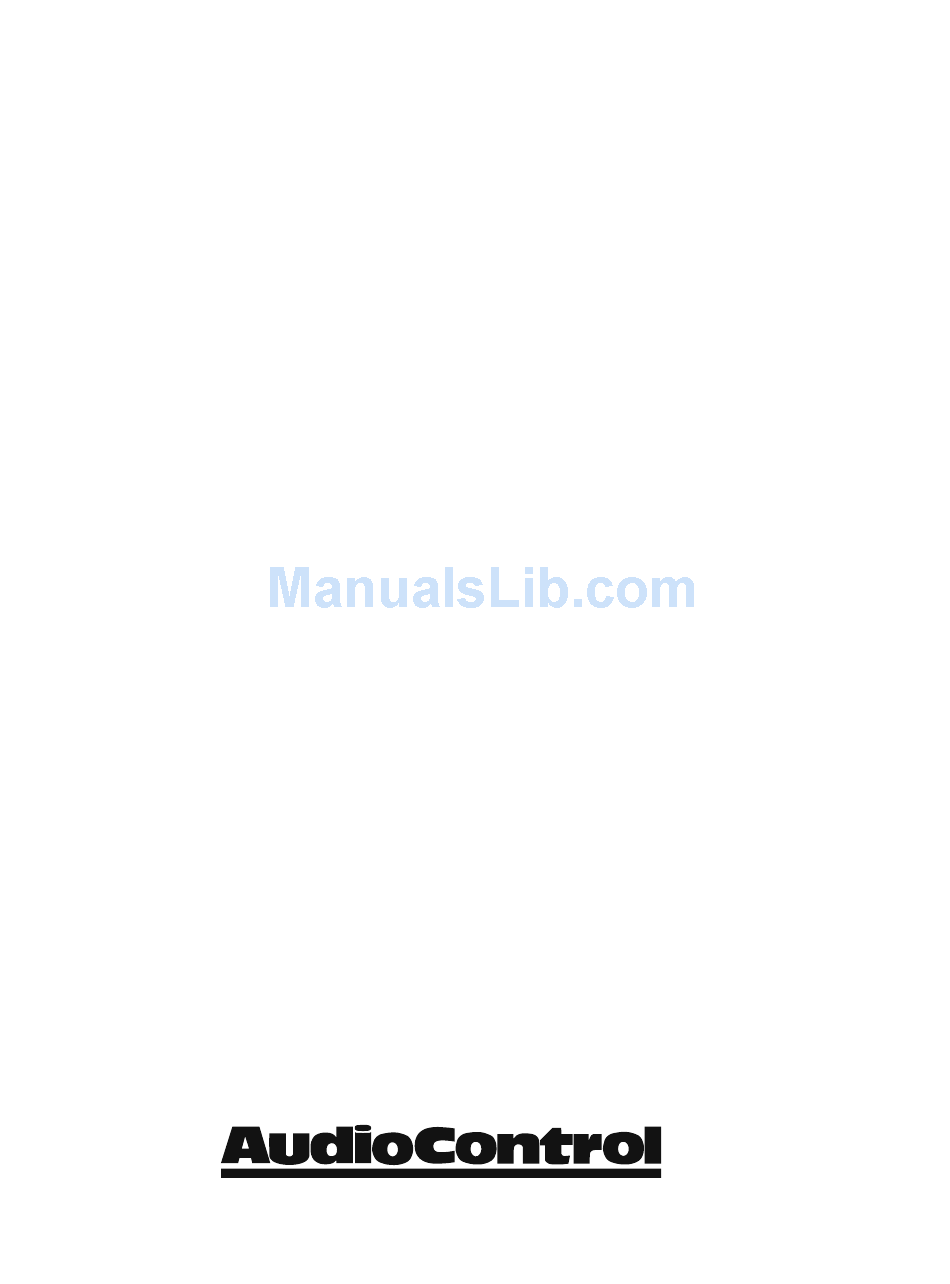

- Page 1 Savoy Home Theater Power Amplifier Professional Installer’s Consciousness Guide ©2005. All Rights Reserved ® For those who consider perfection possible ® 22410 70th Avenue West • Mountlake Terrace, WA 98043 Phone 425-775-8461 • Fax 425-778-3166 www.audiocontrol.com...
- Page 3 Savoy Home Theater Power Amplifier Professional Installer’s Consciousness Guide ®...
- Page 4 Important Information Owner _______________________________________________ Date Purchased ______________________________________ Serial Number _______________________________________...
-
Page 5: Table Of Contents
Specifications ........15 Savoy O P E R AT O R ’... - Page 6 Savoy O P E R AT O R ’ S M A N U A L...
-
Page 7: Congratulations
This manual is designed to help you get everything you can out of your new Savoy amplifier, and we don’t mean parting it out! So even though you’re dying to hear the pristine sonics of the... -
Page 8: Product Highlights
Product Highlights Pristine Sonics, Authoritative Power, and Legendary Reliability… The Savoy amplifier has been designed from the ground up to pro- vide pristine sonics, authoritative power, and legendary reliability. This ensures that you will be able to enjoy amazing sound at almost any level for years to come. -
Page 9: Front Panel
Display Button – The display button allows you to toggle between three display settings for the Channel Level Indicators on the front of the Savoy. “Off ” will turn off the channel level indicators. “Low” (as in- dicated by the Range Setting LED) allows the Channel Level Indicators to dance when playing at moderate listening levels (think Elton John con- cert). -
Page 10: Rear Panel
Sensitivity Switch – The Savoy provides three input sensitivity set- tings to level match the inputs of the Savoy with the outputs of your theater processor. AudioControl recommends setting “C” because it provides the greatest protection and noise reduction. Setting “B” is the standard (consult your theater processor or source unit manual to determine if output voltage is THX rated). -
Page 11: Installation
Installation Guide A performance theater begins to take shape the moment you first pull this unit from the box. To make the installation of the Savoy as simple and easy as possible, please follow these steps to ensure amazing sound performance for years to come. - Page 12 2. Source unit (most commonly a surround processor or pre-amp, such as the AudioControl Maestro or Maestro M2). 3. Audio cables to carry the signal from the source unit to the Savoy am- plifier (Either RCA or XLR). 4. Speaker wire to carry the power from the Savoy amplifier to the speakers.
- Page 13 Also, remember that the Savoy offers both line-level inputs and outputs via unbalanced RCA jacks. It may seem elementary, but be certain you are...
- Page 14 Savoy’s many features. The Savoy is designed to increase the strength of the signal it is provided and direct it out to the speakers. If you provide a poor signal, the Savoy may only make it a louder poor signal.
- Page 15 4. Select the proper speaker cable connectors to connect your speakers to the Savoy. The 5-way binding posts on the Savoy will allow you to use a number of cable con- nectors including pin, fork, banana plugs, or even bare wire (see diagram).
-
Page 16: Troubleshooting
Troubleshooting The Savoy Savoy O P E R AT O R ’ S M A N U A L page 10... - Page 17 Subtle Plug for other AudioControl Products The Savoy is a fantastic amplifier. But even fantastic amplifiers in a poor system are disappointing, which is why AudioControl’s Perfection Home Theater family of products includes amplifiers, pre-amps, and proces- sors. The Maestro M2 pre-amp processor is a fantastic match for the Savoy amplifier, both cosmetically and acoustically.
-
Page 18: Warranty
“good with electronics,” try to repair your Savoy amplifier. So go ahead, read this warranty, then take a few days to enjoy the new Savoy ampli- fier before sending in the warranty card and comments. - Page 19 1. A copy of your receipt (NOT the original) to serve as your proof of pur- chase. 2. A brief explanation of the trouble you are having with the Savoy, in- cluding circumstances within which the problem is evident. 3. A return street address (No PO Boxes).
-
Page 20: Block Diagram
Block Diagram Savoy O P E R AT O R ’ S M A N U A L page 14... -
Page 21: Specifications
Savoy Specifications As technology advances, AudioControl reserves the right to continuously change our specifications. Number of Channels: ........................7 Output Power 20Hz – 20kHz: ..............150 Watts Per Channel, ....................All Channels Driven into 8 ohms Minimum Speaker Load: ......................4 Damping Factor: ....................Greater than 400... - Page 22 22410 70th Avenue West Mountlake Terrace, WA 98026 USA Phone 425-775-8461 • Fax 425-778-3166 www.AudioControl.com ©2005. All Rights Reserved P/N 913-082-0 Savoy O P E R AT O R ’ S M A N U A L...
