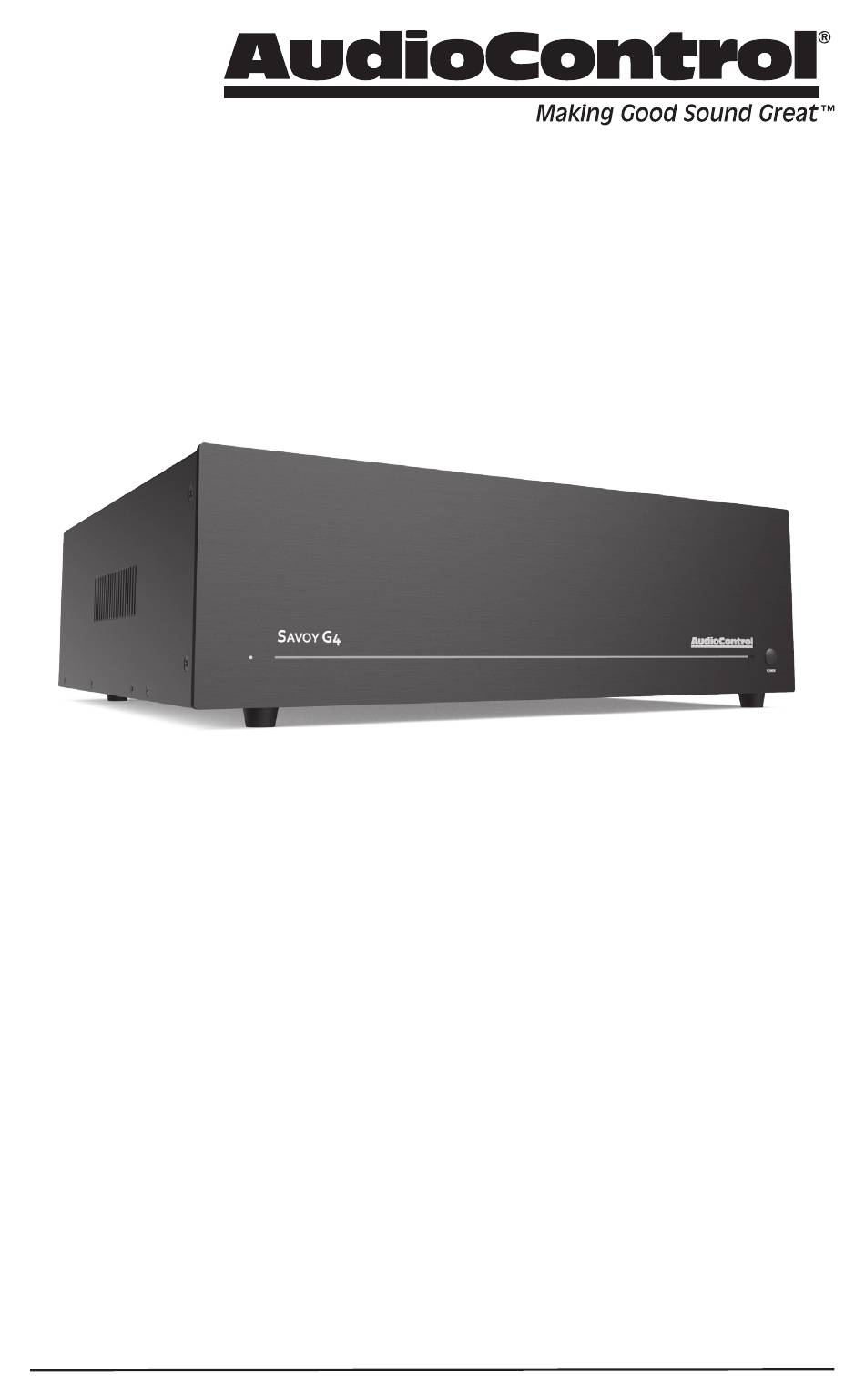

- Page 1 AVOY 7 CHANNEL HIGH POWER AMPLIFIER OF DESTINY Installation Manual...
-
Page 2: Important Safety Instructions
The lightning flash with arrowhead CAUTION: Changes or modifications to this symbol within an equilateral triangle device not expressly approved by AudioControl Inc. could void the user’s authority to operate is intended to alert the user to the the equipment under FCC rules. -
Page 3: Table Of Contents
Blackhawk Waltz . . . . . . . . . . . . . . . . . 28 ©2019 AudioControl Inc All rights reserved. -
Page 4: Introduction
AudioControl watching a slug race, we have included Savoy G4 theater amplifier that performs lots of useful information, carefully as a 7 channel amplifier to power your concealed within a minimum of technical surround sound speaker or you can use it jargon. -
Page 5: Features
Features Here are some of the features that make • Lightdrive Protection System the Savoy G4 very unique, and unlike any The Lightdrive protection circuitry other amplifier: protects this amplifier like a mom- ma bear to her cubs - and defends • Configuration Flexibility... - Page 6 Features continued Complimentary Features • Class H power - dynamically provides incredible power • Bridgeable outputs delivering 600 watts • Individual channel input gain • Mono/stereo operation • Balanced XLR and unbalanced RCA inputs • Analog RCA loop-through outputs • Stout and sturdy 5-way binding posts •...
-
Page 7: Quick View
Quick View Quick View Front Panel 1 . Power LED 3 . Power Button 2 . Light Bar 4. Rack Mount Ears (optional) Rear Panel 1 2 3 4 5 9 10 11 1 . Light bar brilliance setting 7 . Ground isolation switch 2 . -
Page 8: Getting Started
They also have poor shielding. 5. The Savoy G4 gives you the option of using RCA cables or balanced XLR cables – if running more than 20 feet or so, it is best to run those signal ca- bles as XLR to give you better noise rejection. -
Page 9: Front Panel Features
Front Panel Front Panel Features 1 . LED – On the far left of the heavy duty 3 . Power Button – This large legendary brushed aluminum front panel, this button allows for the on/standby mode LED indicates the state of the Savoy to be toggled. -
Page 10: Rear Panel Features
Savoy G4 to full output. These adjustments are applied per 2 . Inputs – The Savoy G4 features both channel input, so for stereo signals, Balanced XLR and unbalanced RCA... - Page 11 AudioCon- trol home theater receivers, turn on the Savoy G4 when it turns on. LED indicator – This LED is blue when the master trigger input is active, and off when it is inactive.
- Page 12 The Savoy G4 draws an average of 400 watts with typical source material. Make certain that it is plugged directly into the wall outlet, or a surge protector power strip with sufficient power rating.
-
Page 13: Speaker And Wiring Impedance
“show” lower values than the rated at unusual impedances, for example individual components. Here are two 3.5 Ohms. The Savoy G4 is tolerant of examples for calculating speakers wired in lower impedance loads, however, all good parallel: designs use some margin of error. -
Page 14: Installation
12 volt cable boxes and Blu-ray players are DC signal from an external control not directly on top of the Savoy G4 system. The tip is hot and the sleeve is amplifier. the ground. -
Page 15: Configurations
Configurations Configurations The Savoy G4 is wonderfully configurable. As a 7 channel amp, it gives you unparalleled cool running power that can handle any speaker. It’s a 5.1 amplifier or a 5 channel amp depending on your bridging configurations. Please take a moment and a nice box of crayons to enjoy the hookup diagram ideas on the following pages. - Page 16 Configurations 5 .1 Channels Wire your main speakers on channels 1 – 5. Connect your sub output from your AVR to channel 6 and press the mono button for 6 &7. You have now over 600 watts driving your 8 ohm sub! With the other channels handling the highs, you really aren’t going to get anything better from a single multichannel hifi amp.
- Page 17 If you have a pair of power hungry 8 ohm speakers that can handle the prodigious power (600 watts!) of the Savoy G4, then hook them up! Run the left input to Channel input 1 and run the right to Channel input 6. Press the mono button for each channel pair then adjust the gain controls for each pair so that there are the same.
- Page 18 Configurations 7 Channels in Mono The Thru outputs can be used to feed the same audio signal to all the Savoy G4’s 7 channels. mono musak Connect to and paging Preampli er/Receiver Switch Switch Line-Level output STEREO Daisy-chain the Thru output to the other inputs...
-
Page 19: Ventilation
Ventilation Ventilation This may be as good a time as any to have “the talk” about ventilation. The Savoy G4 features cool-running efficient switch mode power supplies and amplifiers but it is still a very powerful seven-channel amplifier, and therefore requires plenty of good clean, dry, ventilation to properly cool. -
Page 20: Advanced Discussions
You will be amazed at how cool the Savoy G4 is at this level. One rule does not fit all situations, so apply your knowledge of the particular circum- stances involved. - Page 21 Advanced Discussions (continued) Unique Rooms and SPL in Large Areas Are there any special considerations for bathrooms? Bathrooms are irregular rooms, rooms within a room, with high ambient background noise, often with noise masking type of ambient sound, highly reflective, and often fairly large. If you pause and think about that for a moment, these are some of the more challenging rooms.
-
Page 22: Troubleshooting
1. No Sound bacon-frying CD. a. Verify the front panel LED is blue. c. Check that the crossover settings b. Check that the Savoy G4 is not in are matched to your speakers. standby mode (LED red). Mindfulness c. Check the input wiring from your sources to the Savoy G4 inputs. -
Page 23: Specifications
Specifications Specifications Output Power Per Channel ..........230 watts @ 8 ohms, 300 watts @ 4 ohms Bridged Mono (channels 1/2 and 4/5) ........600 watts @ 8 ohms Frequency Response................ 10 Hz -20 kHz, ±1 dB Total Harmonic Distortion/Ch ....... 0.04% (230 watts @ 8 ohms 20 Hz -20 kHz) Maximum Input Voltage ……………............………..….…... -
Page 24: Block Diagram
Block Diagram Block Diagram... -
Page 25: Service
4. A daytime phone number in case our If the Savoy G4 needs service, then please technicians have a question about the contact AudioControl, either by e-mail or problem you are having, or if they are phone. -
Page 26: The Warranty
Please Remain Calm The Warranty In just the same way as being covered in 3. If an authorized AudioControl dealer honey and thrown into a dark pit full of installs your AudioControl product, hungry woodchucks, people are scared of the warranty is five years, otherwise warranties. - Page 27 Control. This warranty gives you specific legal rights, and you may also have rights that vary from state to state. Promises of how well your AudioControl product will work are not implied by this warranty. Other than what we’ve said we’ll do in this warranty, we have no obligation, express or implied.
-
Page 28: Blackhawk Waltz
Hurrah, you are done! The Blackhawk Waltz START FINISH Manual PN 913-163-0...
