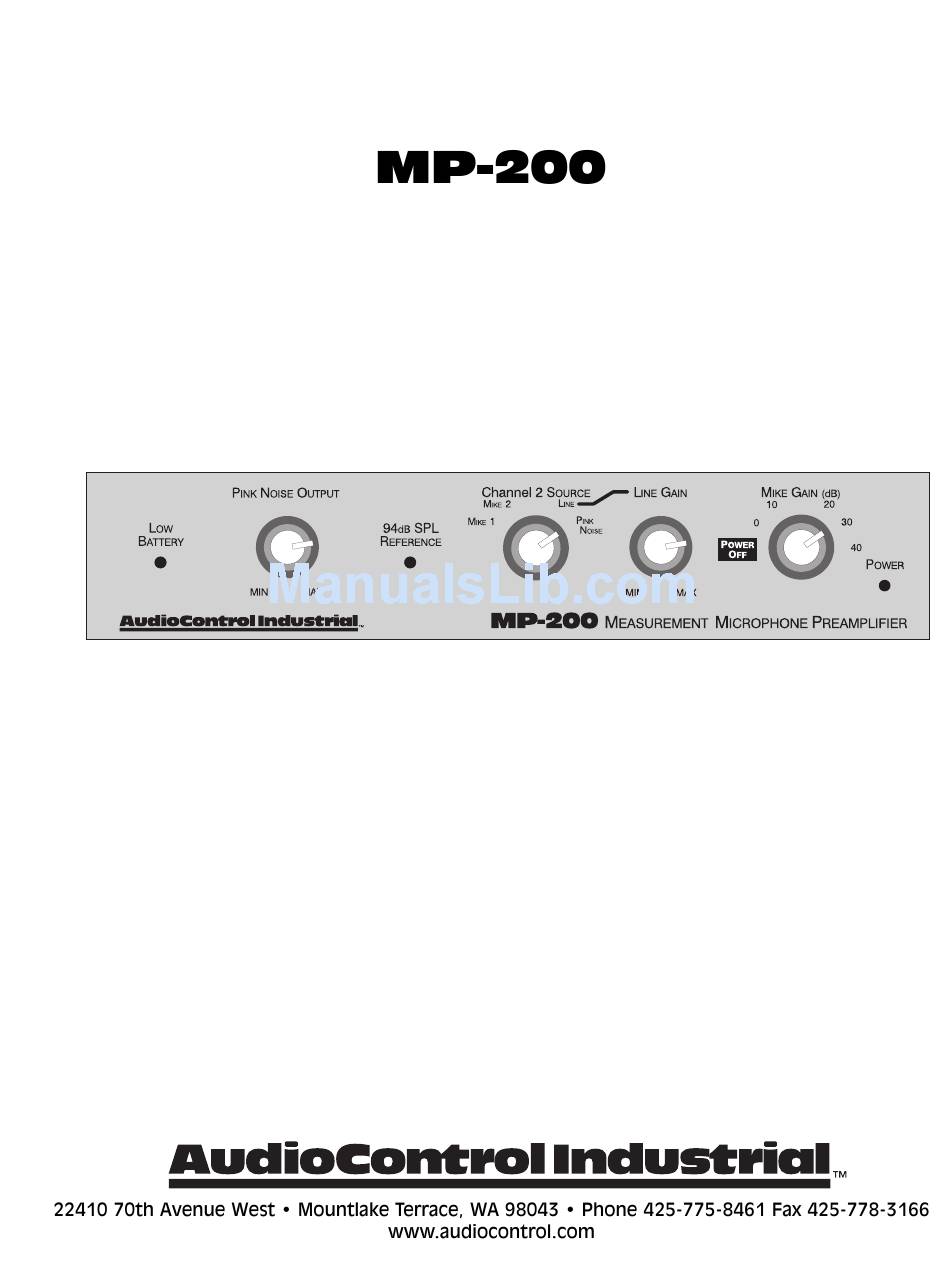

- Page 1 CHANNEL ICROPHONE REAMPLIFIER YSTEM Owner’s Manual P/N 9130560 © 1999 All Rights Reserved...
- Page 2 MP-200 Operation Manual...
-
Page 3: Quick Start
• Connect the LINE OUTPUT of the MP-200 to your analyzer or computer sound input. • Set the MIC GAIN knob on the MP-200 to 0 dB. At this setting, the output signal level will be 24.5 mV at 94 dB sound pressure level (1 Pascal). - Page 4 AudioControl Industrial has been designing and manufacturing audio analysis equipment in the United States since 1977. The AudioControl Industrial SA-3050 real-time audio analyzer is still the world’s most popular analyzer. The MP-200 is designed to our high quality standards to meet the needs of audio profes- sionals and enthusiasts alike.
-
Page 5: Front Panel View
MIC GAIN CONTROL the CM-10 mic is 94 dB. Useful for Controls the main power of the calibrating analyzer systems. MP-200 and selects the gain of both microphone inputs. LOW BATTERY LED LINE LEVEL INPUT GAIN Indicates when it is time to put a Adjusts the gain of the line level new battery into the MP-200. -
Page 6: Basic System Setup
The basic application setup with the MP-200 system is very simple: Plug one or two CM-10 microphones into the MP-200 preamp, connect the line level input if necessary, and feed the line output of the preamp into your analyzer or measurement system. Once you have connected the system together, operation of the MP-200 is straightforward: Set the MIKE GAIN control to the amount of signal increase you need from the CM-10 mic to your analysis system. - Page 7 • Mike 1 - Used to feed the same mike 1 signal to both Channel 1 and Channel 2 outputs of the MP-200. This is useful to insure that both channels of your analyzer are adjusted to the same settings.
- Page 8 This DSP card utilizes balanced mini-DIN audio connec- tions, so you will need to build an adapter cable to connect the unbalanced RCA outputs of the MP-200 to the balanced mini-DIN inputs of the SysID DSP card. The typical equipment needed for this setup (in addition to the computer with a SysID analyzer card) is a mic preamp, a measurement microphone and the cables to plug it all together.
-
Page 9: Legalese Section
Here are the conditional conditions: 1. You have to fill out the warranty card and send it to us within 15 days after installing the MP-200. 2. You must keep your sales receipt for proof of purchase showing when and from whom the unit was purchased. - Page 10 1) A copy of your proof of purchase (that sales receipt we’ve been harping about). No originals please. We cannot guarantee returning them to you. 2) A brief explanation of the trouble you are having with the MP-200. (You’d be surprised how many people forget this.) 3) A return street address.
-
Page 11: Specifications
Specifications (all specification are subject to change and improvement) Type of instrument ................2 Channel Microphone Preamplifier Preamp frequency response .................... 20-20kHz ±0.15dB Preamp Noise floor ......................-104 dBu A-wtd Maximum output level ...................... 5 Vrms (+16 dBu) Output Impedance - RCA Line Outputs ..................200 ohm Output Impedance - Stereo "... -
Page 12: Measurement Microphone
The CM-10 microphone has a nominal output voltage of 24.5 mV at 94 dB acoustic sound pressure level. With the MP-200 set to 20 dB, the output voltage from the preamp will be 245 mV. 20dB Amplification = 10X Gain Multiplier 24.5 mV Input x 10 = 245 mV Output... -
Page 13: Connection Pinouts
Sleeve - Ground † Usage of MLSSA, SIA-Smaart, and SysID in the example systems does not imply endorsement of these products or vice versa. MP-200 and CM-10 are trademarks of AudioControl Industrial MLSSA is a trademark of DRA Laboratories SIA-Smaart is a trademark of SiaSoft SysID is a trademark of AT&T Bell Laboratories... - Page 14 ©1999 AudioControl Industrial, All Rights Reserved This manual was written and printed in the USA No slugs were harmed in the production of this manual (although several mice were run ragged)
