AT&T Call Display 435 User Manual

AT&T Call Display 435 User Manual

Call display
Hide thumbs
Table of Contents

Advertisement

Quick Links

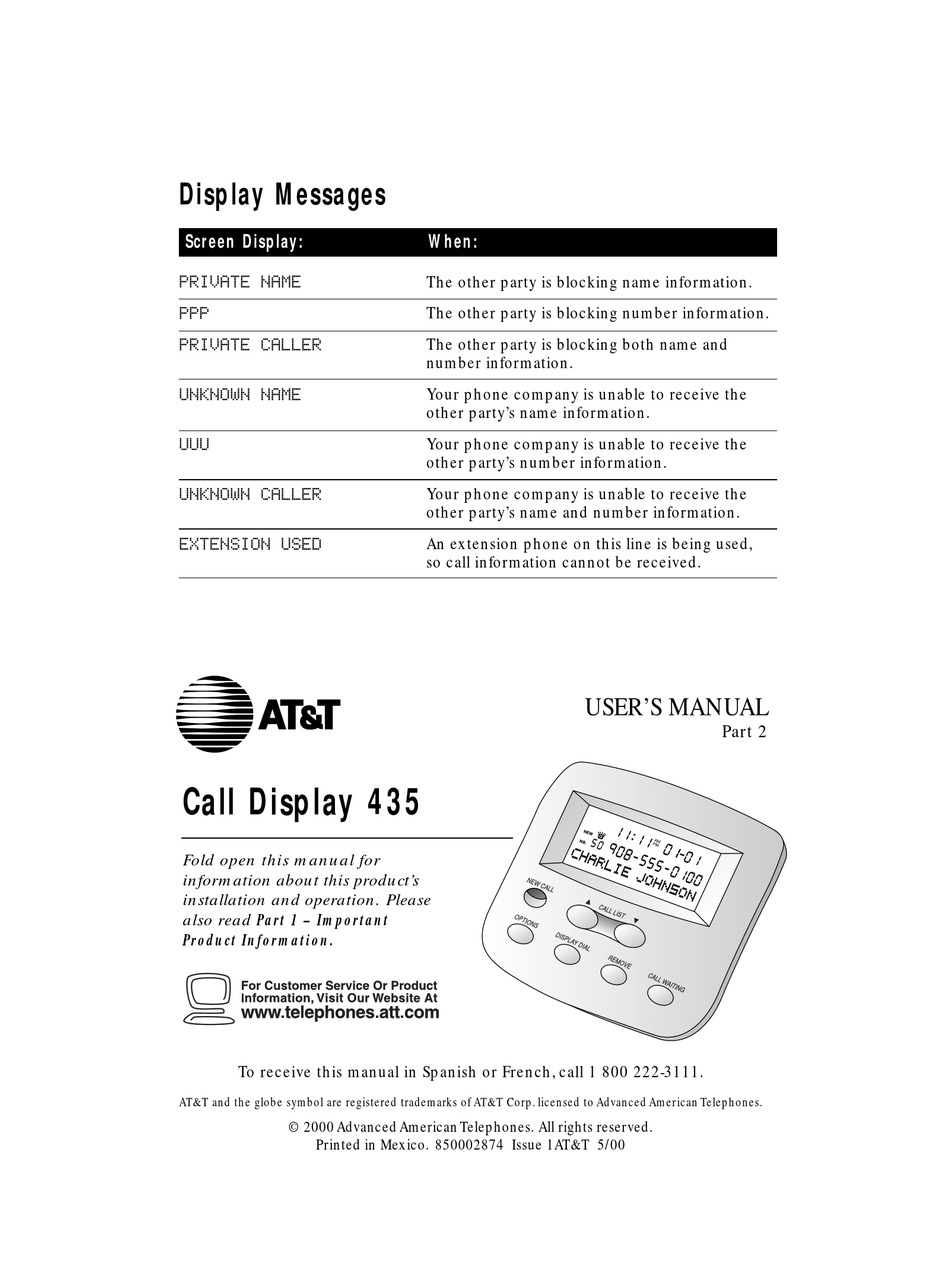

Display Messages

Screen Display:
PRIVATE NAME
PPP
PRIVATE CALLER
UNKNOWN NAME
UUU
UNKNOWN CALLER
EXTENSION USED
1

Call Display 435

Fold open this manual for
information about this product's
installation and operation. Please
also read Part 1 – Important
Product Information.
To receive this manual in Spanish or French, call 1 800 222-3111.
AT&T and the globe symbol are registered trademarks of AT&T Corp. licensed to Advanced American Telephones.
© 2000 Advanced American Telephones. All rights reserved.
Printed in Mexico. 850002874 Issue 1AT&T 5/00
When:
The other party is blocking name information.
The other party is blocking number information.
The other party is blocking both name and
number information.
Your phone company is unable to receive the
other party's name information.
Your phone company is unable to receive the
other party's number information.
Your phone company is unable to receive the
other party's name and number information.
An extension phone on this line is being used,
so call information cannot be received.
USER'S MANUAL
Part 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Call Display 435 and is the answer not in the manual?

Questions and answers

Related Manuals for AT&T Call Display 435

Summary of Contents for AT&T Call Display 435

  • Page 1: Display Messages

    An extension phone on this line is being used, so call information cannot be received. USER’S MANUAL Part 2 Call Display 435 Fold open this manual for information about this product’s installation and operation. Please also read Part 1 – Important Product Information.
  • Page 2 Table/Desk Installation Connect the line cord. Plug one end of the line cord (supplied) into the unit’s TEL LINE jack. Plug the other end of this cord into the modular wall jack, making sure it snaps firmly into place. (If you are connecting an answering machine, make sure it is connected between the unit and the telephone.) Connect the power cord.
  • Page 3 Table/Desk Installation Standard Electrical Outlet Caller ID Unit Modular Wall Jack Telephone INSTALLATION WITH ANSWERING SYSTEM Standard Electrical Outlet Caller ID Unit Answering System Modular Telephone Wall Jack NOTE: Use with a telephone is optional. However, if you do not connect a telephone, you will not be able to use the Display Dial feature (described later in this manual).

  • Page 4: Wall Installation

    Wall Installation Remove the bracket by sliding it downward from the unit. Hold the flat edge of the bracket against the wall with the rubber feet towards the bottom of the unit. Mark the location of the two mounting screw holes with a pencil. Thread the power cord through the square hole at the bottom center of the bracket.
  • Page 5 Wall Installation continued from page 3 Snap the unit onto the bracket and slide it down as far as it will go. Plug the power cord into the back of the unit. Plug one telephone line cord into the TEL SET jack and one line cord into the TEL LINE jack.

  • Page 6: Installation Settings

    Installation Settings Language Selection You can select English, Spanish or French as the language in which your Caller ID information is displayed. When you first plug in the power cord, the screen displays the language selection screen. To select a language, press + until the desired language appears on the screen, then press N.
  • Page 7 Installation Settings Set Local Area Codes NOTE: If you call phone numbers in other area codes but do not dial “1” before the area code, and you dial only seven digits for numbers in your area code, 1) enter your area code as the Home Area Code, and 2) enter area codes before which you do not dial “1”...

  • Page 8: About Caller Identification

    About Caller Identification This product is designed to store and display information about incoming telephone calls. It must be used with Caller Identification service provided by your local telephone company; there is a fee for this service, and it may not be available in all areas.

  • Page 9: Operation

    Operation Call Waiting Press Con the unit when you receive a call waiting signal. Using this button puts your current call on “hold,” connects you to the new call, and displays the name/number of the call waiting call on the bottom two lines.
  • Page 10 Operation Display Dial As you review calls in history, you can dial a displayed phone number. (This feature works only with touch tone service on a phone connected to the unit.) Lift the handset of the phone (the screen displays the first number in the call history), then press and release D to call that number, or press + or - to scroll to another number in the call history.
  • Page 11 Choosing Display Options You can customize how the features of this product work. Press N, then use + or - to scroll through display choices. Press N again when the desired choice is displayed — this sets your selection and automatically moves you to the next option.

  • Page 12: In Case Of Difficulty

    In Case Of Difficulty If you have difficulty operating this product, try the suggestions below. If you still have trouble, call 1 800 222-3111. If the Message Waiting/NEW CALL Light remains on: Unplug the power cord for 10 seconds, then plug it back in. If the screen displays Extension Used, and none are: Check all line cord connections.
