AXIS 231D - Product Description
6

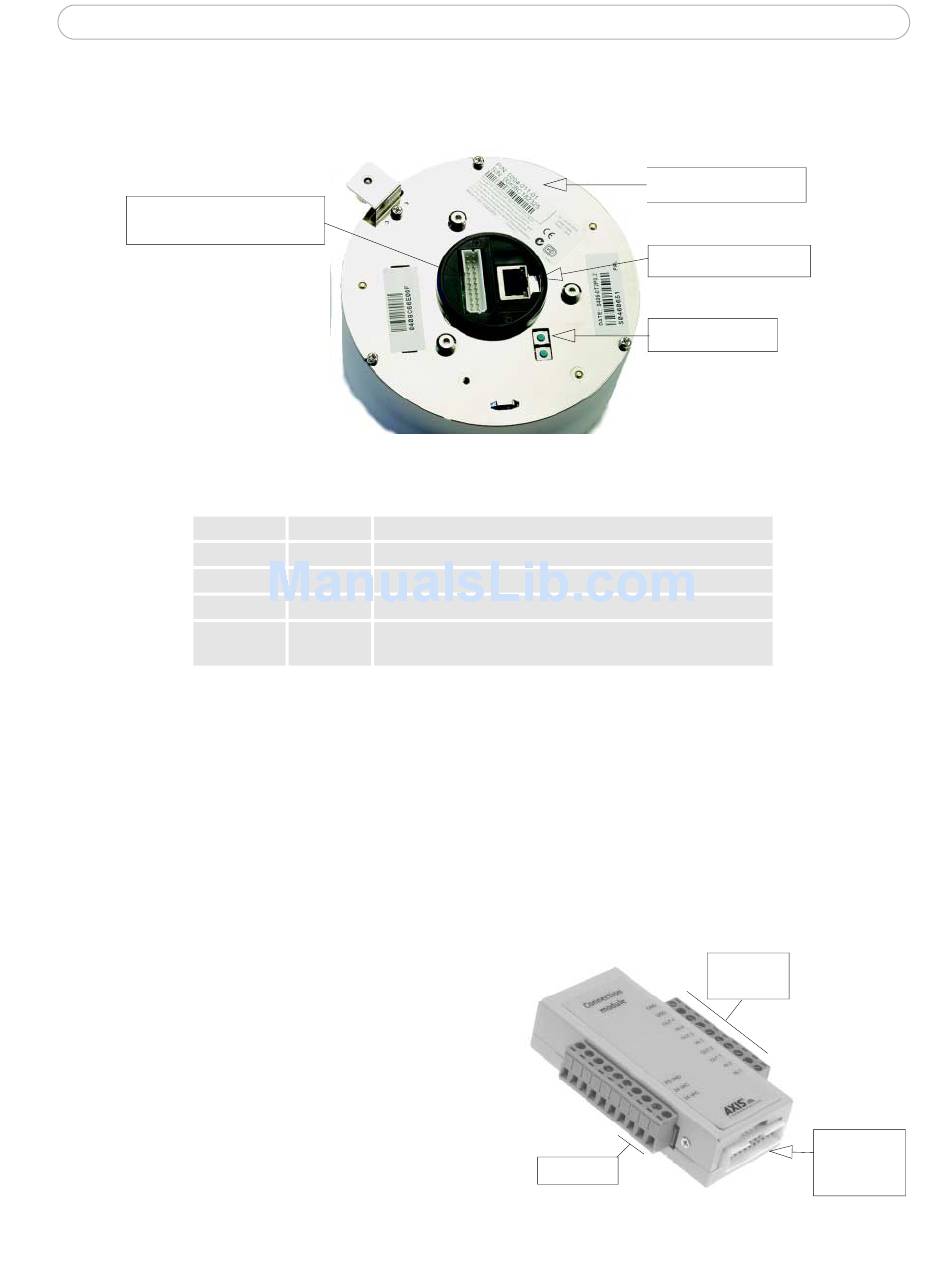

AXIS 231D

Connection module
connector
Network Connector- After completion of the startup and self test routines, the Network
and Power Indicators on the network connector flashes as follows:
Network
Power
Control Button - Press this button to restore the factory default settings, as described in
Resetting to Factory Default Settings, on page 40 or for installation as described in AXIS
Internet Dynamic DNS Service, on page 14.
The Serial Number (S/N) is located on the label on the unit.
Network Connector - The AXIS 231D connects to the network via a standard RJ45
connector. Supporting NWAY, the AXIS 231D detects the speed of the local network
segment (10BaseT/100BaseTX Ethernet).
Connection Module - The connection
module provides the physical interface to 4
transistor outputs, 4 digital inputs and is the
connection point for AC power. See
Connection Module, on page 41.
Green Flashes for network activity
Red Flashes rapid red for hardware error
None No connection
Green Normal operation
Amber Flashes green/amber during upgrade
and when connecting to AXIS Internet Dynamic DNS Service
Serial number
Network connector
Control button
4 outputs
4 inputs
AC Power
S/N
Connection
module
connector
