Axis 233D User Manual

Axis user's manual network dome camera 233d
Hide thumbs Also See for 233D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

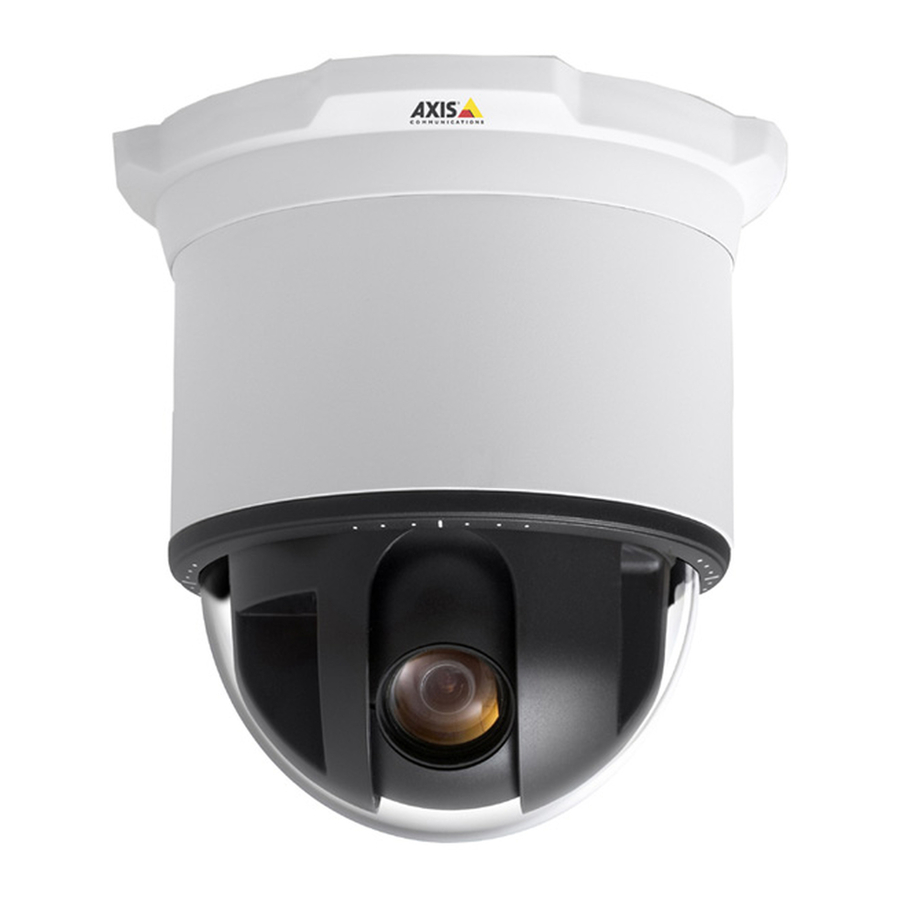

AXIS 233D
Network Dome Camera
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 233D and is the answer not in the manual?

Questions and answers

Related Manuals for Axis 233D

Summary of Contents for Axis 233D

  • Page 1 AXIS 233D Network Dome Camera User’s Manual...

  • Page 2: About This Document

    About This Document This manual is intended for administrators and users of the AXIS 233D Network Dome Camera, and is applicable for software release 4.40. It includes instructions for using and managing the AXIS 233D on your network. Previous experience of networking will be of use when installing and using this product.
  • Page 3 • visit the Axis Support Web at www.axis.com/techsup/ Safety Notice - Battery Replacement The AXIS 233D uses a 3.0V CR2032 Lithium battery as the power supply for its internal real-time clock (RTC). This battery will, under normal conditions, last for a minimum of 5 years.

  • Page 4: Table Of Contents

    Accessing the AXIS 233D ........
  • Page 5 Index ............... . . 68 AXIS 233D...

  • Page 6: Product Overview

    • Wide Dynamic Range - provides a better image in extreme lighting conditions • Area zoom - Draw a square in the live view with your mouse and the AXIS 233D will zoom in that area •...

  • Page 7: Overview

    Power/Audio connector - for connecting power supply and audio. See Power connections, on page 53. I/O terminal connectors - The AXIS 233D has 3 (8 pin) I/O terminal connectors that provide the physical interface to four solid state relay outputs, 4 alarm inputs, auxiliary power and ground.

  • Page 8: Status Led Indicator

    Resetting to Factory Default Settings, on page 51. For instructions on how to install the AXIS 233D please refer to the Installation Guide which is supplied with the product in printed format or in PDF format from the Axis Web site at http://www.axis.com...

  • Page 9: Using The Network Dome Camera

    • To be able to view streaming video in Microsoft Internet Explorer, you must set your Web browser to allow ActiveX controls. If your working environment restricts the use of additional software components, you can configure the AXIS 233D to use a Java applet for updating images. Please refer to the online help files for more information.
  • Page 10 AXIS 233D - Using the Network Dome Camera If the AXIS 233D has been customized, the buttons and other items described below will be displayed accordingly on the Live View page. The following provides an overview of each button: The Video Format drop-down list allows the video format on the Live View page to be temporarily changed.
  • Page 11 The time the user is in control of the PTZ settings is limited and a queue of users has been set up. Use the buttons to request or release control of the Pan/Tilt/Zoom controllers. AXIS 233D - Using the Network Dome Camera...
  • Page 12 AXIS 233D - Using the Network Dome Camera The Pan/Tilt/Zoom Control Queue is set up by the administrator under: Dome Configuration > Advanced > Control Queue. The Toolbar available from Mozilla Firefox, displays the following buttons: The Play/Stop buttons start and stop the live video stream.

  • Page 13: Video Streams

    The Live View page in the AXIS 233D provides access to Motion JPEG and MPEG-4 video streams, as well as to single JPEG images. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

  • Page 14: Mpeg-4 Protocols And Communication Methods

    AXIS 233D - Video Streams MPEG-4 protocols and communication methods To deliver live streaming video over IP networks, various combinations of transport protocols and broadcast methods are employed. • RTP (Realtime Transport Protocol) is a protocol that allows programs to manage the real-time transmission of multimedia data, via unicast or multicast.
  • Page 15 AXIS 233D - Video Streams How to stream MPEG-4 Deciding on the combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network. RTP+RTSP This method (actually RTP over UDP and RTSP over TCP) should be your first consideration for live video, especially when it is important to always have an up-to-date video stream, even if some images do get dropped.

  • Page 16: The Axis Media Control

    Video/images from the AXIS 233D can also be accessed in the following ways: • If supported by the client, the AXIS 233D can use Motion JPEG server push to display video. This option maintains an open HTTP connection to the browser and sends data as and when required, for as long as required.

  • Page 17: Configuring The Network Dome Camera

    Configuring the Network Dome Camera This section describes how to configure the AXIS 233D and is intended for the product Administrator who has unrestricted access to all Setup tools and Operator who has access to Video & Image, Live View Config and Event Configuration. See the section on Security, on page 39 for more information on user access control.

  • Page 18: Video & Image Settings

    AXIS 233D - Configuring the Network Dome Camera Video & Image Settings The following descriptions offer examples of the available features in the AXIS 233D. For details of each setting, please refer to the online help files which are available from each page.
  • Page 19 Follow these instructions to upload and use an overlay image: 1. Go to Setup > Video & Image > Overlay Image. 2. To upload the file (a logo or image) to the AXIS 233D, click the Browse button and locate it on your computer or server.
  • Page 20 The maximum overlay image size supported by the AXIS 233D is the same as the maximum image resolution. See Technical Specifications, on page 46.
  • Page 21 • Image freeze on PTZ - Set this option to On to freeze the image during camera movement. Once the camera reaches its position the current image is shown. Auto freezes images only between preset positions. AXIS 233D - Configuring the Network Dome Camera for more information.

  • Page 22: Mpeg-4 Settings

    AXIS 233D - Configuring the Network Dome Camera MPEG-4 Settings Tools for adjusting the MPEG-4 settings and for controlling the video bit rate. The MPEG-4 standard provides many different coding tools for various applications in different situations. As most MPEG-4 clients do not support all of these tools, it is usual to instead define and use subsets for different clients or groups of clients.

  • Page 23: Audio

    Audio Settings This section describes how to configure the basic audio settings for the AXIS 233D, e.g. set the communication mode and adjust the sound levels in the microphone and speaker connected to the camera.

  • Page 24: Audio Output

    The AXIS 233D can be set to trigger an event if the incoming sound level rises above, falls below or passes the set value. The Alarm level is set between 0-100%.

  • Page 25: Advanced Audio

    AXIS 233D - Audio Advanced Audio Advanced audio settings can improve audio quality by speech filtering and echo and noise cancellation. When enabled the speech filter reduces noise by filtering out all the frequencies below 100HZ and above 3500 Hz. This improves the sound quality if a person is close to the microphone when talking and will reduce background noises.

  • Page 26: Live View Config

    AXIS 233D - Live View Config Live View Config Layout These are the tools for deciding the layout of the Live View page. The layout can be set in 3 ways: • Use Axis look - the layout is unchanged.
  • Page 27 • To use your uploaded file, click the radio button and select the file from the drop-down list by Own: • To use an external file located somewhere other than in the AXIS 233D, click the radio button and enter the URL by External:...

  • Page 28: Action Buttons

    6. Select the Use as cgi link radio button and enter the cgi link in the field: http://192.168.0.125/axis-cgi/com/ptz.cgi?continuouspantiltmove=0,0 7. These links will appear in the web interface and can be used to control the AXIS 233D. For more information on the Axis HTTP API, see the Support / Developer pages on the Axis Web site at http://www.axis.com.

  • Page 29: Html Examples

    HTML Examples You can add live video from the AXIS 233D to your own web site. The camera can transmit a Motion JPEG stream to up to 20 simultaneous connections, although an administrator can restrict this to fewer. If MPEG-4 is set as video format, multicasting is used and the audio and video stream will be available for an unlimited number of viewers connected to the parts of the network where multicast is enabled.

  • Page 30: External Video

    AXIS 233D - Live View Config The Motion JPEG selection has additional settings for Image Type, Image size and other optional settings to configure the video stream to suit your Web page. Click Update once satisfied. The camera generates the required source code for your configuration. Copy this code and paste it into your own Web page code.

  • Page 31: Dome Configuration

    OSDI Zones On-screen Direction Indicator Zones are areas that you define with coordinates and a descriptive name. These zones can then be included in the Image text to aid the viewer in navigating the camera. AXIS 233D - Dome Configuration...
  • Page 32 Note: Once a limit has been saved, this position can not be exceeded by the AXIS 233D unless the values have been reset and saved to a greater value first (i.e. reset the default values of the mechanical restrictions).

  • Page 33: Event Configuration

    Event Servers are used, e.g. for receiving uploaded image files and/or notification messages. To set up Event server connections in your AXIS 233D, go to Setup > Event Configuration > Event Servers and enter the required information according to the selected server type.

  • Page 34: Event Types

    AXIS 233D - Event Configuration Event Types An Event Type is a set of parameters describing how and when the Network Dome Camera is to perform certain actions. Example: If a door is opened, and an event has been configured to act on this, the Network Dome Camera can e.g.
  • Page 35 AXIS 233D - Event Configuration Pre-trigger and Post-trigger buffers This function is very useful when checking to see what happened immediately before and after a trigger, e.g. 2 minutes before and after a door has been opened. Go to Event Types > Add Triggered... >...
  • Page 36 AXIS 233D - Event Configuration Scheduled Event A Scheduled event can be activated at pre-set times, in a repeating pattern on selected weekdays. How to set up a scheduled event This example describes how to set the Network Dome Camera to send an email notification with saved images from at a set time: 1.

  • Page 37: Motion Detection

    Activity window (the active window has a red frame). 6. Click Save. To exclude parts of the Include window, click the Configure Excluded Windows button and position the Exclude window as required, within the Include window. AXIS 233D - Event Configuration...

  • Page 38: Port Status

    Port Status Under Event Configuration > Port Status there is a list that shows the status for the connected inputs and outputs of the AXIS 233D for the benefit of the Operator who cannot access the System Options section. Example: If the Normal state for a push button (e.g.

  • Page 39: System Options

    Live View page. IP Address Filtering Enable IP Address Filtering to allow or deny access to the AXIS 233D. Once enabled, the IP addresses in the list will be allowed or denied access according to the choice made in the drop-down list Allow/Deny the following IP addresses.
  • Page 40 Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. Certificate - to use HTTPS for communication with the AXIS 233D, a Certificate must be created using one of the following methods: •...

  • Page 41: Date & Time

    Current Server Time - displays the current date and time (24h clock). The time can be displayed in 12h clock format in the Overlay Images (see below). New Server Time - Select your time zone from the drop-down list and check the daylight saving time changes, if desired. AXIS 233D - System Options...
  • Page 42 AXIS 233D - System Options From the Time Mode section, select the preferred method to use for setting the time: • Synchronize with computer time - sets the time from the clock on your com- puter. • Synchronize with NTP Server - the network camera will obtain the time from an NTP server every 60 minutes.

  • Page 43: Network - Basic Tcp/Ip Settings

    IP address change (under Services) to receive notification from the network camera when the IP address changes. • Alternatively, if your DHCP server can update a DNS server, you can access the AXIS 233D by host name which is always the same, regardless of the IP address.

  • Page 44: Network - Advanced Tcp/Ip Settings

    Use the following DNS server address - enter the desired DNS server by specifying the following: Domain name - enter the domain(s) to search for the host name used by the AXIS 233D. Multiple domains can be separated by semicolons (;). The host name is always the first part of a Fully Qualified Domain Name, e.g.
  • Page 45 Link-Local IPv4 Address This is enabled by default and assigns the AXIS 233D an additional IP address for use with ™ UPnP . The AXIS 233D can have both a Link-Local IP and a static/DHCP-supplied IP address at the same time - these will not affect each other.
  • Page 46 •When the port is selected automatically it will be displayed in this field. This can be changed by entering a new port number and clicking Save. The FTP server running in the AXIS 233D enables the upload of e.g. new firmware, user applications, etc. Check the box to enable the service.

  • Page 47: Socks

    AXIS 233D - System Options SOCKS SOCKS is a networking proxy protocol. The AXIS 233D can be configured to use a SOCKS server to reach networks on the other side of a firewall/proxy server. This functionality is useful if the AXIS 233D is located on a local network behind a firewall, but notifications, uploads, alarms, etc., need to be sent to a destination outside the local network (e.g.

  • Page 48: Snmp

    IP addresses and port numbers should be used for multicast streams. For more information, please see the online help. Bonjour The AXIS 233D includes support for Bonjour. When enabled, the camera is automatically detected by operating systems and clients that support this. Ports & devices I/O Ports - The pinout, interface support and the control and monitoring functions are described in the section on the I/O terminal connector blocks, on page 54.
  • Page 49 Restore button. The settings will be restored to the previous configuration. Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. AXIS 233D - System Options...

  • Page 50: Support

    AXIS 233D - System Options Support The support overview page provides valuable information on troubleshooting and contact information, should you require technical assistance. System Overview - is a quick look over the camera’s status and settings. Information that can be found here includes the camera’s Firmware version, IP address, Security, Optional Network Services, Event Settings, Image settings and Recent log items.

  • Page 51: About

    5. When the status indicator displays green (which can take up to 1 minute) the process is complete and the camera has been reset to factory default. 6. Re-assign the IP address in the AXIS 233D using one of the methods described in this document. AXIS 233D - System Options...

  • Page 52: I/O Terminal Connectors

    AXIS 233D - I/O terminal Connectors I/O terminal Connectors The AXIS 233D Network Dome Camera has 3 (8 pin) connectors. The inputs/outputs are used in applications for, e.g. event triggering, time lapse recording, alarm notification via email, picture storage to FTP locations...

  • Page 53: Power Connections

    AXIS PS-24 (or 18-30 VAC) max 25VA power consump- tion GND/DC- Note: Ext.Vout = 12V/200mA For information about connecting auxiliary Audio power and audio see “I/O terminal connector blocks” (page -54). AXIS 233D - I/O terminal Connectors AC/DC+ GND/DC- Power/Audio 1 2 3...

  • Page 54: I/O Terminal Connector Blocks

    AXIS 233D - I/O terminal Connectors I/O terminal connector blocks Function Power/Audio Power Power Vout Line OUT Mic/Line IN Output Out1_1_relay Out1_2_relay Out2_1_relay Out2_2_relay Out3_1_relay Out3_2_relay Out4_1_relay Out4_2_relay Input In1_anode(+) In1_cathode(-) In2_anode(+) In2_cathode(-) In3_anode(+) In3_cathode(-) In4_anode(+) In4_cathode(-) Description AXIS PS-R (or22 - 40 VDC) max 20W power consumption.
  • Page 55 AXIS 233D - I/O terminal Connectors Schematic Diagram - AXIS 233D I/O connectors and power...

  • Page 56: Troubleshooting

    3. In the Upgrade Server section and browse to the desired firmware file on your computer. Click Upgrade. Notes: After starting the process, you should always wait at least 20 minutes before restarting the AXIS 233D, even if you suspect the procedure has failed.

  • Page 57: Emergency Recovery Procedure

    2. If the unit does not reply within a few seconds, restart it and wait for a reply. Press CTRL+C to stop Ping. 3. Open a browser and type in the AXIS 233D’s IP address. In the page that appears, use the Browse button to select the upgrade file to use, e.g. axis233d.bin. Then click the Load button to restart the upgrade process.

  • Page 58: Led Indicator Flash Routine

    AXIS 233D - Troubleshooting LED Indicator flash routine Case Normal boot sequence Hard Factory Default Flash Upgrade No Network AXIS DynDNS Bad Checksum Color Description Unlit Power on RFL check Amber Kernel booting System initiating Green Shows steady green for 10 sec. for normal operation after restart.

  • Page 59: Support

    AXIS 233D - Troubleshooting Support If you contact Axis Customer Services, please help us help you resolve your problems expediently by providing a server report, log file and a brief description of the problem. Server Report - go to Setup > System Options > Support Overview. The server report contains important information about the server and its software, as well as a list of the current parameters.

  • Page 60: Symptoms, Possible Causes And Remedial Actions

    You may need to type this in manually (i.e. http or https) in the browser’s address field. 1) Move the AXIS 233D to an isolated network or to one with no DHCP or BOOTP server. Set the IP address again, using AXIS IP Utility or the ARP Ping command.
  • Page 61 Check with your network administrator that the multicast addresses used by the in the client. AXIS 233D are valid for your network. Check with your network administrator to see if there is a firewall preventing viewing. Multicast MPEG-4 only accessi- Check if your router supports multicasting, or if the router settings between the client and the ble by local clients.

  • Page 62: Technical Specifications

    Frame rates (NTSC/PAL) Video streaming Image settings Pan/Tilt/Zoom Specification • AXIS 233D Network Dome Camera 60 Hz • AXIS 233D Network Dome Camera 50 Hz • 1/4” ExView HAD Progressive Scan CCD • F1.4 - 4.2 • F=3.4 - 119mm •...
  • Page 63 Video access from Web • Camera live view for up to 20 clients browser • Video recording to file (ASF) • Sequence tour for up to 20 Axis video sources • Customizable HTML pages. AXIS 233D - Technical Specifications C (23 - 113...
  • Page 64 AXIS 233D - Technical Specifications Item Minimum web browsing requirements System integration support Supported protocols Accessories (included) Video management software (not included) Accessories (not included) Approvals - EMC Dimensions (HxWxD) and weight Specification • Pentium III CPU 500 MHz or higher or equivalent AMD •...

  • Page 65: General Performance Considerations

    To see the bandwidth and frame rate currently required by the video stream, the AXIS 233D provides a tool that can be used to display these values directly in the video image. To do this, special format strings are added as part of a text overlay.

  • Page 66: Frame Rates

    Test results show the frame rates in frames/second (fps) for Motion JPEG streams from the AXIS 233D, using a compression level of 50% is 25 fps for PAL and 30 fps for NTSC. Note that these values are guidelines only - actual values may vary.
  • Page 67 AXIS 233D - Technical Specifications...

  • Page 68: Index

    AXIS 233D Index 802.1x 40 Accessing the video stream 16 Action Buttons 10 Action buttons 28 Active/Inactive 10, 28 ActiveX Controls 9 Advanced TCP/IP settings 44 Alarm 33, 37, 52 Alarm inputs 52 AMC 11, 12 AMC (AXIS Media Control) 11, 12, 16, 23...
  • Page 69 SNMP 48 Specifications 62 Streaming MPEG-4 15 Support 50 System Options 39 TCP Server 33 Time Mode 42 Triggered Event 33, 34 Troubleshooting 56 UDP 14 Unicasting 14 Upgrade Server 49 UPnP 45, 48 User defined links 27 AXIS 233D...
  • Page 70 AXIS 233D Variable bit rate 13 Video format 10 Video Stream 19 Wide dynamic range 20...
