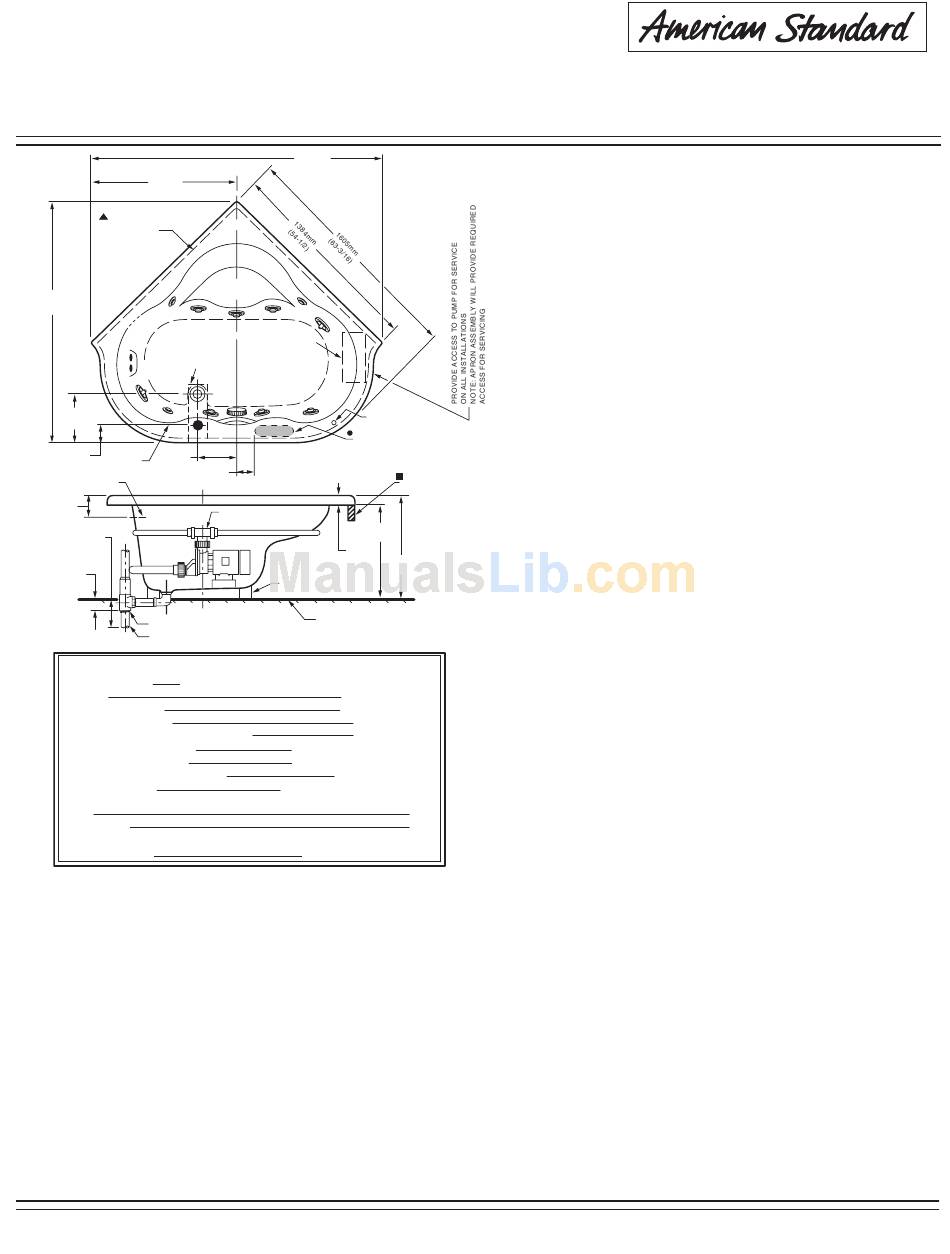

American Standard CADENZA 751711-100 Installation Instructions

CADENZA™
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
975mm
(38-3/8)
OUTLINE OF
CUTOUT
1661mm
(65-3/8)
178mm x 381mm
(7 x 15) CUTOUT
346mm
(13-5/8)
143mm
254mm
C/L OF
(5-5/8)
(10)
DRAIN
114mm
C/L OF OVERFLOW
89mm
(3-1/2)
83mm
(3-1/4)
38mm
(1-1/2)
1-1/2 N.P.T. THREAD
1-1/2 O.D. TAILPIECE
GENERAL SPECIFICATIONS FOR 6060 WHIRLPOOL
76-3/4 x 65-3/8 x 21-1/2 In. (1949 x 1661 x 546mm)
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
3
CUBE (FT )
WHIRLPOOL ELECTRICAL SPECIFICATIONS
SYSTEM II PUMP

GENERAL INSTALLATION INFORMATION

Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor
immediately.
After inspection and during installation, protect the bath from construction damage. After installation, and before
enclosing with wallboard, tile, etc., water test the unit and check for leaks.
Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect
the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,
motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead
(required for recess installations).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.
WARNING! Do not lift whirlpool by the piping harness at any time.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
751711-100 REV. G
6060.XXXWSERIES
WHIRLPOOL

INSTALLATION INSTRUCTIONS

1949mm
(76-3/4 REF.)
C/L
SEAT AREA
PUMP
ON/OFF SWITCH
RECOMMENDED FITTING
LOCATION 64 X 381mm (2-1/2 X 15)
(4-1/2)
E-Z-Install™ HEATER
495mm
(19-1/2)
51mm
(2)
INTEGRAL FEET
SUPPORT
ROUGH FLOOR
105 Lbs. (48 Kg.)
822 Lbs. (370 Kg.)
86 Gal. (326 L)
71 Gal. (269 L)
45 x 40 In. (1143 x 1016mm)
49 x 43 In. (1245 x 1092mm)
15-3/8 In. (391mm)
24 Lbs./Sq.Ft. (114 Kgs./Sq.m)
2.1 HP, 15.6 AMPS,120V.
TH ANK YO U ...
for selecting an American Standard bath. Your new
bath is shipped to you after careful inspection. The
whirlpool version is completely assembled with pump,
motor, and system piping. All you need to finish the
installation are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure from
this product, please follow the instructions and
cautions.
List of Optional Components (not included):
• Apron Kit 0707.200*
• Tile Bead Kit 751755-100*
List of Required Components (not included):
LEVELING STRINGER
NOT FOR SUPPORT
• Drain 1583.470*
* see your American Standard Distributor
546mm
(21-1/2)
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
• Caulking Gun
41.7
68.4
• Bath Filler*
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2 Stringers
• Drop Cloth
• 20 amp GFI Outlet
• Cement, Plaster, Grout
© American Standard Inc. 2007
All product names listed herein are trademarks
of American Standard Inc. unless otherwise noted.
