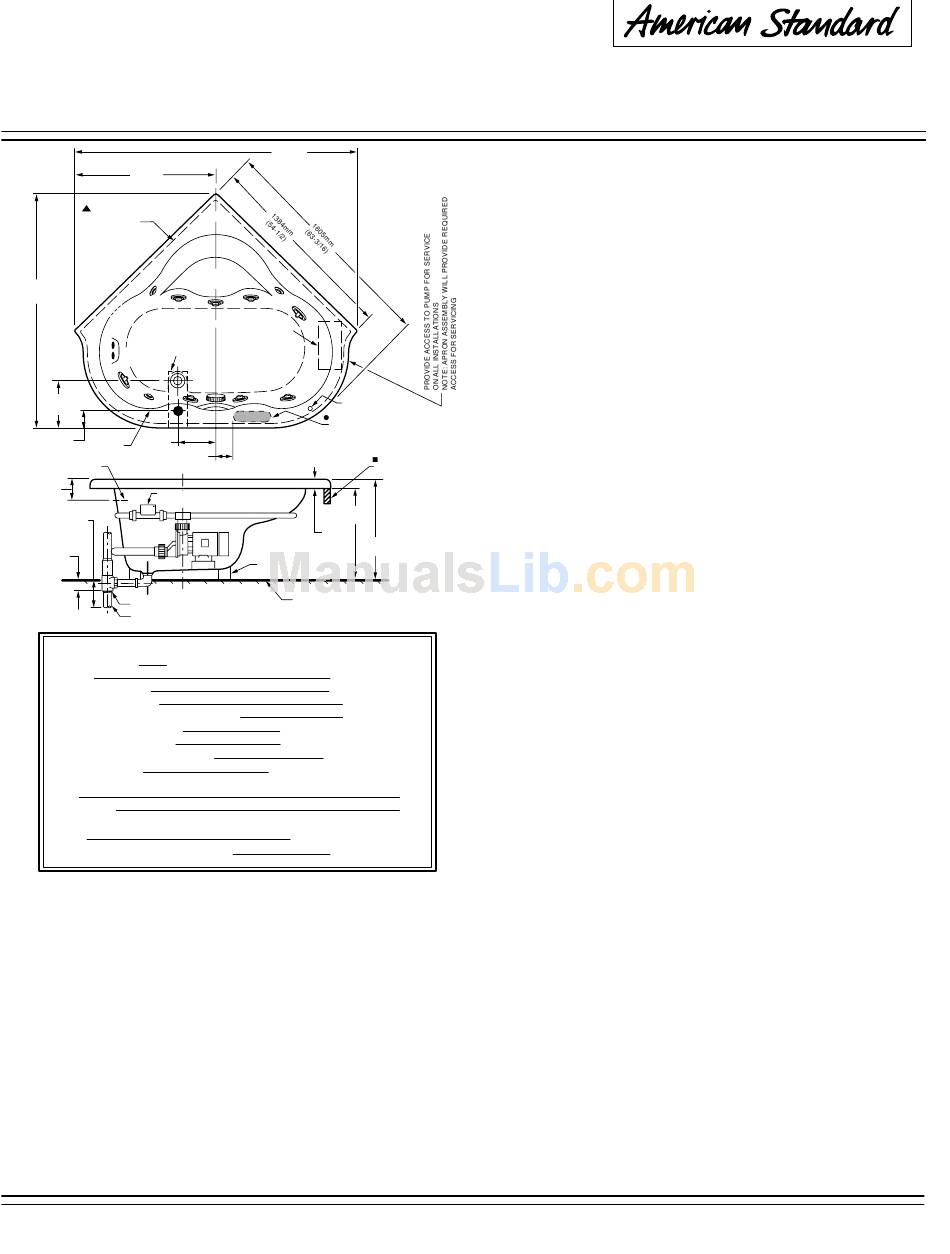

CADENZA ELITE™
HIGH GLOSS ACRYLIC
SHOWN LESS ALL FITTINGS
975mm
(38-3/8)
OUTLINE OF
CUTOUT
1661mm
(65-3/8)
178mm x 381mm
(7 x 15) CUTOUT
346mm
(13-5/8)
143mm
254mm
C/L OF
(5-5/8)
(10)
DRAIN
114mm
(4-1/2)
C/L OF OVERFLOW
89mm
(3-1/2)
E-Z INSTALL WHIRLPOOL
HEATER
83mm
(3-1/4)
38mm
(1-1/2)
1-1/2 N.P.T. THREAD
1-1/2 O.D. TAILPIECE
GENERAL SPECIFICATIONS FOR 6060E WHIRLPOOL
INSTALLED SIZE
76-3/4 x 65-3/8 x 21-1/2 In. (1949 x 1661 x 546mm)
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT
3
)
WHIRLPOOL ELECTRICAL SPECIFICATIONS
PUMP
E-Z INSTALL WHIRLPOOL HEATER
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any shipping damage. If such damage is found, report it to your vendor
immediately.
After inspection and during installation, protect the bath from construction damage. After installation, and before
enclosing with wallboard, tile, etc., water test the unit and check for leaks.
Do not make modifications to the whirlpool system or remove pump from factory mounting. This could adversely affect
the safety and performance of the whirlpool and void the warranty. Do not handle or move the whirlpool by the pump,
motor, or piping system.
Fittings (bath filler, shower arm, etc.) are not provided with the bath and must be ordered separately. Framing and
enclosing materials are provided by others. Check for availability of optional American Standard wall tiling bead
(required for recess installations).
Protect all finished surfaces of the whirlpool during construction and installation using a drop cloth.
WARNING! Do not lift whirlpool by the piping harness at any time.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
752864-100 Rev. C
6060E SERIES
WHIRLPOOL
INSTALLATION INSTRUCTIONS
1949mm
(76-3/4 REF.)
C/L
SEAT AREA
PUMP
ON/OFF SWITCH
RECOMMENDED FITTING
LOCATION 64 X 381mm (2-1/2 X 15)
495mm
(19-1/2)
51mm
(2)
546mm
(21-1/2)
INTEGRAL FEET
SUPPORT
ROUGH FLOOR
105 Lbs. (48 Kg.)
822 Lbs. (370 Kg.)
86 Gal. (326 L)
71 Gal. (269 L)
45 x 40 In. (1143 x 1016mm)
49 x 43 In. (1245 x 1092mm)
15-3/8 In. (391mm)
24 Lbs./Sq.Ft. (114 Kgs./Sq.m)
2.1 HP, 14.4 AMPS,120V.
12.0 AMPS,120V.
THANK YOU...
for selecting an American Standard bath. Your new
bath is shipped to you after careful inspection. The
whirlpool version is completely assembled with pump,
motor, and system piping. All you need to finish the
installation are your selected fittings and electrical
connections for a whirlpool.
To insure maximum performance and pleasure from
this product, please follow the instructions and
cautions.
List of Optional Components (not included):
• Flex-Jet Pulse Jet Kit*
• Flex-Jet Soft Jet Kit*
• Apron Kit*
LEVELING STRINGER
NOT FOR SUPPORT
• Tile Bead Kit*
List of Required Components (not included):
• Drain*
* see your Home Depot Retailer
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard
Woodworking Tools
• Personal Safety
41.7
Equipment
68.4
• Caulking Gun
• Bath Filler*
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 3 or 2 x 2
Stringers
• Drop Cloth
• 15 amp GFI & 20 amp
GFI Outlet
• Cement, Plaster,
Grout
© American Standard Inc. 2003
All product names listed herein are trademarks
of American Standard Inc. unless otherwise noted.
