INSTALLATION AND OPERATION MANUAL
FOR EVERCLEAN
MODEL 2422L.068C
MODEL 2771L.068C
MODEL 2645L.068C
MODEL 7236L.068C
MODEL 2425L.168C
MODEL 2425L.268C

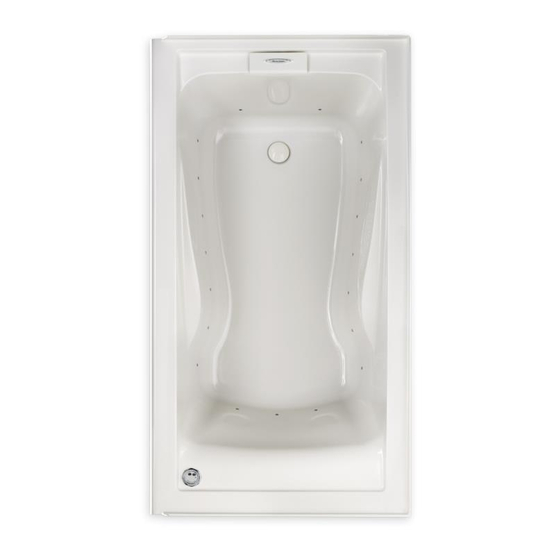

THANK YOU...
for selecting an American Standard bath. Your new bath is shipped to you after careful inspection. The air bath is
completely assembled with air blower and system piping. All you need to finish the installation are your selected
fittings and electrical connections.
To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
© AS Americas Inc. 2010
All product names listed herein are trademarks
of AS Americas Inc. unless otherwise noted.
/EVOLUTION
™
2422V.068C
2771V.068C
2645V.068C
7236V.068C
2425V.168C
2425V.268C
5' x 32"
5' x 36"
OVAL
6' x 36"
5' x 32" IA-RHO
5' x 32" IA-LHO
1
AIR BATHS
™
754072-100 Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for American Standard EVERCLEAN 2422L.068C
Summary of Contents for American Standard EVERCLEAN 2422L.068C
-
Page 1: Thank You
THANK YOU... for selecting an American Standard bath. Your new bath is shipped to you after careful inspection. The air bath is completely assembled with air blower and system piping. All you need to finish the installation are your selected fittings and electrical connections. -
Page 2: Table Of Contents
TABLE OF CONTENTS: Safety Instructions................Page 3 General Information................Page 4 Optional Components...............Page 4 Specifications..................Page 5 Roughing-in Reference..............Page 6 Framing and Support Instructions.............Page 7 Mounting Instructions................Page 8 Electrical Connections...............Page 9 Remote Blower Location Option............Page 10 Post Installation Clean-up..............Page 11 Operation: Air Bath................Page 12 Cleaning and Maintenence..............Page 13 Warranty....................Page 14 754072-100 Rev. -
Page 3: Safety Instructions
Use this unit only for its intended use as described in this manual. Do not use any attachments not recommended by American Standard. The unit must be connected only to a supply circuit that is properly protected by a ground-fault circuit-interrupter (GFCI). -
Page 4: General Information
For electrical requirements, refer to section titled “Air Bath Electrical Installation Instructions” . Check for availability of optional American Standard wall tiling bead (required for recess installation). Protect all finished surfaces of the air bath during construction and installation using a drop cloth. -
Page 5: Specifications
SPECIFICATIONS: SIDE VIEW END VIEW DRAIN / OVERFLOW GENERAL SPECIFICATIONS FOR EVOLUTION AIR BATHS Description Dimensions Drain / Height to Cut Out Rough-In Tub Edge to Weight with Product Apron / Gallon to L-W-H Overflow Underside Pier Recess Centerline Water / Floor Weight Mounting Overflow... -
Page 6: Roughing-In Reference
ROUGHING-IN REFERENCES 6' x 36" (MODEL 7236L / V.068C) 5' x 32" (MODEL 2422L / V.068C) 72" 60" (1829mm) 11" (1524mm) (279mm) 3-1/4" (83mm) 13-3/4" 13-3/4" (349mm) 3" (349mm) 7-3/4" (76mm) 3" (197mm) 36" (76mm) 32" 6" (914mm) (813mm) (152mm) 6"... -
Page 7: Framing And Support Instructions
SEALANT (610 mm) BE SUPPORTED BY STUD WALL OR ACCESS PANEL MUST BE LOCATED AMERICAN STANDARD ON THE SAME SIDE AS THE AIR BATH. ACCESS PANEL MUST BE LOCATED APRON KIT BATH ON THE SAME SIDE AS THE AIR BATH. -
Page 8: Mounting Instructions
TYPICAL FLANGE MOUNTING DETAIL SUGGESTED AIR BATH / BATH INSTALLATION METHOD WOOD STUDS STEEL STUDS STEEL STUD STUD WASHER WATERPROOF DRYWALL WATERPROOF DRYWALL OR CEMENT BOARD OR CEMENT BOARD TILE TILE ROOFING NAIL SEALANT SEALANT 4" (102mm) DRYWALL SCREW 1" x 3" (25 x 76mm) WOOD 1"... - Page 9 AIR BATH ELECTRICAL INSTALLATION INSTRUCTIONS All wiring must be performed by a licensed electrician in accordance with the national electrical code and all other applicable codes. WARNING: When using electrical products, basic precautions should always be observed, including the following: 1.
-
Page 10: Electrical Connections
REMOTE BLOWER LOCATION OPTION IMPORTANT! It is not necessary that the blower motor be relocated. This option is provided for the case that a particular installation makes this effort practical. NOTE: Relocating blower motor from factory installed location, see photo 1, will require disassembly of air blower from mounting board. -
Page 11: Post Installation Clean-Up
POST INSTALLATION CLEAN-UP Remove all construction debris from bath. Tile grout can be removed with a wooden popsicle stick or tongue depressor. Do not use wire brushes or any other metal implement on bath surface. Post installation clean-up generally can be completed using warm water and liquid dishwashing detergent. Stubborn dirt or stains may be removed using granular Spic and Span ®... -
Page 12: Operation: Air Bath
Operation: Air Bath BATHING: • Close drain by rotating Drain Overflow Knob COUNTER-CLOCKWISE • Fill bath with water at a comfortable bathing temperature, adding bath oils or salts as desired. OPERATING AIR MASSAGE SYSTEM: ON/OFF: Press this button once to turn air-blower on. Press again to turn air-blower off. -
Page 13: Cleaning And Maintenence
Your American Standard whirlpool is designed to give you many years of pleasure with reasonable care and maintenance. Your new acrylic bathtub is tough, durable and easy to care for. The colors have been formulated to match other American Standard fixtures and enhance your choice of bathroom decorations. The high gloss surface will retain its lasting luster with proper care and maintenance. -
Page 14: Warranty
AS America, Inc. (” American Standard”) warrants to the original consumer purchaser that it will, at its option, repair or replace this air bath or any of its parts that are found by American Standard, in its sole judgment, to be defective under normal residential use and maintenance so long as it is owned by the original consumer purchaser.
