American Standard Cadenza Elite 6060EC Features & Dimensions

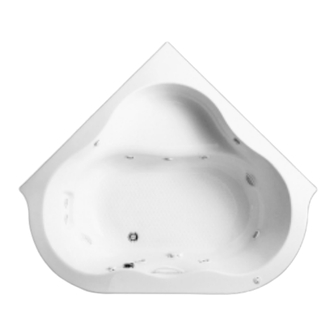

CADENZA ELITE™ CORNER WHIRLPOOL
Comfortable two person design with dual back
support positions, integral seat and installed
grab bar. Includes factory installed E-Z-
Install™ Whirlpool Heater .
6060E (specify White 020, Bone 021, or
Linen 222)
• Acrylic with fiberglass reinforcement
• 2.0 HP self-draining pump/motor
with dry run seal
• Ten multi-directional and flow adjustable jets
including:
Two high performance Ideal-flow™ Jets
Eight interchangeable Flex-jets™
• Three silent air volume controls
• Deck-mounted On/Off control
• Complete factory installed and tested
whirlpool system
6060EC (specify White 020, Bone 021, or
Linen 222)
• Same as above with the StayClean™
whirlpool system featuring Antimicrobial
AlphaSan®
Nominal Dimensions:
54-1/2" x 54-1/2" x 21-1/2"
(1384 x 1384 x 546mm)
Installed Size: 76-3/4" x 65-3/8" x 21-1/2"
(1949x 1661 x 546mm)

Components Needed:

Bath Filler*: (specify finish)
Bath Drain: BATH-DRAIN
(specify Chrome 002, Polished Brass 099,
or Satin 295)

Custom Accessories Available:

Pulse Jet Kit: PULSE-JET (two per kit, specify
White 020, Bone 021, or Linen 222)
Soft Jet Kit: SOFT-JET (two per kit, specify
White 020, Bone 021, or Linen 222)
Corner Apron: CORNER-APRON (specify
White 020, Bone 021, or Linen 222)
Tile Bead Kit: TILE-BEAD
* See American Standard Faucet Selector
Revised 10/03
CADENZA ELITE™ CORNER
WHIRLPOOLS BY AMERICAN STANDARD

Compliance Certifications -

Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
NOTE: Roughing-in dimensions and product
specifications shown on reverse side of page.
NOTE: E-Z-Install™ Whirlpool Heater is designed to
maintain water temperature during operation. It will not
heat cold water to desired bathing temperature.
SPS 6060E
© 2003 American Standard Inc.
HIGH GLOSS ACRYLIC
HD-001
