4.2.6 Serial Port Setup

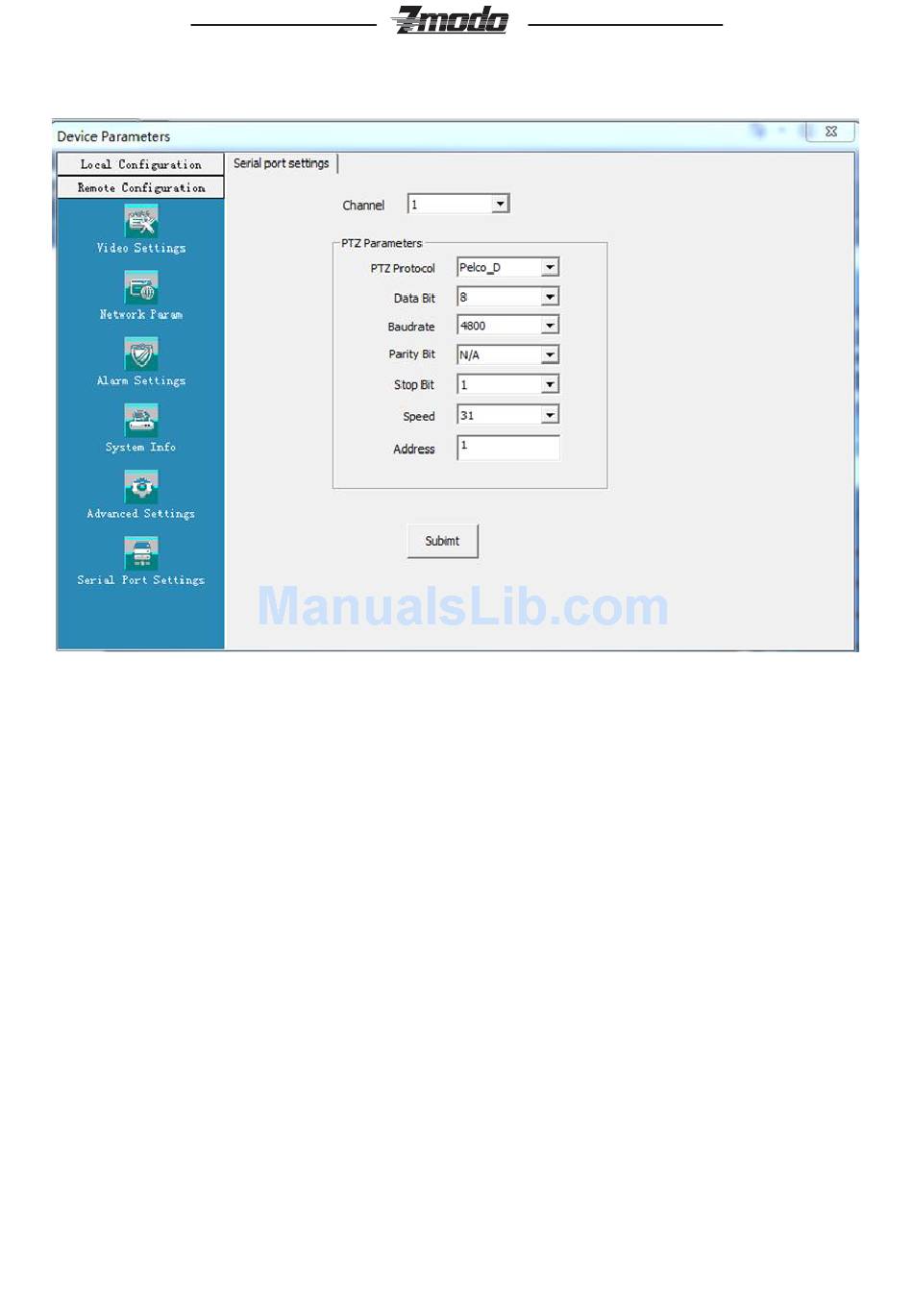

Figure 4-20 Serial port setting
The serial port settings are for use with an RS-485 interface. The serial port
settings must be configured exactly the same as the dip switches for the
camera. If all the settings are not correct, the camera's movement will not work
properly.
[Channel] Select the channel of device.
[PTZ Protocol] Indicates the communication protocol setting. Select Pelco_D or
Pelco_P. Make sure to use the same protocol as the PTZ device.
[PTZ Speed] Ranging from 1~64
[PTZ Address] Ranging from 1~255
[Data Format] The setting of RS485 communication data format includes Bitrate,
Data Bit, Stop Bit, and Parity Bit
After setting all parameters, click the [Submit] button. The settings will take effect
immediately.
