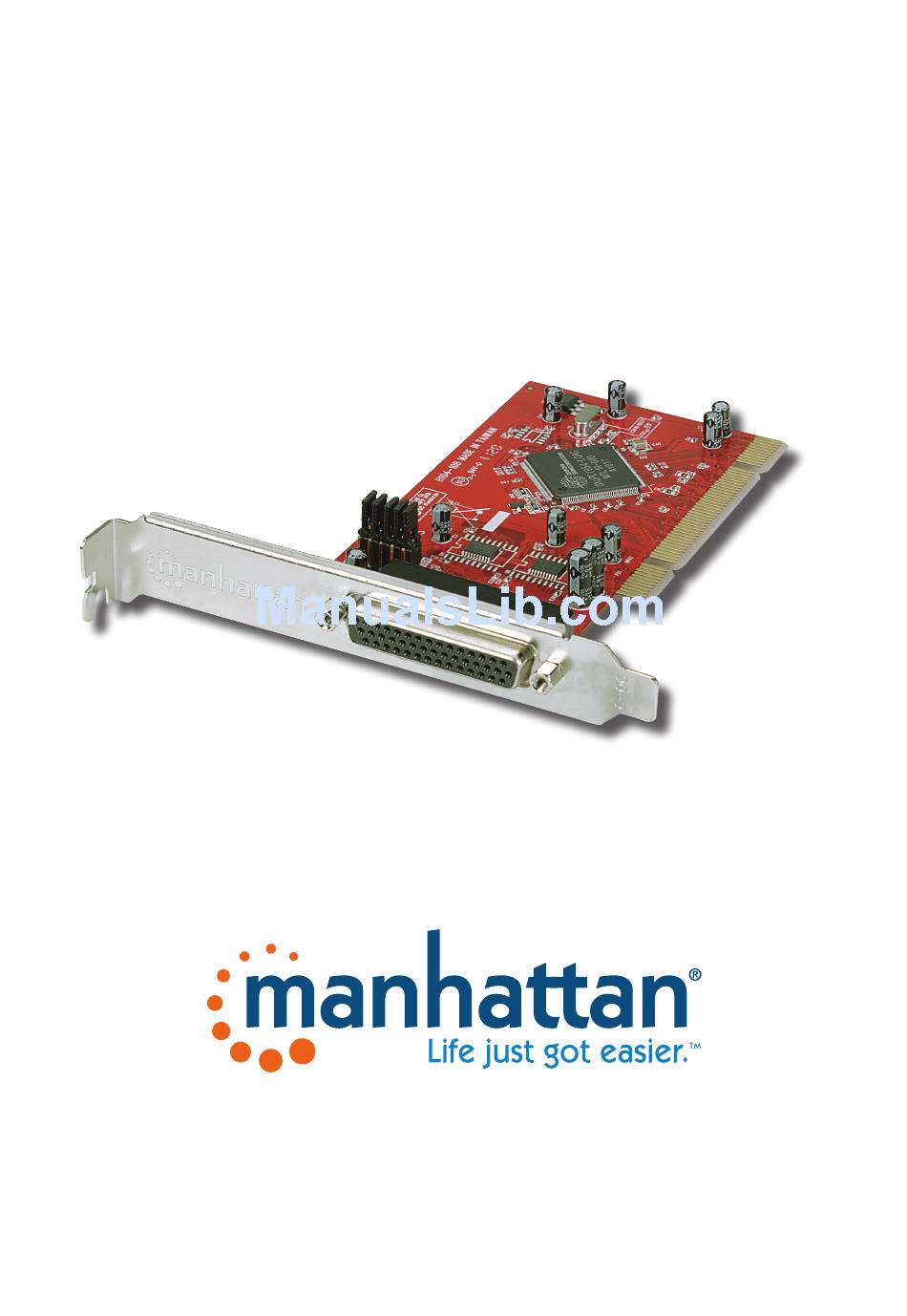

- Page 1 SERIAL CARD WITH 5 V POWER OUTPUT USER MANUAL MODEL 175586 manhattan-products.com MAN-175586-UM-0213-03...

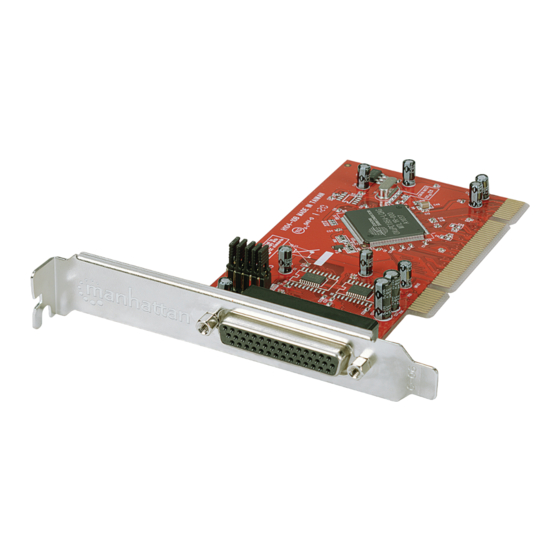

- Page 2 ® Model 175586. Compatible with most RS232 peripherals, the Manhattan Serial PCI Card with 3.3 V and 5 V Power Output includes an adapter that can attach up to four independent serial devices — modems, barcode scanners, printers and more — through a single PCI card.
-
Page 3: Verifying Installation
INSTALLATION 1. Power off the system. Insert the PCI Card into an available PCI slot. 2. Power up the system, and insert the driver CD into your CD-ROM/DVD drive. 3. When Windows displays the Found New Hardware Wizard, click Next. 4. - Page 4 SETTING THE FREQUENCY After the driver installation (above), the data rate frequency needs to be set for proper operation. 1. Right-click “PCI Communications Port (COM3)” and select “Properties.” 2. Click on the Data Rate tab. 3. In the Input Clock panel, select “14.745 MHz” from the “Crystal Frequency (MHz)” drop-down menu, or click “Detect Crystal Frequency”...
-
Page 5: Specifications
SPECIFICATIONS Standards and Certifications • CE • FCC • PCI 3.0 • PCI Power Management Specification 1.1 • RoHS • WEEE Ports • (4) serial DB9 male connection • Up to 460 kbps throughput (230 kbps effective rate) • OxFord chipset •...
