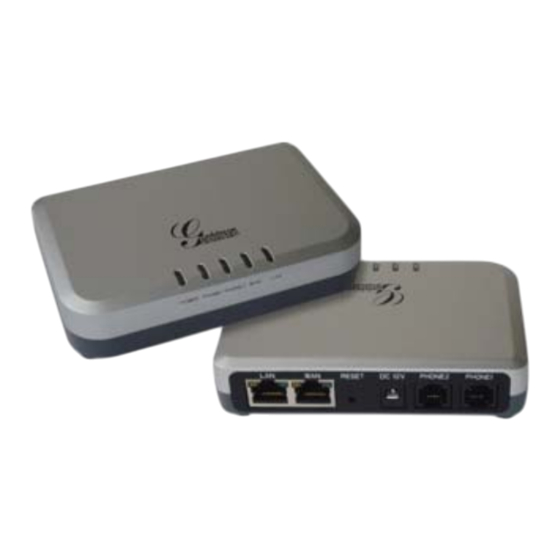

- Page 1 Grandstream Networks, Inc. HT– 502 Dual FXS Port Analog Telephone Adaptor HT–502 User Manual www.grandstream.com Firmware Version 1.0.0.39 support@grandstream.com...
-
Page 2: Table Of Contents
ANAGING IRMWARE AND ONFIGURATION OWNLOAD RESTORE FACTORY DEFAULT SETTING....................31 ........................31 ESET IA THE ESET UTTON IVR............................31 ESET GLOSSARY OF TERMS ..........................32 Grandstream Networks, Inc. HT-502 User Manual Page 2 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... - Page 3 CREENSHOT OF ASIC ETTINGS ONFIGURATION 3. S FXS P CREENSHOT OF ONFIGURATION OGIN 4. S FXS P CREENSHOT OF ONFIGURATION 5. S CREENSHOT OF TATUS ONFIGURATION Grandstream Networks, Inc. HT-502 User Manual Page 3 of 35 Firmware 1.0.0.39 Last Updated: 03/2007...
-
Page 4: Welcome
Thank you for purchasing Grandstream’s HT–502, the affordable, feature rich Analog Telephone Adaptor. Grandstream HandyTone-502 is a new addition to the popular HandyTone ATA product family. It features the rich audio quality, a broad range of voice codecs, and functionality of the HT–502, including two (2) FXS ports each with independent SIP accounts. -
Page 5: Configure Your Ht-502
PHONE2 (RJ-11) FXS port to be connected to analog phones / fax machines. There are five (5) LED buttons that help you manage the status of your HandyTone. Grandstream Networks, Inc. HT-502 User Manual Page 5 of 35 Firmware 1.0.0.39... -
Page 6: Configure Your Ata
5. Insert the power adapter into the HT–502 and connect it to a wall outlet. 2: C HT–502 IGURE ONFIGURING THE Internet ADSL/Cable Modem Ethernet Analog Phone Analog Phone Cordless Cordless Phone Phone Grandstream Networks, Inc. HT-502 User Manual Page 6 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... -
Page 7: Product Overview
PSTN Pass – Voice Mail Remote DHCP Voice Codec Ports Port through Indicator Configuration iLBC, G.711, G.723, 16/24/32/48), 2 RJ-45 (LAN) Server/Client G.726( TFTP/HTTP T.38, G.729A/B/E Grandstream Networks, Inc. HT-502 User Manual Page 7 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... -
Page 8: Table 3: Ht-502 Technical Specifications
(DND), call-return service Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID Caller ID Polarity Reversal Wink EN55022/EN55024 and FCC part15 Class B Safety Grandstream Networks, Inc. HT-502 User Manual Page 8 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... -
Page 9: Basic Operations
Preferred Vocoder Press “9” to move to the next selection in the list: • PCM U • PCM A • iLBC • G-726 • G-723 Grandstream Networks, Inc. HT-502 User Manual Page 9 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... -
Page 10: Placing A Phone Call
2. Dial an outside number (e.g. (626) 666-7890), first enter the prefix number (usually 1+ or international code) followed by the phone number. Press # or wait for 4 seconds. Check with your VoIP service provider for further details on prefix numbers. Grandstream Networks, Inc. HT-502 User Manual Page 10 of 35 Firmware 1.0.0.39... -
Page 11: Direct Ip Calls
Call waiting tone (3 short beeps) indicates an incoming call, if the call waiting feature is enabled. Toggle between incoming call and current call by pressing the “flash” button. First call is placed on hold. Press the “flash” button to toggle between two active calls. Grandstream Networks, Inc. HT-502 User Manual Page 11 of 35 Firmware 1.0.0.39... -
Page 12: Call Transfer
3. If C answers the call, then A presses FLASH to bring B, C in the conference. 4. If C does not answer the call, A can press FLASH back to talk to B. 5. If A presses FLASH during conference, C will be dropped out Grandstream Networks, Inc. HT-502 User Manual Page 12 of 35 Firmware 1.0.0.39... -
Page 13: Call Features
Toggles between active call and incoming call (call waiting tone). If not in conversation, flash/hook will switch to a new channel for a new call. Pressing pound sign will serve as Re-Dial key. Grandstream Networks, Inc. HT-502 User Manual Page 13 of 35 Firmware 1.0.0.39... -
Page 14: Sending And Receiving Fax
2) check when pre/suffix changes, and 3) never upgrade WAN P CCESS Select voice menu option 12 to enable WAN Port Wed Access of the device configuration pages. Grandstream Networks, Inc. HT-502 User Manual Page 14 of 35 Firmware 1.0.0.39... -
Page 15: Configuring The Ht-502 Using The Web Browser
NOTE: If using a web browser to enter the configuration page, strip the leading “0”s because the browser will parse in octet. (i.e. if the IP address is: 192.168.001.014, please type in: 192.168.1.14). Grandstream Networks, Inc. HT-502 User Manual Page 15 of 35 Firmware 1.0.0.39... -
Page 16: End User Configuration
Yes. If using a Public IP address, set this parameter to No. 3. NAT Traversal (under the Profile web pages) Set this to Yes when gateway is behind firewall on a private network. Grandstream Networks, Inc. HT-502 User Manual Page 16 of 35 Firmware 1.0.0.39... -
Page 17: Dtmf Methods
The HT-502 supports a broad range of voice codecs. Under Profile web pages, choose your preferred order of different codecs: • PCMU/A (or G711µ/a) • G729 A/B/E • G723 • G726 (16/24/32/40) • iLBC Grandstream Networks, Inc. HT-502 User Manual Page 17 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... -
Page 18: Table 7: Ht-502 Basic Configuration Settings Definitions
7: HT–502 B ABLE ASIC ONFIGURATION ETTINGS EFINITIONS Grandstream Networks, Inc. HT-502 User Manual Page 18 of 35 Firmware 1.0.0.39 Last Updated: 03/2007... - Page 19 This field is optional. If your ISP uses a service name for the PPPoE connection, enter the service name here. Default is blank. Name Time Zone Controls how the date/time is displayed according to the specified time zone. Grandstream Networks, Inc. HT-502 User Manual Page 19 of 35 Firmware 1.0.0.39 Last Updated: 03/2007...
- Page 20 Forwards a matching (TCP/UDP) port to a specific LAN IP address with a specific (TCP/UDP) port. In addition to the Basic Settings configuration page, end users also have access to the Device Status page. Grandstream Networks, Inc. HT-502 User Manual Page 20 of 35 Firmware 1.0.0.39...
-
Page 21: Advanced User Configuration
This field is case sensitive. Only the administrator can configure the “Advanced Settings” page. Password field is purposely left blank for security reasons after clicking update and saved. The maximum password length is 25 characters. Grandstream Networks, Inc. HT-502 User Manual Page 21 of 35 Firmware 1.0.0.39... - Page 22 Via HTTP Server The URL for the HTTP server used for firmware upgrade and configuration via HTTP. For example, ttp://provisioning.mycompany.com:6688/Grandstream/1.0.0.34 “:6688” is the specific TCP port where the HTTP server is listening; it can be omitted if using default port 80.
-
Page 23: Table 10: Ht-502 Individual Account Settings Definitions
IP address or Domain name of Outbound Proxy, or Media Gateway, or Session Border Controller. Used by HT–502 for firewall or NAT penetration in different network environments. If symmetric NAT is detected, STUN will not Grandstream Networks, Inc. HT-502 User Manual Page 23 of 35 Firmware 1.0.0.39... - Page 24 This parameter forces the random generation of both the local SIP and RTP ports when set to Yes. This is usually necessary when multiple HT–502 are behind the same NAT. Grandstream Networks, Inc. HT-502 User Manual Page 24 of 35 Firmware 1.0.0.39...
- Page 25 2. Grammar: x - any digit from 0-9; a. xx+ - at least 2 digit number; b. ^ - exclude; c. [3-5] - any digit of 3, 4, or 5; Grandstream Networks, Inc. HT-502 User Manual Page 25 of 35 Firmware 1.0.0.39...
- Page 26 T.38 (Auto Detect) FoIP by default, or Pass-Through (must use codec PCMU/PCMA) Fax Tone Detection Default is Callee. This decides whether Caller or Callee sends out the re- Grandstream Networks, Inc. HT-502 User Manual Page 26 of 35 Firmware 1.0.0.39...
-
Page 27: Saving The Configuration Changes
EMOTE Remotely reboot the HT–502 by clicking the “Reboot” button at the bottom of the configuration page. When finished, re-login to the HT–502 after waiting for about 30 seconds. Grandstream Networks, Inc. HT-502 User Manual Page 27 of 35 Firmware 1.0.0.39... -
Page 28: Configuration Through A Central Server
TFTP or HTTP (thus no NAT issues) and other communication protocols to communicate with each individual HT-502 for firmware upgrade, remote reboot, etc. Grandstream provides GAPS service to VoIP service providers. Use GAPS for either simple redirection or with certain special provisioning settings. -
Page 29: Software Upgrade
It is recommended to conduct firmware upgrade in a controlled LAN environment if possible. For users who do not have a local firmware upgrade server, Grandstream provides a NAT-friendly TFTP server on the public Internet for firmware upgrade. Please check the Services section of Grandstream’s Web site to obtain our public TFTP server’s IP address. -
Page 30: Configuration File Download
ONFIGURATION OWNLOAD Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through TFTP or HTTP. “Config Server Path” is the TFTP or HTTP server path for configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be same or different from the “Firmware Server Path”. -
Page 31: Restore Factory Default Setting
Restoring the Factory Default Setting will DELETE all configuration information of the phone. Please BACKUP or PRINT out all the settings before you approach to following steps. Grandstream will not take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP service provider. -
Page 32: Glossary Of Terms
IPv4 is used over Ethernet ATA Analogue Telephone Adapter. Covert analogue telephone to be used in data network for VoIP, like Grandstream HT series products. CODEC Abbreviation for Coder-Decoder. It's an analog-to-digital (A/D) and digital-to-analog (D/A) converter for translating the signals from the outside world to digital, and back again. - Page 33 Grandstream is the second-level domain, and and.com is the top level domain. FXS Foreign eXchange Office. An FXS device can be an analog phone, answering machine, fax, or anything that handles a call from the telephone company like AT&T. They should also operate the same way when connected to an FXS interface.
- Page 34 SIP Session Initiation Protocol, An IP telephony signaling protocol developed by the IETF (RFC3261). SIP is a text-based protocol suitable for integrated voice-data applications. SIP is designed for voice transmission and uses fewer resources and is considerably less complex than H.323. All Grandstream products are SIP based...
- Page 35 VoIP Voice over the Internet. VoIP encompasses many protocols. All the protocols do some form of signaling of call capabilities and transport of voice data from one point to another. e.g.: SIP, H.323, etc. Grandstream Networks, Inc. HT-502 User Manual Page 35 of 35 Firmware 1.0.0.39...
