Shure Conference ONE User Manual page 6

2

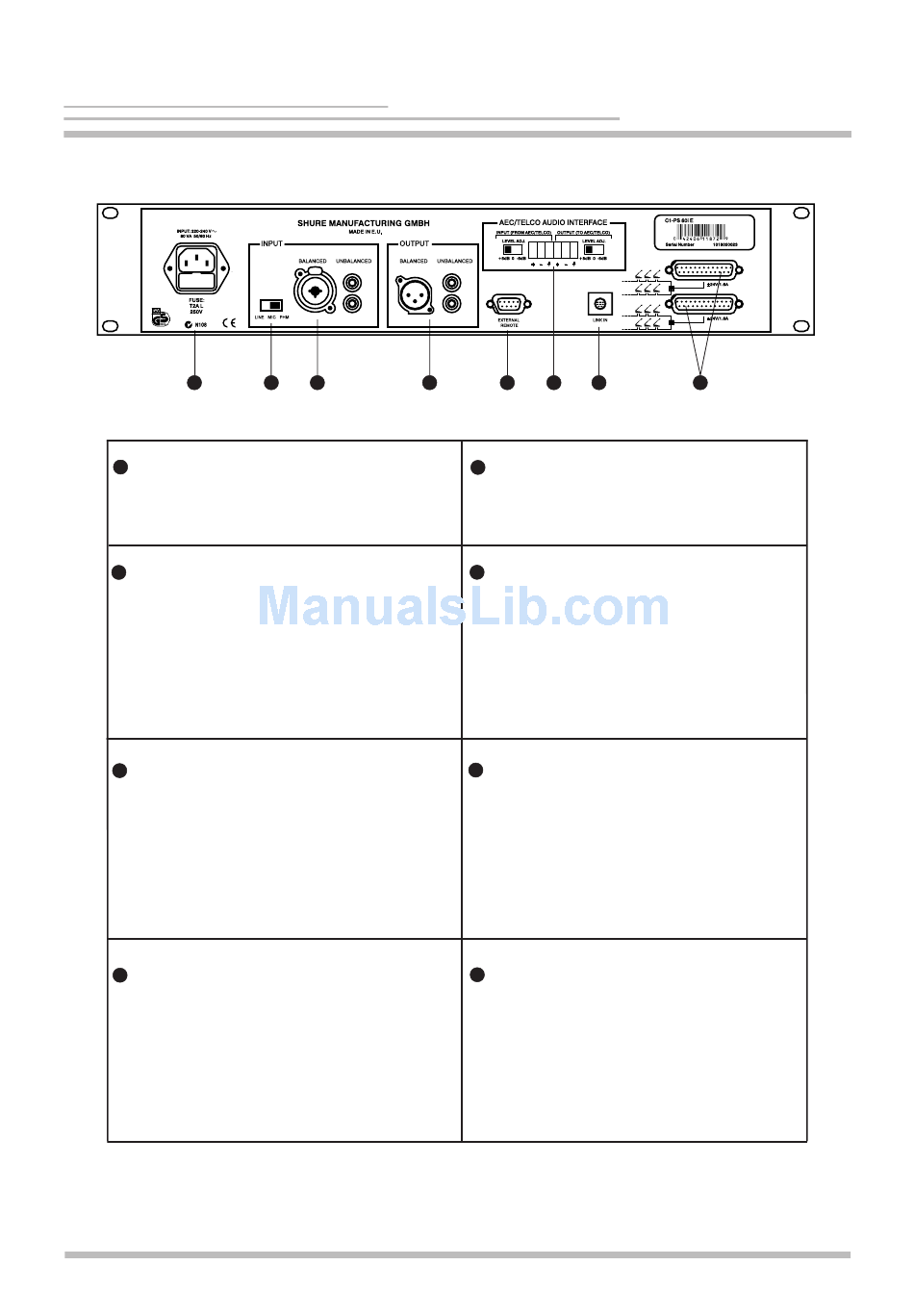

Rear view
Power socket
1
Socket with integrated fuse.
2 Input level + Phantom power switch
Switches the audio input sensitivity
between microphone and line level and
adds phantom power for condenser
microphones.
Audio input (*)
3
Electronically balanced input via the
combined XLR/1/4" jack socket and
unbalanced input via dual female RCA
connectors.
4 Audio output (*)
Electronically balanced output with
XLR-socket or unbalanced output via dual
female RCA connectors. The output carries
a mixed signal of the discussion systems
microphones, the audio input on the power
supply and the signal from the AEC / Telco
audio interface.
(*) Please note that the audio input and output are not suitableto connect to an external tele-
phone hybrid. Please use the ACE / Telco Audio Interface for this purpose.
1 2 3 4 5 6 7
Remote socket
5
SUB-D 9 socket for external control
systems such as Crestron + AMX.
AEC / TELCO AUDIO INTERFACE
6
Balanced Audio Interface to connect an
external phone hybrid or video conference
system through 6-pin block connector
terminal. The slider switches adjust audio
levels to match connected device. Please
note that the external device requires
acoustic echo cancellation (AEC).
IntelliMix ® Link input
7
Socket for connection of a Shure SCM
series automatic mixer. Please note that
the audio signal only flows from the SCM
series mixers into the ConferenceONE™
Discussion System and not from the
Discussion System into the connected
SCM series mixers.
8 Daisy chain sockets
SUB-D 25 sockets for connecting the
consoles via Powerline cables and
Floor-X adapters.
English
8
4
