2 Description

2.1 Power Supply Unit C1-PS 60i
The power supply unit C1-PS 60i supplies the consoles with power and serves as an interface to external
devices.

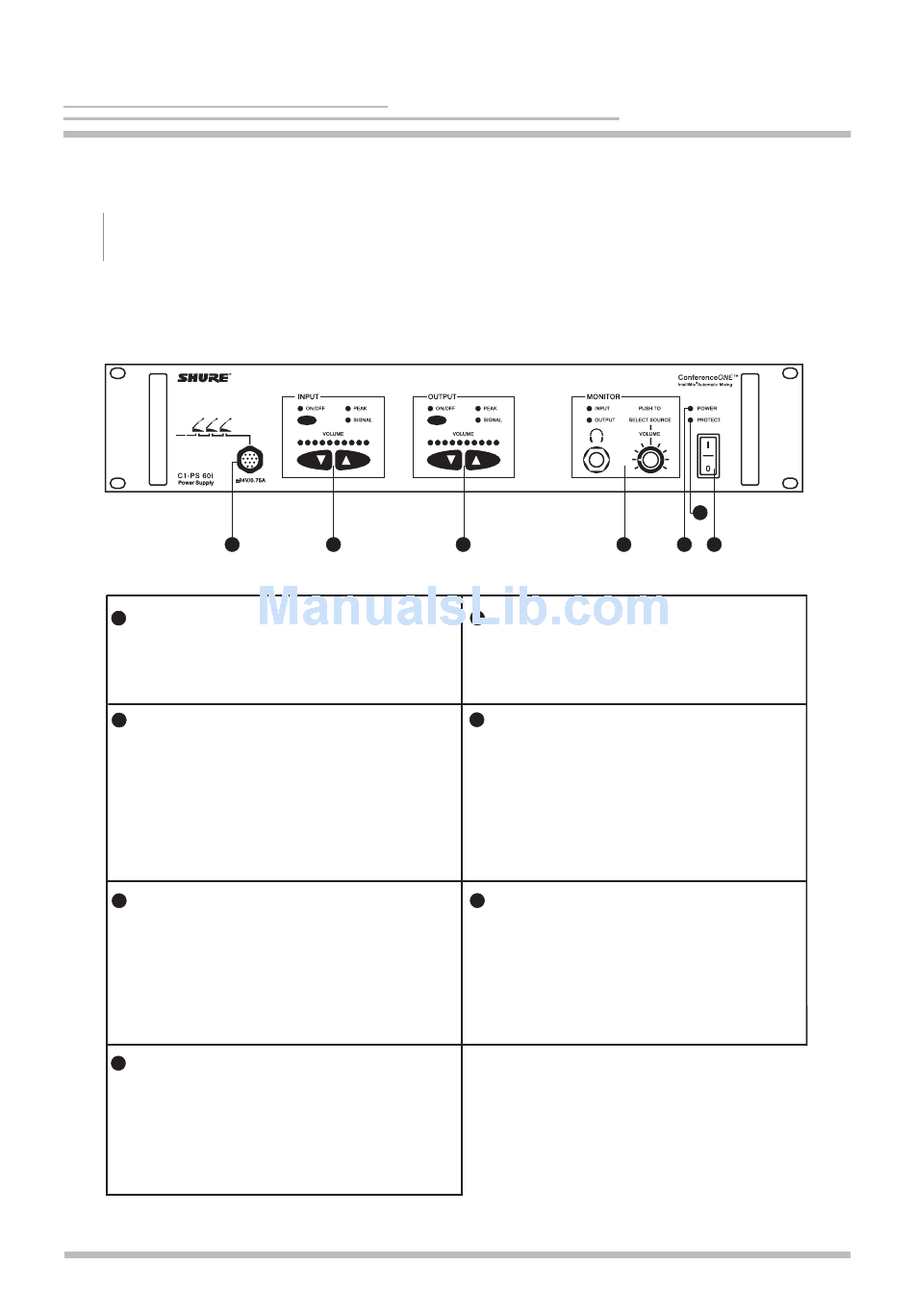

Front view
Daisy chain socket
1
Minicon socket connecting the consoles via
bus cables.
2 Audio input
The ON/OFF button activates the audio
input on the rear of the unit. The UP/DOWN
buttons adjust the input level, which is
indicated by the LEDs. The signal and peak
LEDs illuminate to indicate the status of the
audio input level.
Audio output
3
The ON/OFF button activates the audio
output on the rear of the unit. The
UP/DOWN buttons adjust signal level
output from the conference system. The
signal and peak LEDs illuminate to indicate
the status of the audio output level.
4 Monitor section
1/4" headphone output with volume
control. Press the volume knob to toggle
between monitoring the audio input and
output. The LEDs illuminate to indicate
which source you are currently monitoring.
3
1 2 3
5 Power LED
Illuminates when the unit is switched on
with the power switch.
6 Protect LED
During normal operation, this illuminates
when you power on the unit, then goes
out when the system is ready. It also
illuminates if there is a fault in the power
supply unit, or if there are too many
consoles connected to the system.
Power switch
7
Use this button to turn the unit on or off.
English
6
4 5 7
