MODEL PE585 SPECIFICATIONS (Continued)
Connector:
Equipped with Amphenol MC1 type connector
Shock
Mount:
Internal rubber vibration-isolator
Case:
Chrome-plated die casting and steel mesh grille
Swivel Adapter:
Adjustable through 90" from vertical to horizontal, to ftt
5/,"-27 stand thread
Cable:
6 l m (20 ft) single-conductor shielded cable, equipped with
Amphenol MC1 type connector on microphone end and
1/4
in
phone plug on equipment end
383 grams (13% 02) less cable
1 16 kilograms
(2 Ib, 9
02)
Net
Weight:
Packaged Weight:
FURNISHED ACCESSORIES
Swivel Adapter:
A25B
Carrying
Case:
90A1413
OPTIONAL ACCESSORIES
D e s k Stand:
Models S33B, S37A, S38B, S39A, S40A
Disconnect
Adapter:
Model A45
Line
Matching
Transformer:
Model A95 Series
Windscreen:
Model A6lWS
REPLACEMENT PARTS
Cartridge:
R85
Cable:
(25-1
Screen
and
Grille Assembly:
RS85
Case Assembly:
RK44C
Switch:
RK48S
I
CABLE SHUREMICRO
SHURE BROTHERS INC.
222 HARTREY AVENUE
EVANSTON, ILLINOIS 60204
U.S.A.
Copyright 1979
Shure Brothers Inc
27A381
(SK)
8
Printed in U.S.A.
U.S. Patents 3,132.713
and 3,240,883

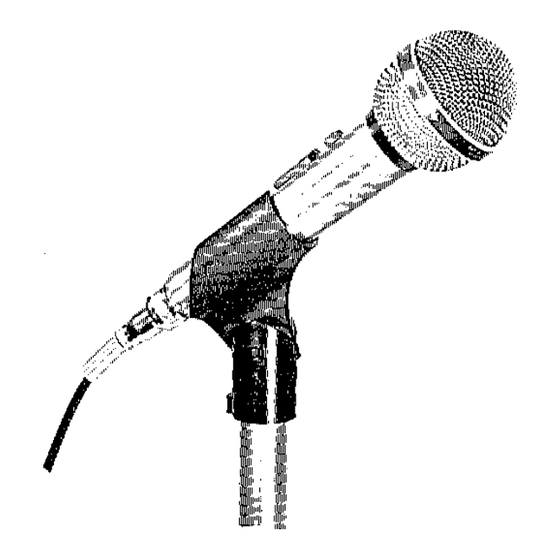

MODEL PE585
UNISPHEREF9 A
Slips out of swivel stand
adapter, easily and quickly,
for hand-held
use.
Your selection of a Shure U N I S P H E R E ~
Cardioid Micro-
phone will contribute significantly to the professional
quality of your performance. This ball-type microphone
has a wire-mesh screen with a special filter which provides
protection from wind, blast and "pop" (explosive breath
sounds). This feature allows you to work as close to the
microphone as you wish, either indoors or out-of-doors.
Another feature of your unidirectional microphone is
that it effectively controls feedback (that very annoying
loudspeaker "squeal") because it picks up sound only from
the front of the microphone. Unwanted audience noise or
other noises occurring at the rear of the microphone are
eliminated or suppressed. This allows you to work at sig-
nificantly greater distances from your microphone than
with non-directional (omnidirectional) microphones, with-
out picking up objectionable background sound or feedback.
(See inside f o r information on how to use your
Shure Microphone more effectively.)
