Summary of Contents for DeDietrich DTi705

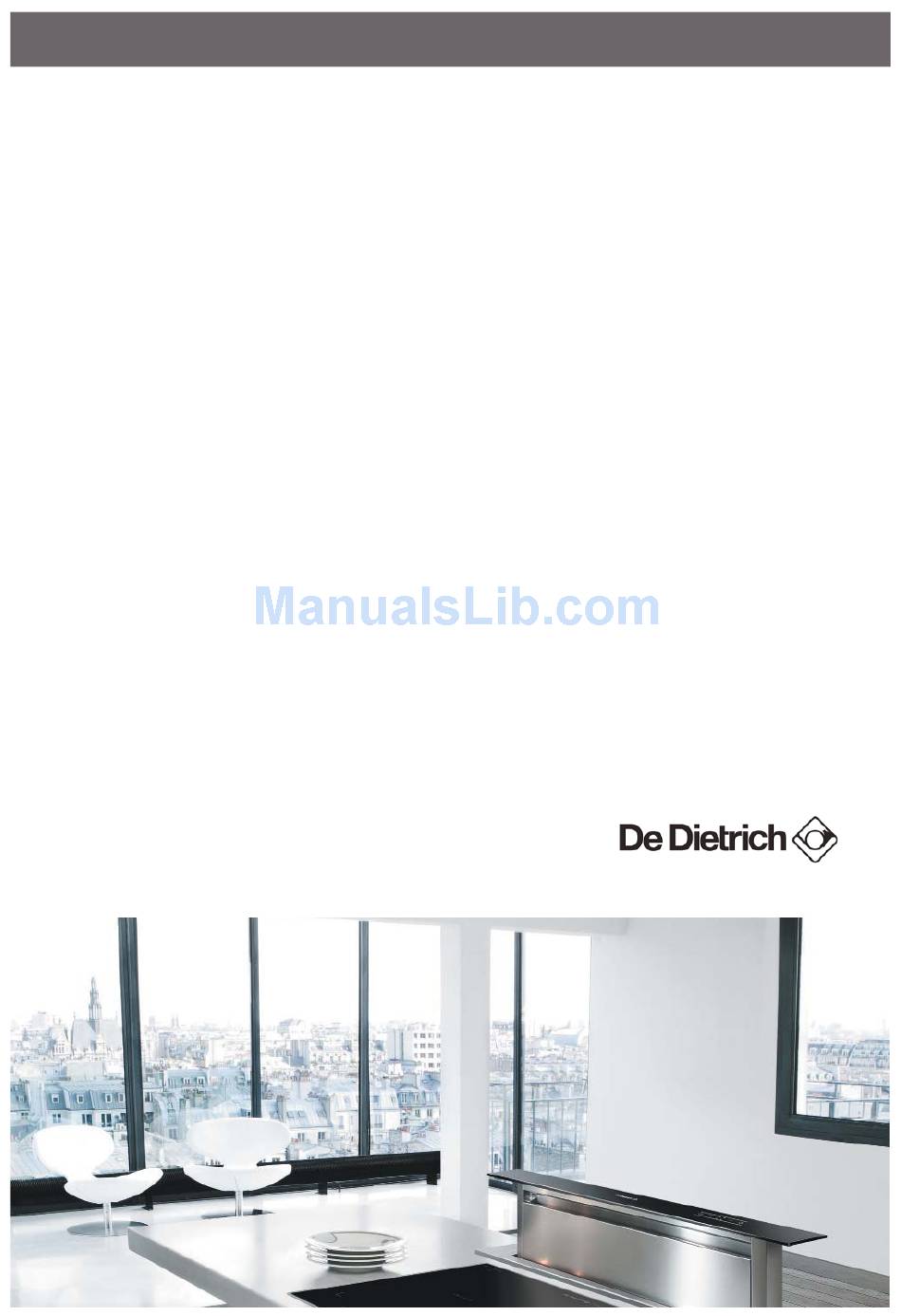

- Page 1 Guide To Installation And Use Induction Hob DTi705...
- Page 2 You will find that the clean lines and modern look of your De Dietrich hob blends in per- fectly with your kitchen décor. It is easy to use and performs to a high standard.
- Page 3 Contents Description of your appliance Overview / working principle Quick start guide Product / Safety features explained Cleaning and maintaining your appliance Installation guide Help Guide...

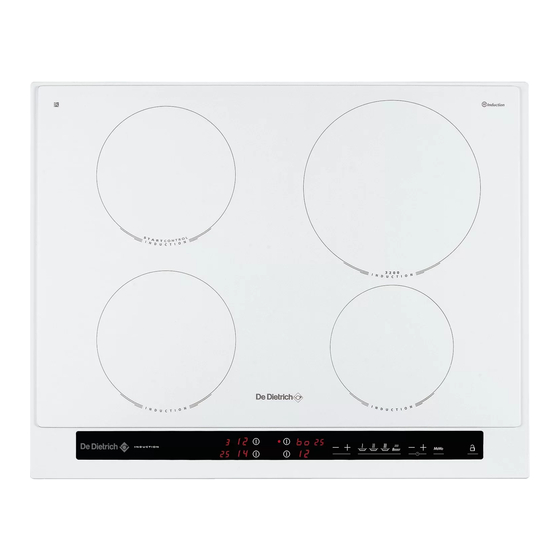

- Page 4 Description DTi705W Total dimensions (L x l) (L x l) - DTi705W/X: 65cm x 52cm Recess cut-out (L’ x l’) DTi705W: 56cm x 49cm...
- Page 5 Working Principle Induction coils Glass insulating hob top Ferrous pan base The principle of induction is based on a magnetic effect. When you place your cookware on a cooking zone and you turn it on, the electronic circuits in your cooking hob produce “induced” currents in the bottom of the cookware which instantly raise its temperature.
- Page 6 Quick Start Guide Controls Table Power “+” and “-” controls Power pre-set controls Rear Left Cooking Zone Selector Timer “+” and “-” Controls Front Left Cooking Zone Selector MeMo control Rear right Cooking Zone Selector Lock control Front Right Cooking Zone Selector Prior to using you appliance you need to ensure the appliance has been installed in accordance with the in- stallation instructions within this guide.
- Page 7 Additional functions and safety Features . In case of overflow, or of a metallic object or wet cloth placed on the control areas, the hob turns itself off, the displays light up and a beep sounds. Clean the hob or remove the object, then begin cooking again. .
- Page 8 Additional Functions and Safety Features for added peace of mind, the child lock can be manually activated to prevent accidental start-up. To activate the lock pres the “I” key and hold until a beep is sounded and an indica- tor appears. To de-activate hold the “I”...
- Page 9 Additional Functions and Safety Features Each zone of the appliance can be controlled by using the timer function to turn off the zone after a set period of time. Select the zone required and adjust the power as required. press the timer controls “G”...
- Page 10 Cleaning and Maintaining your Appliance Preserve your appliance The vitroceramic glass surface is highly resistant, but not unbreakable. Here are some recommendations for increasing its lifetime: - Avoid banging or clattering the cookware. - Avoid putting heating covers on the hob. A suction effect may damage the vitroceramic surface. - Do not use cookware with bottoms that are rough or dented.
- Page 11 Installation Guide Your appliance should be positioned so that the mains switch is accessible. The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimetres (area A). Your appliance can be easily integrated above a cabinet, an oven or a build-in household appliance.
- Page 12 4mm air gap is main- tained. Most modern ovens including all De Dietrich models will not require any further insulation between the oven and hob.
- Page 13 Installation Guide Hook-up of 220-240V ~32 amp Hook-up of 220-240V ~16 amp •Hook-up of 2x230V 2L+2N ~ - 16A •Hook-up of 400V 2N ~ - 16A •Hook-up of 400V 3~ - 16A...
- Page 14 Help Guide During Installation While switching on...
- Page 15 Help Guide While in use...
