GUIDE TO INSTALLATION AND USE

Cooking Hob

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI1137X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DeDietrich DTI1137X

  • Page 1: Cooking Hob

    GUIDE TO INSTALLATION AND USE Cooking Hob...
  • Page 2 Dear valued customer, To discover a De Dietrich product is to experience the range of unique emotions which only high-value items can produce. The attraction is immediate, from the moment you set eyes on the product. The sheer quality of the design shines through thanks to the timeless style and outstanding finishes which make each appliance an elegant and refined little masterpiece in its own right, each in perfect harmony with the others.
  • Page 3: Table Of Contents

    CONTENTS 1 / INSTALLING YOUR APPLIANCE • Installation _________________________________________________________ • Connection _________________________________________________________ 2 / USING YOUR APPLIANCE • The induction principle _______________________________________________ • Description of your top _______________________________________________ • Using a cooking zone ________________________________________________ • Additional functions _________________________________________________ Boil Independent timer Delayed cooking Switch Preselected power settings...
  • Page 4: Installation

    1 / INSTALLING YOUR APPLIANCE Air outlet Sortie d'air Air intake Entrée d'air l’ L’ Above a cabinet with a door or drawer • CHOOSING THE POSITION The distance between the edge of your appliance MIN 4 mm and the side and rear walls (or partitions) must be at least four centimetres (zone A).
  • Page 5: Installing Your Appliance

    When power is first supplied to your hob, or after an extended power cut, an indicator light will appear on the control panel. This information will disappear after 30 seconds. • Hook-up of 220-240V Connection DTI1043XE - DTI1167XE (DTI11177X -DTI1137X - DTI1047C et GC) 220-240V • Green/yellow...
  • Page 6: Using Your Appliance

    2 / USING YOUR APPLIANCE We have designed this cooking hob for use by private individuals in their homes. These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials. This appliance is not intended to be used by persons (including children) with reduced physical, sen- sory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person reponsible for their safety, or under supervision and with prior instruction in its use.
  • Page 7: Description Of Your Top

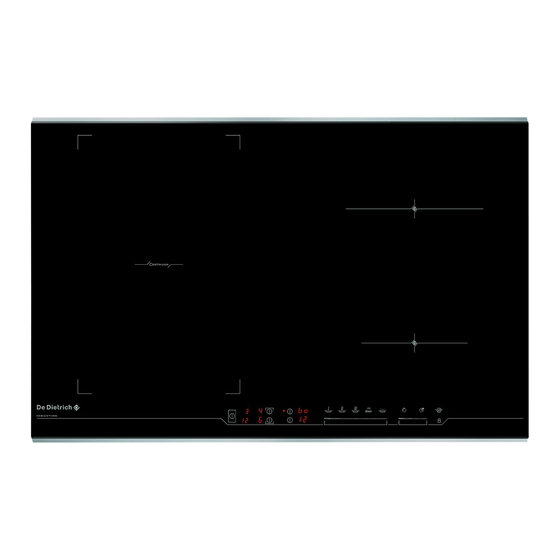

    2 / USING YOUR APPLIANCE Description of the top DTI1137X Overall dimensions (L x l) - DTI1137X : 65 x 51.3 Cut-out Recess (L’ x l’) 16 cm 2200 W DTI1137X : 56 x 49 28 cm 4600 W 18 cm 2800 W •...
  • Page 8 2 / USING YOUR APPLIANCE DTI1117X Overall dimensions (L x l) - DTI1117X : 65 x 51.3 Cut-out Recess (L’ x l’) 18 cm DTI1117X : 56 x 49 22 cm 2800 W 4000 W 18 cm 16 cm 2800 W 2200 W •...
  • Page 9 2 / USING YOUR APPLIANCE DTI1047GC - DTI1167XE Overall dimensions (L x l) - DTI1047C - DTI1047GC : 65 x 51 DTI1167XE : 78.2 x 50.7 23 cm Cut-out Recess (L’ x l’) 3100 W DTI1047C - DTI1047GC : 56 x 49 DTI1167XE : 75x49.6 For DTI1167XE 3600 W...
  • Page 10 2 / USING YOUR APPLIANCE DTI1177X Overall dimensions (L x l) - DTI1117X : 93 x 51 16 cm Cut-out Recess (L’ x l’) 2200 W DTI1117X : 90 x 49 28 cm 4600 W 4600 W 23 cm 3100 W •...
  • Page 11: Using A Cooking Zone

    2 / USING YOUR APPLIANCE Using a cooking zone Adjusting the power level: - Briefly press button H to confirm. A short beep - Place your cookware on the cooking zone is heard and the ”boil” display becomes fixed. and press the on/off button for the zone to A series of beeps are heard when your water is be used.
  • Page 12: Switch

    2 / USING YOUR APPLIANCE • Elapsed time - For models DTI1047C, DTI1047CG, DTI1167XE and DTI1177X, if you move a pan This function displays the time elapsed since from one complete cooking zone to another the last time the power setting was adjusted complete cooking zone, the function is can- on a given burner.
  • Page 13: Child Safety

    2 / USING YOUR APPLIANCE • Child safety This function allows you to lock your hob when it is shut off or when it is cooking. To lock: - Press button L until you hear a beep and the indicator lights up. The indicator will go out automatically after a few moments.
  • Page 14: Safety Features When Operating

    2 / USING YOUR APPLIANCE As shown in this logo, the materials used to package this appliance are not recycla- ble. Recycle them and play a role in protecting the environment by depositing them in municipal containers provided for this purpose. Recycling of the appliances organised by your manufacturer will thus be undertaken in optimum conditions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment waste.
  • Page 15: Maintaining Your Appliance

    3 / MAINTAINING YOUR APPLIANCE Preserve your appliance The vitroceramic glass surface is highly - Never directly reheat a tin can. It will have a resistant, but not unbreakable. Here are some risk of exploding. recommendations for increasing its lifetime: - Avoid banging or clattering the cookware.
  • Page 16: Special Messages, Difficulties

    4 / SPECIAL MESSAGES, DIFFICULTIES •On first use POSSIBLE CAUSES: WHAT SHOULD YOU DO? A special lamp appears. Working normally. Nothing, the light disappears after 30 seconds. Check that it is set up Your installation blows a fuse. The electrical connection of properly.
  • Page 17: After- Sales Service

    Distributed by MEA (A Divisions of Hagemeyer Brands Australia) FOR AUSTRALIAN CUSTOMERS ONLY STATEMENT OF STANDARD PRODUCT WARRANTY WARRANTY CONDITIONS 1.Subject to the "Statement of Standard 1. The Warranty only applies provided that Warranty Conditions" this product is covered the appliance has been used in accordance by the following Warranty.

This manual is also suitable for:

Dti1117xDti1167xeDti1047gcDti1177x
