DeDietrich DTI789V Installation And User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FR
GUIDE D'INSTALLATION ET D'UTILISATION
EN
GUIDE TO INSTALLATION AND USE
PT
MANUAL DE INSTALAÇÃO E UTILIZAÇÃO
ES
MANUAL DE INSTALACIÓ Y UTILIZACIÓN
Table de cuisson

Cooking Hob

Placa de cozinha
Placa de cocción

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTI789V and is the answer not in the manual?

Questions and answers

Related Manuals for DeDietrich DTI789V

Summary of Contents for DeDietrich DTI789V

  • Page 1: Cooking Hob

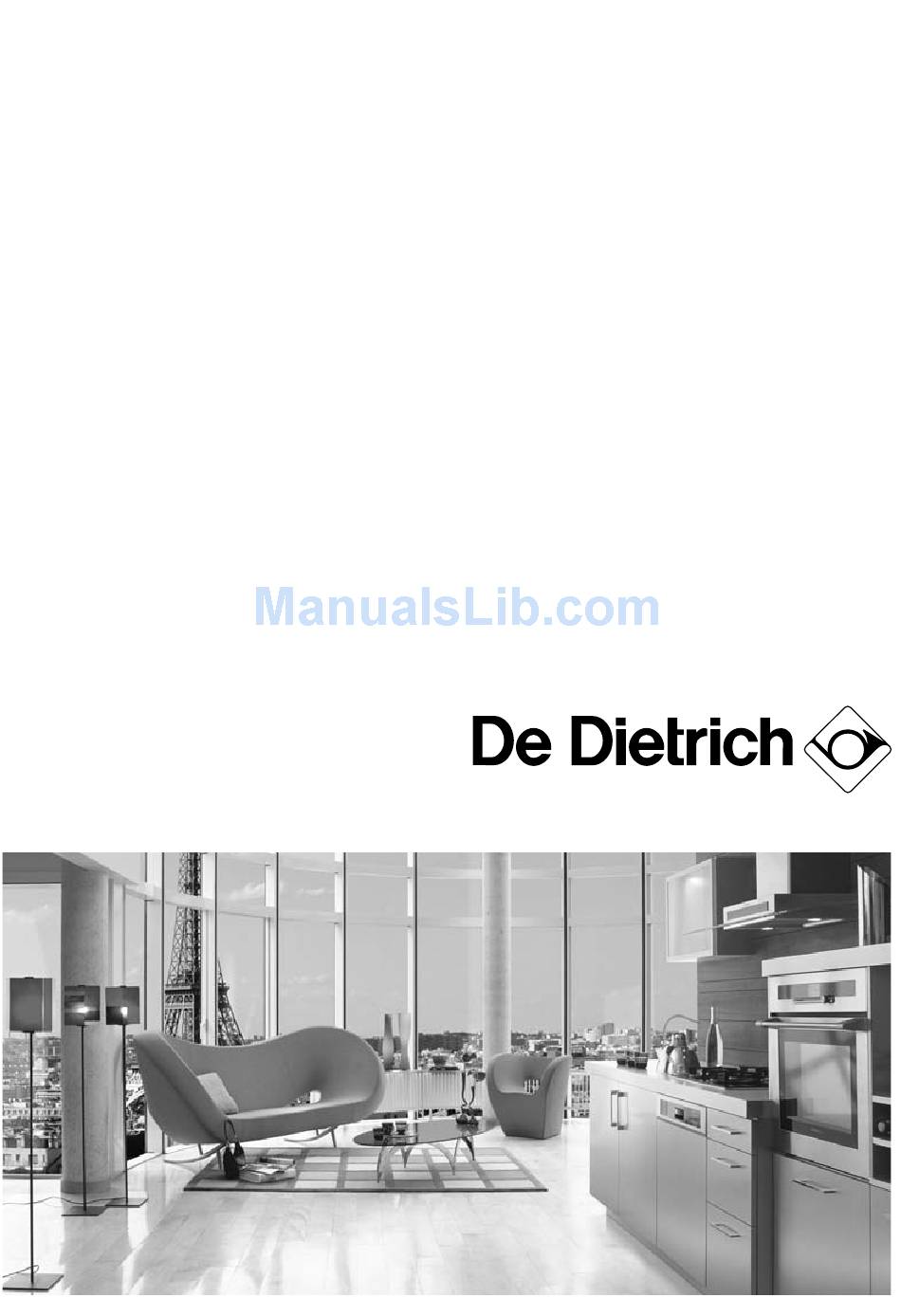

    GUIDE D’INSTALLATION ET D’UTILISATION GUIDE TO INSTALLATION AND USE MANUAL DE INSTALAÇÃO E UTILIZAÇÃO MANUAL DE INSTALACIÓ Y UTILIZACIÓN Table de cuisson Cooking Hob Placa de cozinha Placa de cocción...
  • Page 2 Dear Customer, You have just acquired a DE DIETRICH hob and we would like to thank you. In order to offer you an excellent product, our research teams have creat- ed this new generation of appliances for you. Their quality, appearance, functions and technological advances make them exceptional products, showcases of our unique know-how.

  • Page 3: Table Of Contents

    CONTENTS 1 / INSTALLING YOUR APPLIANCE • Installation _________________________________________________________ • Connection _________________________________________________________ 2 / USING YOUR APPLIANCE • The induction principle _______________________________________________ • Description of your top _______________________________________________ • Using a cooking zone ________________________________________________ • Additional functions _________________________________________________ Preheating - Memorisation of a cooking setting Delayed cooking Independent timer Preselected power settings...

  • Page 4: Installing Your Appliance

    1 / INSTALLING YOUR APPLIANCE As shown in this logo, the materials used to package this appliance are not recycla- ble. Recycle them and play a role in protecting the environment by depositing them in municipal containers provided for this purpose. Recycling of the appliances organised by your manufacturer will thus be undertaken in optimum conditions, in accordance with European directive 2002/96/CE relating to electrical and electronic equipment waste.

  • Page 5: Connection

    1 / INSTALLING YOUR APPLIANCE Connection These hobs must be connected to the mains using a socket in compliance with publication CEI 60083 or an all-pole circuit-breaker device in compliance with the installation rules in force. When power is first supplied to your hob, or after an extended power cut, an indicator light will appear on the control panel.

  • Page 6: Using Your Appliance

    2 / USING YOUR APPLIANCE We have designed this cooking hob for use by private individuals in their homes. These cooking hobs are intended exclusively for cooking beverages and foodstuffs and do not contain any asbestos-based materials. • The induction principle The principle of induction is based on a mag- netic effect.

  • Page 7: Description Of Your Top

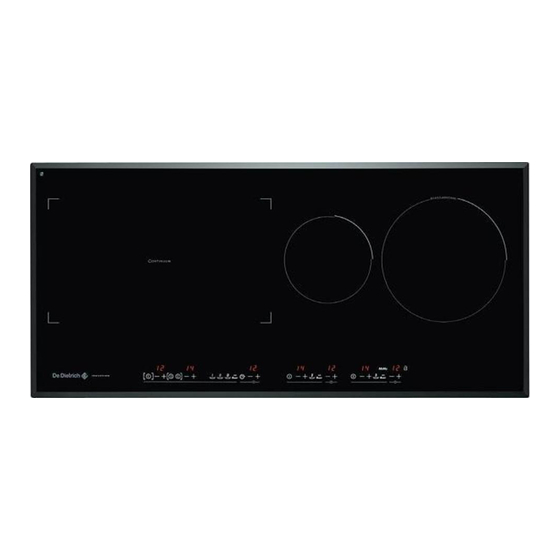

    2 / USING YOUR APPLIANCE Description of your top 16 cm 23 cm 50 W à 2200 W 50 W à 3200 W 50 W à 4600 W Total dimensions (L x l) : 93 x 44 Recess cut-out (L’ x l’) : 90 x 41 •...

  • Page 8: Using A Cooking Zone

    2 / USING YOUR APPLIANCE Additional functions Using a cooking zone Adjusting the power level: •Preheating - Place your cookware on the cooking zone This function allows a higher temperature to and press the corresponding button A, B, C, E or F. A beep and a light will confirm be reached more rapidly, followed by an auto- your selection.

  • Page 9: Delayed Cooking

    2 / USING YOUR APPLIANCE To reproduce the cooking cycle: 5 - Set the power of your cooking by pressing - Select the same cooking zone (if the zone is on touchpad G, 4 is displayed by default different, NO will light up on your hob). (maximum 6).

  • Page 10: Child Safety

    2 / USING YOUR APPLIANCE •Child safety •Temperature limiter This functioin allows you to lock your hob Each cooking zone is equipped with a safety when it is shut off or when it is cooking. sensor that constantly monitors the tempera- To lock: ture of the bottom of the cookware.

  • Page 11: Maintaining Your Appliance

    3 / MAINTAINING YOUR APPLIANCE Preserve your appliance The vitroceramic glass surface is highly - Never directly reheat a tin can. It will have a resistant, but not unbreakable. Here are some risk of exploding. recommendations for increasing its lifetime: - Avoid banging or clattering the cookware.

  • Page 12: Special Messages, Difficulties

    4 / SPECIAL MESSAGES, DIFFICULTIES •On first use POSSIBLE CAUSES: WHAT SHOULD YOU DO? A special lamp appears. Working normally. Nothing, the light disappears after 30 seconds. Check that it is set up Your installation blows a fuse. The electrical connection of properly.

  • Page 13: After-Sales Service

    This information appears on the manufacturer's nameplate attached to your equipment. For UK after sales service information please contact:- www.dedietrich.co.uk De Dietrich UK office – tel: 01256 308000 In case of breakage, cracks or even light fissures in the vitroceramic glass, take out the fuses or turn off the circuit breaker for your hob to avoid the risk of electrical shock.
  • Page 14 5 / AFTER-SALES SERVICE STATEMENT OF STANDARD DE DIETRICH COOKING PRODUCT WARRANTY CONDITIONS WARRANTY The Warranty only applies provided that Subject to the “Statement of Standard appliance been used Warranty Conditions” this product is accordance with manufacturer’s covered by the following Warranty. instructions provided that...
