Summary of Contents for DeDietrich DTi714

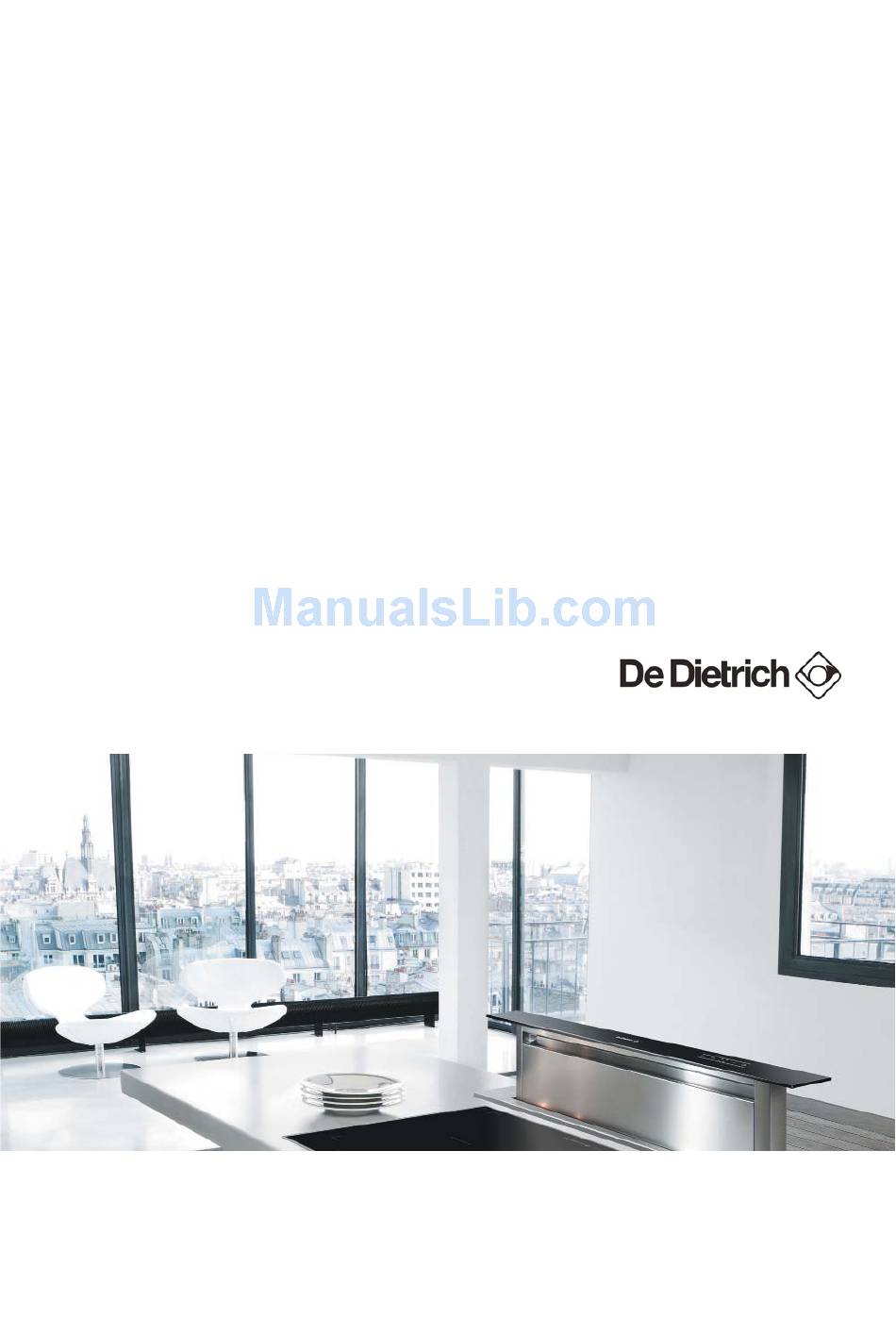

- Page 1 Induction Hob DTi714...
- Page 2 You will find that the clean lines and modern look of your De Dietrich hob blends in per- fectly with your kitchen décor. It is easy to use and performs to a high standard.
- Page 3 Description of your appliance Overview / working principle Quick start guide Product / Safety features explained Cleaning and maintaining your appliance Installation guide Help Guide...
- Page 4 Total dimensions Power total connected load 5.9kw...
- Page 5 Induction coils Glass insulating hob top Ferrous pan base The induction principle The principle of induction is based on a magnetic effect. When you place your cookware on a cooking zone and you turn it on, the electronic circuits in your cooking hob produce “induced” currents in the bottom of the cookware which instantly raise its temperature.
- Page 6 Controls Table Timer “+” and “-” controls and display Display On / off controls one per zone Lock Control Power “+” and “-” controls Quick Start Guide Prior to using you appliance you need to ensure the appliance has been installed in accordance with the installation instructions within this guide.
- Page 7 Protection against overflows. In case of overflow, or of a metallic object or wet cloth placed on the control areas, the hob turns itself off, the displays light up and a beep sounds. Clean the hob or remove the object, then begin cooking again. Temperature limiter.
- Page 8 Child Lock: for added peace of mind, the child lock can be manually activated to prevent accidental start-up. To activate the lock pres the “E” key and hold until a beep is sounded and an indica- tor appears. To de-activate hold the “E” key until the indicator goes out and a beep sounds.
-
Page 9: Maintaining Your Appliance
Preserve your appliance The vitroceramic glass surface is highly resistant, but not unbreakable. Here are some recommendations for increasing its lifetime: - Avoid banging or clattering the cookware. - Avoid putting heating covers on the hob. A suction effect may damage the vitroceramic surface. - Do not use cookware with bottoms that are rough or dented. - Page 10 Installation Your appliance should be positioned so that the mains switch is accessible. The distance between the edge of your appliance and the side and rear walls (or partitions) must be at least four centimetres (area A). Your appliance can be easily integrated above a cabinet, an oven or a build-in household appliance.
- Page 11 4mm air gap is main- tained. Most modern ovens including all De Dietrich models will not require any further insulation between the oven and hob.
-
Page 12: Electrical Connection
Electrical connection Hook-up of 220-240V ~32 amp Hook-up of 220-240V ~16 amp •Hook-up of 2x230V 2L+2N ~ - 16A •Hook-up of 400V 2N ~ - 16A •Hook-up of 400V 3~ - 16A... - Page 13 Problems on installation Posssible Causes What should you do? A special code / display ap Working normally Nothing this code will turn off pears across the ccontrol panel after 30 seconds or if the zone is turned on Your installation blows a fuse Incorrect electrical connec- Check electrical supply connection / trip...
- Page 14 Problems while in use You observe that. Possible causes What should you do The hob has stopped working The hob has detected an Ensure the controls are clean and “” is displayed also an aud overflow or object covering and dry and remove any ob able beep is heard the controls.
