Battery Charger - Icom IC-M1EURO V Instruction Manual

D D AD-95 installations
• To a desktop • To a wall
Supplied screws
• For convenience:
Eyelet:
USE a rubber
band to secure
the transceiver,
if desired.
Supplied screws
q
e
w

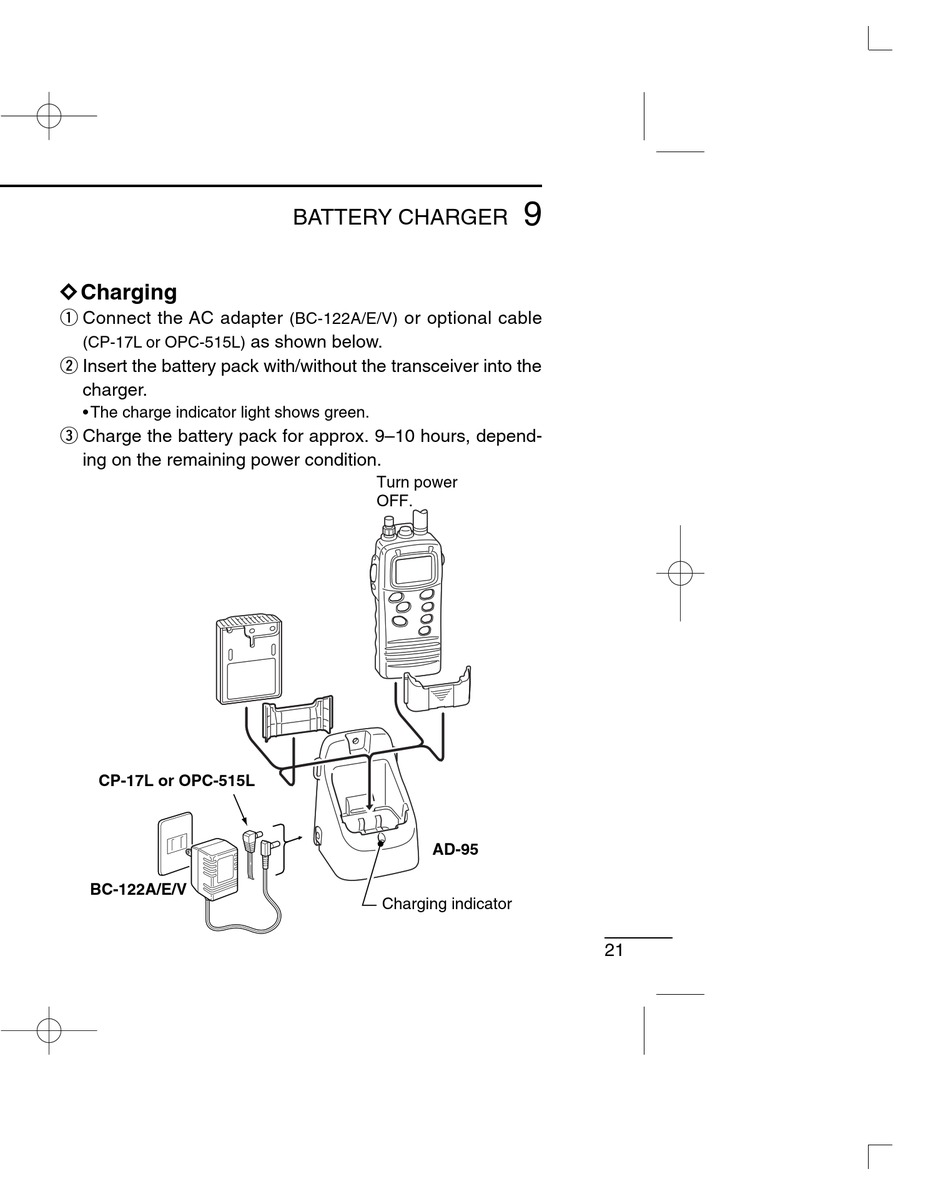

D D Charging
q Connect the AC adapter
as shown below.
(CP-17L or OPC-515L)
w Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator light shows green.
e Charge the battery pack for approx. 9–10 hours, depend-
ing on the remaining power condition.
CP-17L or OPC-515L
BC-122A/E/V

BATTERY CHARGER

or optional cable
(BC-122A/E/V)
Turn power
OFF.
AD-95
Charging indicator
9
21
