I Function Led - Icom IC-F210S Instruction Manual

I Function LED

1 2
e
q CHANNEL INDICATORS
➥ Indicates the operating channel.
➥ Blinks when receiving a signal during scanning opera-
tion.
➥ All LEDs blink while entering the power ON password.
w TX/RX INDICATOR
➥ Lights red: while transmitting
➥ Lights green: while the channel is busy
➥ Blinks orange (green and red blink simultaneously):
when the specified 2-tone, 5-tone call is received.
➥ Green and red blink alternately: cloning error
e ACTIVATED KEY INDICATOR (LP 0/1/2)
➥ Appears when a pre-programmed key function is acti-
vated.
NOTE: When all function LEDs blink, check the DC battery
voltage is not too high.
q
3 4
TX/RX
w
PANEL DESCRIPTION

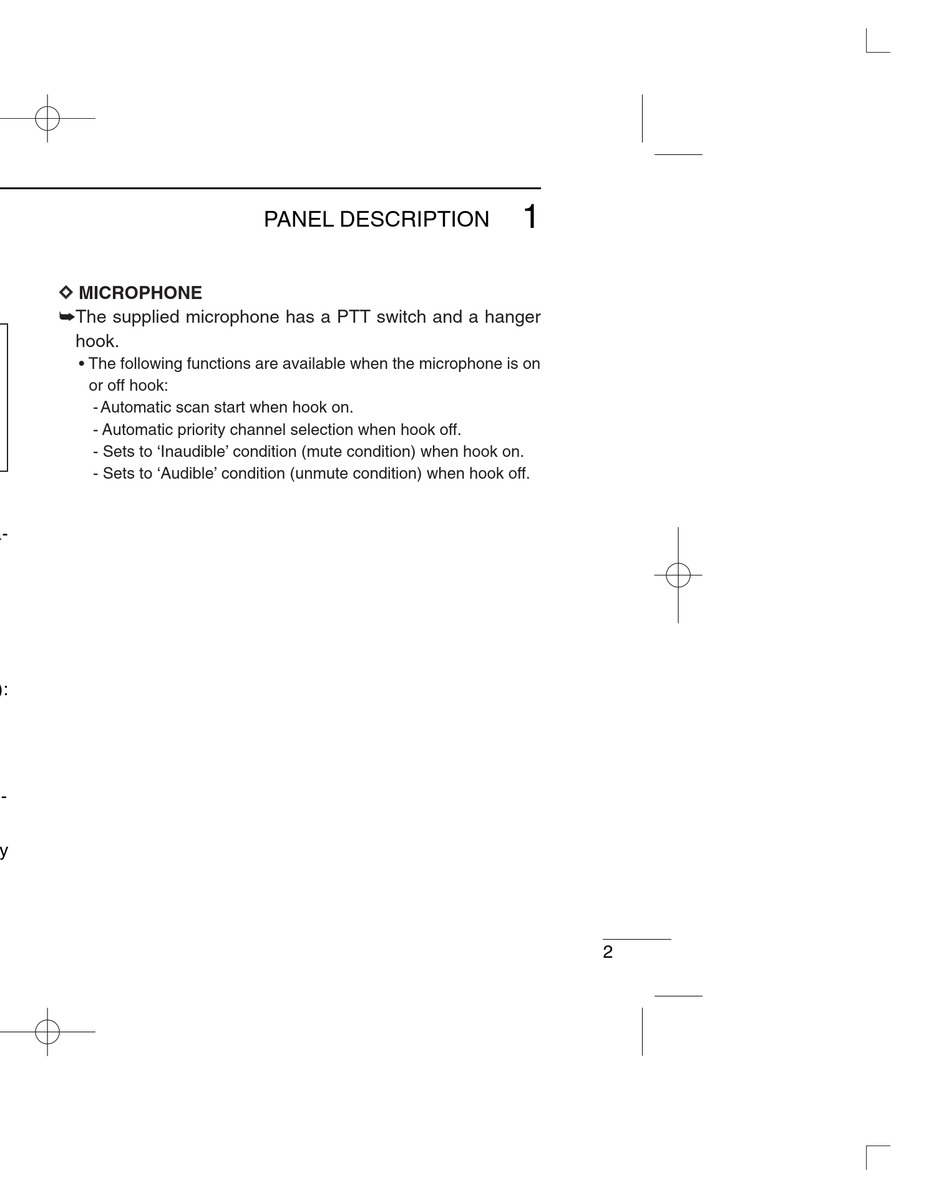

D D MICROPHONE
➥The supplied microphone has a PTT switch and a hanger
hook.
• The following functions are available when the microphone is on
or off hook:
- Automatic scan start when hook on.
- Automatic priority channel selection when hook off.
- Sets to 'Inaudible' condition (mute condition) when hook on.
- Sets to 'Audible' condition (unmute condition) when hook off.
