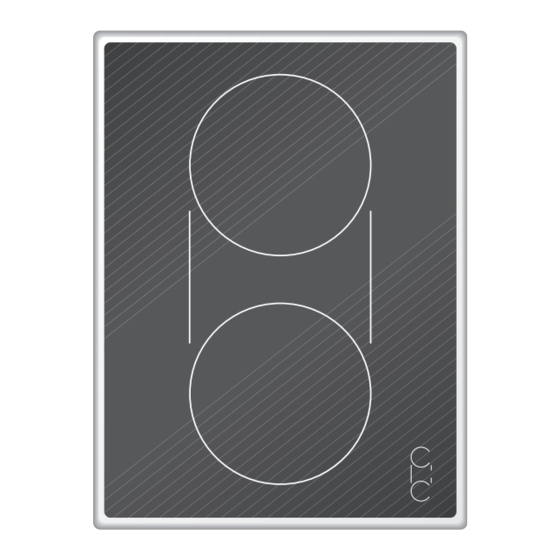

- Page 1 Operating and Assembly Instructions VC 421 VC 422 Glass Ceramic Electric Cooktop...
-
Page 3: Table Of Contents
Page 5 Features VC 422 Page 5 Special accessories Page 5 Visual signals Page 6 3. Operation VC 421 Page 7-8 Switching on and off Page 7 Indicator light / Residual heat display Page 7 Cooking zone extension Page 8... - Page 4 Congratulations on buying your new VC 421 “Vario” appliance. Before switching your appliance on for the first time, we would like you to familiarize yourself with your new appliance. In this manual you will find important notes on safety and operation. These will serve to ensure your personal safety and the lasting value of your appliance.
-
Page 5: Important Notes
1. Important Notes For your safety Do not operate the appliance if it is damaged. Operation of the appliance must be discontinued immediately if improper use produces cracks, The appliance must only be connected by breaks or flaws on the cooking surface, with the an authorised specialist, paying attention to result that live parts can come into contact directly the relevant regulations of the power supply... -
Page 6: Operating For The First Time
In the event of malfunction, first check your household fuses. If the power supply is in proper working order, but the appliance is still not functioning, please inform your specialist dealer or your nearest Gaggenau after-sales service. -
Page 7: Features
Special accessories You can order the following special accessory: VV 400-000 Connecting trim VZ 400-000 Connecting trim with timer VD 400-000 Appliance cover BT 481-000 only for VC 421: Cast aluminium, non-stick coated roaster with lid, suitable for the roasting zone... -
Page 8: Visual Signals
Visual signals Luminous disc Indicator Signification Cause / Remedy behind the on the control knob cooker lights OFF appliance is switched OFF light constantly cooking zone ON normal use slow flashing of residual heat The appliance is too hot to be indicator light display touched safely. -
Page 9: Operation Vc 421
3. Operation VC 421 Switching on Switching on Press down the control knob for the corresponding cooking position and turn it left or right to the required position (1 -12). The luminous disc behind the control knob and the corresponding indicator light on the display panel light up, as long as the corresponding cooking zone is switched on. -
Page 10: Cooking Zone Extension
Cooking zone extension to oval roaster zone Activating extension Both cooking zones convert together with an additional zone, to create an oval cooking zone especially suitable for roasters. When the extension is activated, both cooking zones and the additional zone operate as one single cooking zone. -
Page 11: Operation Vc 422
4. Operation VC 422 Switching on Switching on Press down the control knob for the corresponding cooking position and turn it left or right to the required position (1 -12). The luminous disc behind the control knob and the corresponding indicator light on the display panel light up, as long as the corresponding cooking zone is switched on. -
Page 12: Cooking Zone Extension
Cooking zone extension Activating extension The front cooking zone can be extended to a large diameter The rear cooking zone can be converted to an oval cooking zone especially suitable for oval roasters. Activating extension Turn the corresponding control knob to the right to the extension symbol. -
Page 13: Energy Saving Tips
5. Energy Saving Tips Pots and saucepans should always be covered by a matching lid. The cooking time is shortened and the energy use reduced. Pay attention to the right size when choosing pots and pans. The diameters of pots and pans should correspond to that of the hotplate. -
Page 14: Settings Table
6. Settings Table Settings Table Cooking Cooking method Examples level Boiling Water Searing Meat Heating Fat, liquids Boiling Soup, sauce Blanching Vegetables 11 - 9 Roasting Meat, fish, potatoes 8 - 7 Browning Flour, onions Roasting Almonds, breadcrumbs Baking Pancakes, egg dishes Boiling in open pot Liquids 7 - 6... -
Page 15: Cleaning And Care
Wipe with a damp cloth. Cloth should not be too Clean the hob with a damp, soft cloth or kitchen wet, as moisture could penetrate behind the control paper and the Gaggenau glass ceramic cleaner or knob. similar cleaner suitable for glass ceramic cooktops. -
Page 16: Maintenance
If the power supply is functioning correctly, but your appliance still does not work, please contact your dealer or your local Gaggenau customer service agency. Specify the appliance type. The serial number and type of the appliance can be found on the quality control slip which is included with these instructions. -
Page 17: Installation
VC 421/422-510 240 V Important notes on installation This appliance can be combined with all Gaggenau There must be a gap of at least 40 mm at the side Vario 400 Series appliances. between the appliance and any walls or furnishings. -
Page 18: Preparing The Cabinet
• Cut out the recess for the hob in your worktop. Proceed as indicated on the installation sketch. The installation sketch contains the measurements VC 421 of the space required for the trim between the appliances. Several appliances can also be... -
Page 19: Installing The Control Panel
Installing the control panel Note: only install control panel with appliance of the corresponding type. Before connecting the appliance, make sure the electricity is switched off at fuse point! • Before installation, remove all styrofoam packaging from the control knobs and peel off the protective film behind the luminous discs. -
Page 20: Installing The Cooktop
Installing the cooktop • Firmly plug the connecting cable in the cooktop and in the control panel (the plugs must lock into place). • Turn the clamping screws to the side. Insert the hob with the control panel on the front into the cut-out and align it.
