JK Audio ComPack User Manual

Universal telephone audio interface
Hide thumbs Also See for ComPack:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
ComPack
Universal Telephone
Audio Interface
User Guide
JK Audio

Advertisement

Table of Contents
loading

Related Manuals for JK Audio ComPack

Summary of Contents for JK Audio ComPack

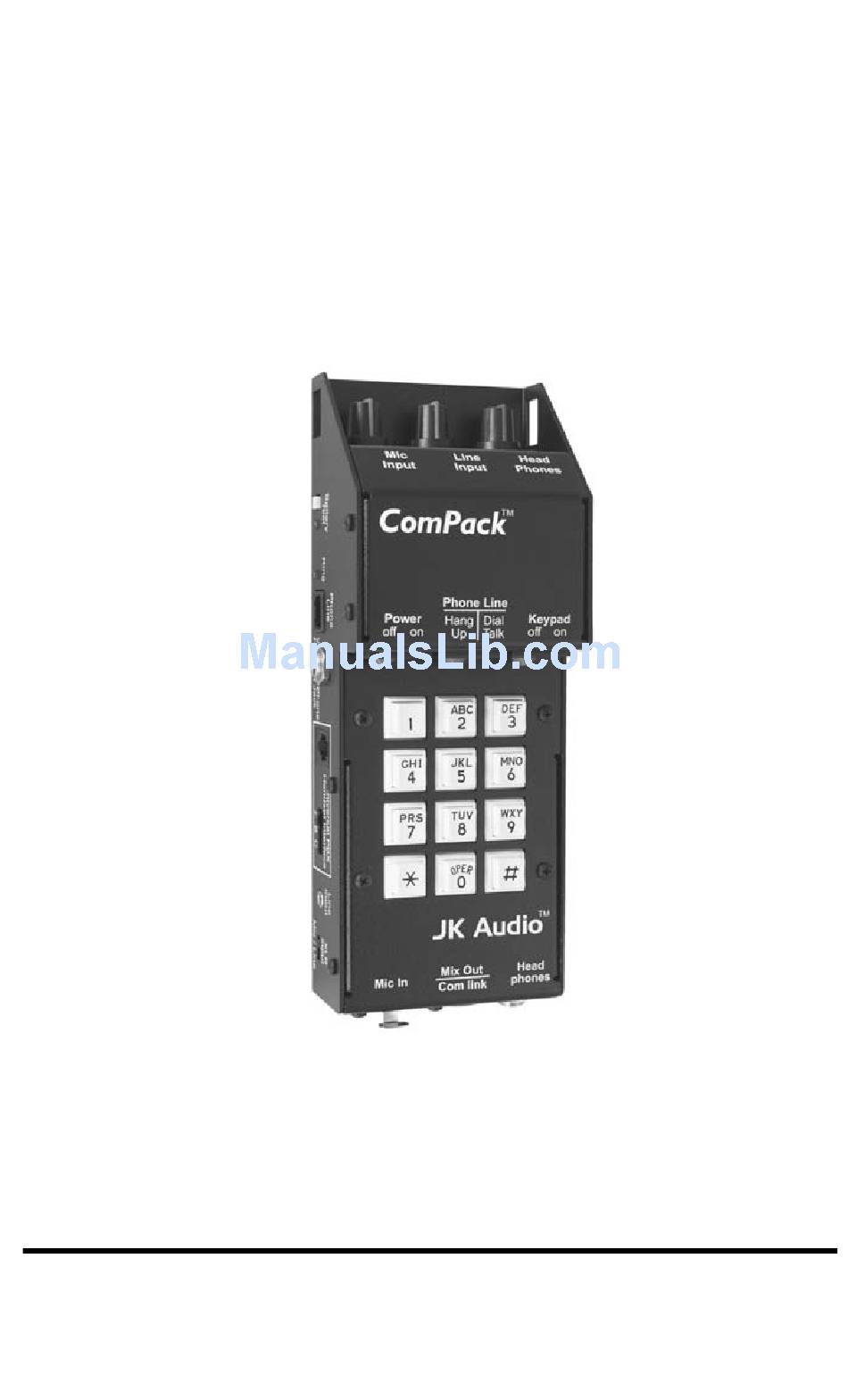

  • Page 1 ComPack Universal Telephone Audio Interface User Guide JK Audio...
  • Page 2 Perfect for remote broadcasts, IFB feeds, or interviews over any tele- phone connection. ComPack also functions as a simple telecom interface for your belt- pack intercom system. This no-frills feature allows you to connect the 3 pin XLR to your beltpack intercom group to provide a full du- plex, always-on connection to any telephone network.
  • Page 3 When using the wireless interface, it is important to keep your wireless telephone 12” - 24” away from the ComPack and any microphone or headphone cables. This will help prevent unwanted RF noise from en- tering the unit.
  • Page 4 *The FCC requires that a limiter be present in any device that connects to a phone line. The peak limiter within the ComPack will help to control the audio level sent down the phone line so it does not exceed the maximum audio level specified by the FCC.
  • Page 5 The easy change battery door can be opened by inserting a small object into the slot, such as a coin or fingernail, and lifting up and out. The bat- tery should be removed if ComPack is not going to be used for ex- tended periods of time.
  • Page 6 Features 17. Keypad On / Off Switch This switch disables the DTMF keypad to prevent tones from being blasted down the phone line during a broadcast. You should leave this switch in the off position when using the wireless phone or PBX handset interface.
  • Page 7 ComPack Telecom / Intercom Link ComPack also functions as a simple “no-frills” telecom link for your beltpack intercom system. ComPack will provide bi-directional audio on pin 3 of the male XLR jack to any industry standard intercom beltpack system. ComPack does not provide power over this XLR jack nor does it require power from the loop.

  • Page 8: Block Diagram

    Block Diagram...
  • Page 9 ComPack Male XLR to your single channel beltpack intercom system. Can I connect the ComPack to a powered beltpack line? Yes, the ComPack has a DC blocking cap so it will not be damaged if connected to a powered line, although DC power is not necessary for operation.

  • Page 10: Specifications

    Shoulder strap, wireless interface cable and one 9 volt battery included. FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules.

  • Page 11: Fcc Part 15 Compliance

    FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company.

  • Page 12: Warranty

    Warranty ComPack is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the ComPack needs repair, you must call us to get an authorization, and then carefully pack and ship it to us. You will pay for shipping to us and we will pay for return back to you, UPS ground.
