AIR CONDITIONER
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
CLIMATISEUR
MODE D'EMpLOI
CONSERVEZ CE MODE D'EMpLOI
CLIMATIZADOR
INSTRUCCIONES DE USO
CONSERVE ESTAS INSTRUCCIONES
LEA CUIDADOSAMENTE ESTE
INSTRUCTIVO ANTES DE USAR SU ApARATO
pAC T140HpEC
Register this product online and receive a free
trial issue of Cook's Illustrated.
Visit www.delonghiregistration.com.
Visit www.delonghiusa.com for a list of
service centers near you. (U.S. Only)
Enregistrez ce produit en ligne et recevez un
numéro gratuit de Cook's Illustrated.
Visitez www.delonghiregistration.com.
Visitez www.delonghiusa.com pour y voir une
liste des centres de réparation proches de chez
vous. (É.-U. uniquement)
Registre este producto en línea y reciba un
ejemplar gratis de Cook's Illustrated.
Visite www.delonghiregistration.com.
Visite www.delonghiusa.com para ver la lista
de centros de servicios cercanos a usted.
(Solamente en los Estados Unidos)
Electronic characteristics/Caractéristiques
électroniques/Caracteristicas electricas
115V~60Hz 1500W
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DeLonghi PAC T140HPEC
Summary of Contents for DeLonghi PAC T140HPEC
-
Page 1: Air Conditioner

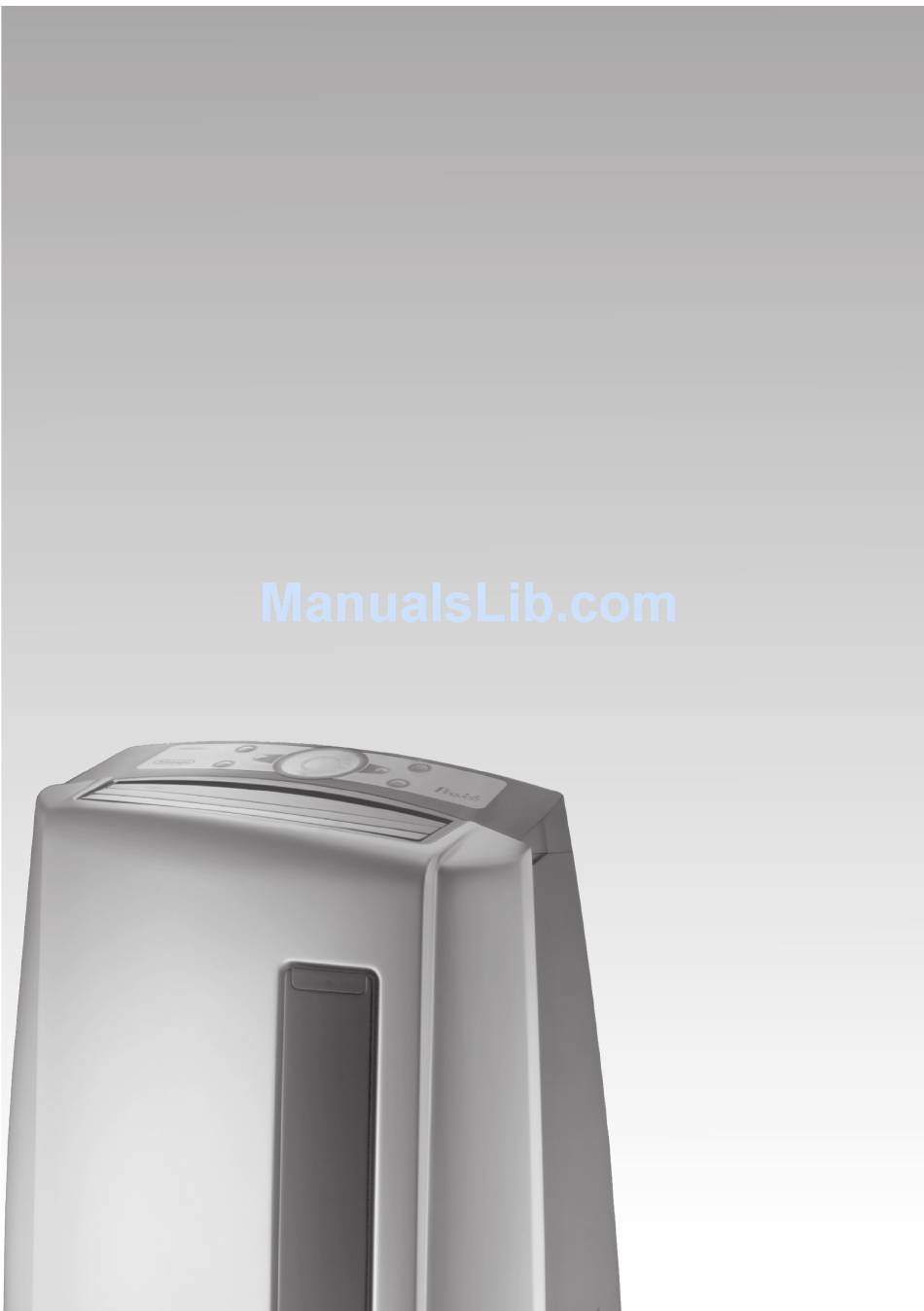

CLIMATIZADOR INSTRUCCIONES DE USO CONSERVE ESTAS INSTRUCCIONES LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU ApARATO pAC T140HpEC Register this product online and receive a free trial issue of Cook’s Illustrated. Visit www.delonghiregistration.com. Visit www.delonghiusa.com for a list of service centers near you. (U.S. Only) Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook’s Illustrated. -
Page 2: Important Safeguards
I M p O R T A N T S A F E G U A R D S • Use this appliance only as described in this • Clean the filters at least once a week. instruction manual. As with any electrical • Avoid using heaters near the unit. appliance, the instructions aim to cover as • The unit should be transported in a vertical many situations as possible. -
Page 3: Electrical Connections
ELECTRICAL CONNECTIONS pREpARING FOR USE Before plugging the appliance into the outlet, The instructions below will enable you to prepare check that: your air conditioner for operation as efficiently • the power supply corresponds to the value as possible. indicated on the rating plate on the back of Before use, make sure the air intake and outlet the appliance;... - Page 4 DESCRIpTION A Air outlet grille B Control panel C Castors D Handles E Air intake grille with filters F Air exhaust hose housing G Intake grille H Continuous condensate drain connection Condensate tank J Power cable K 2 flange caps L Air exhaust hose M Air inlet to intake hose N 2 window outlets O Suckers...
- Page 5 Air-conditioning with installation Position the hole of the bracket so to allow a correct installation of the exhaust hose. If required, your appliance can be installed semi- permanently (fig. 5 and 5A). 11,8 inches 11,8 inches 11,8 inches 30 cm 11,8 inches 30 cm 30 cm 30 cm Proceed as follows:...
- Page 6 • fit the air exhaust hose (l) in the housing at the back of the appliance (fig. 1). • fit the end of the hose to the flange (K). MAX 39.37 inches When the hose is not fitted, the hole can be MAX100 cm closed with the flange cap. Keep the air hose as short and free of cur- ves as possible to avoid bottle necks. MIN 13.77 inches MIN 35 cm When installing the air conditioner semi-...
-
Page 7: Control Panel
OpERATING FROM THE displayed. • Select the required fan speed by pressing the CONTROL pANEL FAN button. The control panel enables you to manage all the main functions of the appliance, but to fully exploit its potential, you must use the remote control. Turning the appliance ON • plug into the outlet. Two lines appear on the display indicating that the appliance is in standby (fig. - Page 8 tracted and emptied (fig. 12). When the tank AIR pURIFYING/FAN MODE (FIG. 14) has been emptied and replaced, the applian- ce starts up again. When using the appliance in this mode, the air exhaust hose does not need to be attached. To set this mode correctly: • press the MODE button a number of times until the fan symbol (5) appears.
-
Page 9: Swing Button
starts up again. The continuous drain hose ac- SWING BUTTON cessory enables the condensate produced to be eliminated without requiring the tank to be em- Moves the grill flaps to distribute air uniformly ptied periodically. throughout the room, or to focus air in a certain To use the continuous drain function, fit the hose direction. -
Page 10: Remote Control Description
REMOTE CONTROL DESCRIpTION USING THE REMOTE CONTROL MAX. 23 feet • point the remote control at the receiver on the appliance. The remote control must be no more than 23 feet away from the appliance (without obstacles between the remote control and the receiver). • The remote control must be handled with extreme care. Do not drop it or expose it to direct sunlight or sources of heat. INSERTING OR REpLACING THE BATTERIES • remove the cover on the rear of the remote control (fig.17);... -
Page 11: Selecting The Temperature Scale
USING THE REMOTE CONTROL limits are designed to provide reasonable protec- (FIG. 18) tion against harmful interference in a residential installation. • This equipment generates, uses and can radia- The ON/Standby, MODE, FAN, + and - buttons te radio frequency energy and, if not installed correspond to the equivalent buttons on the con- and used in accordance with the instructions, trol panel. -
Page 12: Programming The Timer
SLEEp FUNCTION (FIG. 20) This function is useful for the night as it gradual- ly reduces operation of the appliance. To set this function correctly: • Select the operating mode (air conditioning, dehumidifying, heating or smart as descri- bed above.) • press the button. The appliance operates in the previously selected mode. pROGRAMMING THE TIMER The timer can be programmed to start up and shut down to fit in with your needs. -
Page 13: Self-Diagnosis
programming shutdown • press the off button. The shutdown time and the message “off TIMer” flash on the remote control display (fig. 24). • press the or buttons to set the time you want the appliance to shut down. • When that time is reached, press the SeT button to confirm (fig. 25). The message “off TIMer” appears on the remote control display and the symbol is displayed on the appliance to indicate that the timer is ac- tive. -
Page 14: Tips For Optimal Performance
TIpS FOR OpTIMAL pERFORMANCE • make sure there are no heat sources in the room. • never use the appliance in very damp rooms To get the best from your air conditioner, follow (laundries for example). these recommendations: • never use the appliance outdoors. • close the windows and doors in the room to • make sure the air conditioner is standing on be air conditioned (fig. 26). When installing a level surface. if necessary, place the castor the air conditioner semi-permanently, locks under the front wheels. -
Page 15: Cleaning The Cabinet
CLEANING After washing, leave the filter to dry. To replace, put the filters back in the intake grille then attach the intake grille to the appliance. Before cleaning or maintenance, turn the applian- Never try and wash or clean the 3M® filter ce off by pressing the button on the control as this could reduce its filtering capacity. panel or remote control, wait for a few minutes When the filter is exhausted, replace it. -
Page 16: Troubleshooting
TROUBLESHOOTING pROBLEM CAUSE SOLUTION The air conditioner • no electricity • restore electricity • it is not plugged into the outlet • plug into the outlet does not come on • the internal safety device has tripped • wait 30 minutes, if the problem persists contact your service center • the safety device of the plug has tripped. • reset the safety plug The air conditioner • there are bends or kinks in the air • position the air hose correctly, keeping exhaust hose it as short and free of curves as possible works for a short time... -
Page 17: Technical Specifications
TECHNICAL SpECIFICATIONS This appliance is equipped with a 3 prong grounded plug. The plug must be connec- Outlet voltage see rating plate ted into an outlet that is properly installed and grounded in the accordance with all Maximum absorbed power local codes and ordinances. Do not mo- in air conditioning “... -
Page 18: Limited Warranty
Please contact our toll free hotline at 1-800-322-3848 or log onto our website at www.delonghi.com. for all accessories, spare parts or replacement parts, please contact our parts division at 1-800-865- 6330. Residents of Canada: Please contact our toll free hotline at 1-888-335-6644 or log onto our website at www.delonghi.com. Other countries: Please visit: www.delonghi.com.
