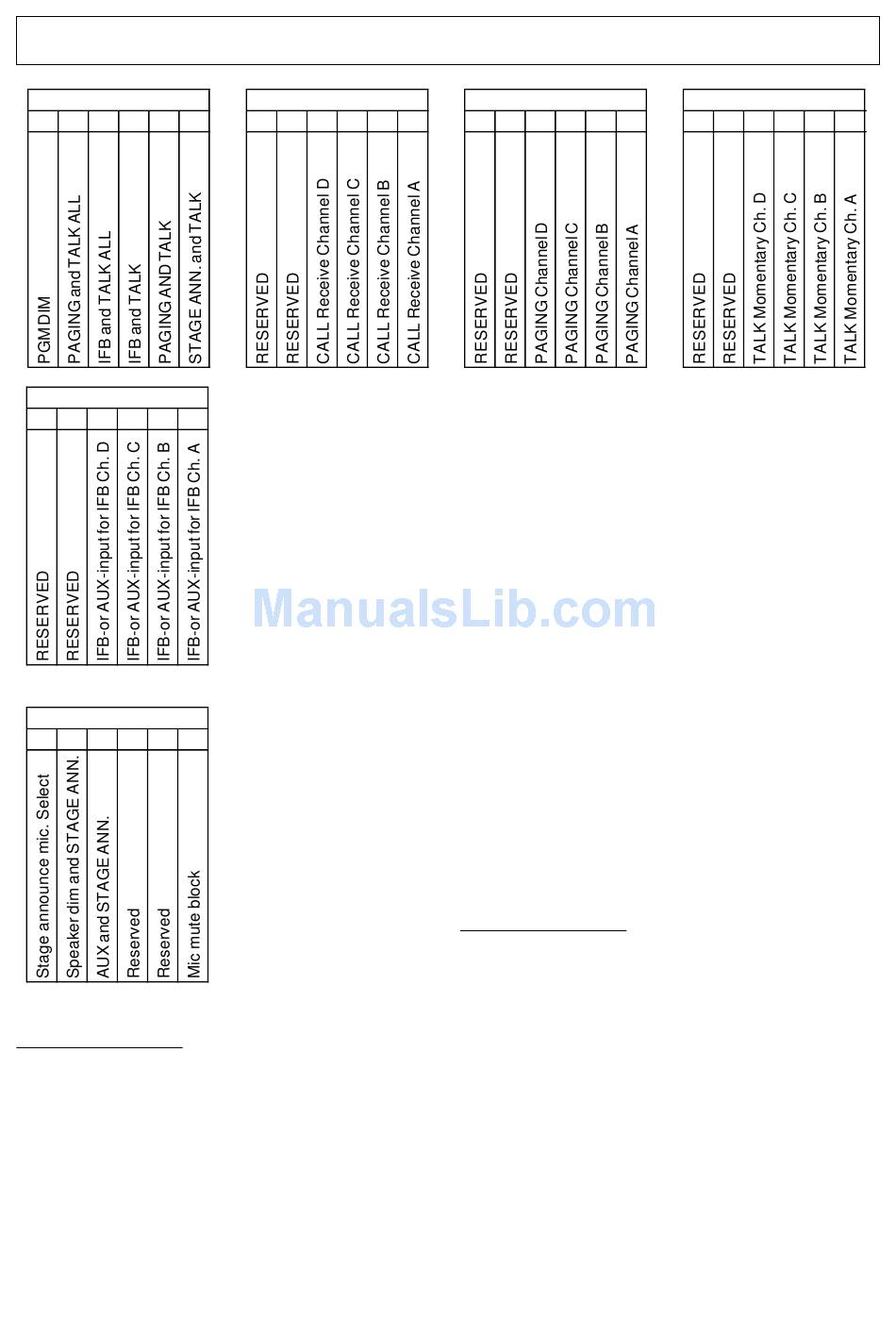

8.0 INTERNAL CONTROLS / DIP SWITCHES
Dip A
6
5
4
3
2
Dip E
6
5
4
3
2
Dip F
6
5
4
3
2
DIP SWITCH BLOCK A
No. 6
PGM Dim
(factory setting = 'off')
If this dip switch is in 'on' position the program
volume will dim to zero when a TALK LED is lit.
No. 5
PAGING and TALK ALL
(factory setting = 'off')
If this dip switch is in 'on' position, and the TALK
ALL button is pushed and held, the microphone
signal will also be routed to the channels which are
in paging mode. The CALL signal will also be sent
to these channels. (For PAGING functions see
section 9.0 MODES).
12
Dip B
1
6
5
4
3
1
1
User Manual PS 4379 - Issue 1 © 2007 ASL Intercom, Utrecht, The Netherlands
Dip C
2
1
6
5
4
No. 4
IFB and TALK ALL (factory setting = 'off')
If the dip switch is in 'on' position, and the TALK
ALL button is pushed and held, the microphone
signal will also be routed to the channels which are
in IFB mode.
No. 3
IFB and TALK (factory setting = 'off')
If this dip switch is in 'on' position, and one presses
and holds the TALK button of the IFB Channel, the
microphone signal will also be sent to all intercom
channels of which the TALK LED is lit. (For IFB
functions see section 9.0 MODES)
No. 2
PAGING and TALK (factory setting = 'off')
If this dip switch is in 'on' position, and one presses
and holds the TALK button of the PAGING channel,
the microphone signal will also be sent to all
intercom channels of which the TALK LED is lit.
(For PAGING functions see section 9.0 MODES)
No. 1
STAGE ANNOUNCE and TALK
(factory setting = 'off')
If this dip switch is in 'on' position, and one presses
and holds the STAGE ANNOUNCE button the
microphone signal will also be sent to all intercom
channels of which the TALK LED is lit.
DIP SWITCH BLOCK B
No. 6
RESERVED
No. 5
RESERVED
No. 4
CALL RECEIVE Channel D
(factory setting = 'off')
If this dip switch is in 'on' position, the correspon-
ding channel will still receive a CALL signal even if
the channel is switched off.
No. 3
CALL RECEIVE Channel C
(factory setting = 'off') (Same as for No. 4)
No. 2
CALL RECEIVE Channel B
(factory setting = 'off') (Same as for No. 4)
No. 1
CALL RECEIVE Channel A
(factory setting = 'off') (Same as for No. 4)
3
2
1
6
5
(factory setting = 'off')
(factory setting = 'off')
Dip D
4
3
2
1
