Generac Power Systems 004373-1, 004626-0 Owner's Manual page 37

(Model Nos. 004373-1 & 004626-0) Guardian Liquid-cooled 40 kW Generator
*27
*28
*27
ITEM PART NO. QTY. DESCRIPTION
1 0C3250 1 BASE, MOUNTING ASSEMBLY, 4.3L
(DIRECT-COUPLED)
3 055414 1 LUG SLDLSS #2-#8 X 17/64 CU
5 022129 2 WASHER LOCK M8-5/16
6 045771 2 NUT HEX M8-1.25 G8 YEL CHR
10 043107 2 SCREW HHC M8-1.25 X 25 G8.8
11 022145 2 WASHER FLAT 5/16 ZINC
12 027482 3 WASHER SHAKEPROOF EXT 5/16 STL
13 055597 4 SCREW HHC M12-1.75 X 85 G8.8
14 052251 2 DAMPENER VIBRATION 40 BLUE
15 052257 4 SPACER .49 X .62 X 1.87 PWDR/ZINC
16 052252 4 DAMPENER VIBRATION
17 052259 4 WASHER FLAT M12
18 052860 4 NUT LOCKING M12-1.75
19 0536210098 1 ASSEMBLY GROUNDWIRE 10"/3/8
20 052251A 2 DAMPENER VIBRATION 50 WHITE
21 044118 1 BARBED STRAIGHT 1/2 NPT X 5/8
22 057823 2 CLAMP HOSE #10 .56 - 1.06
23 057448 11" HOSE 5/8 ID TYPE 3 SINGLE
24 024310 1 PLUG STD PIPE 1/2 STEEL SQ HD
Section 7 — Exploded Views and Parts Lists

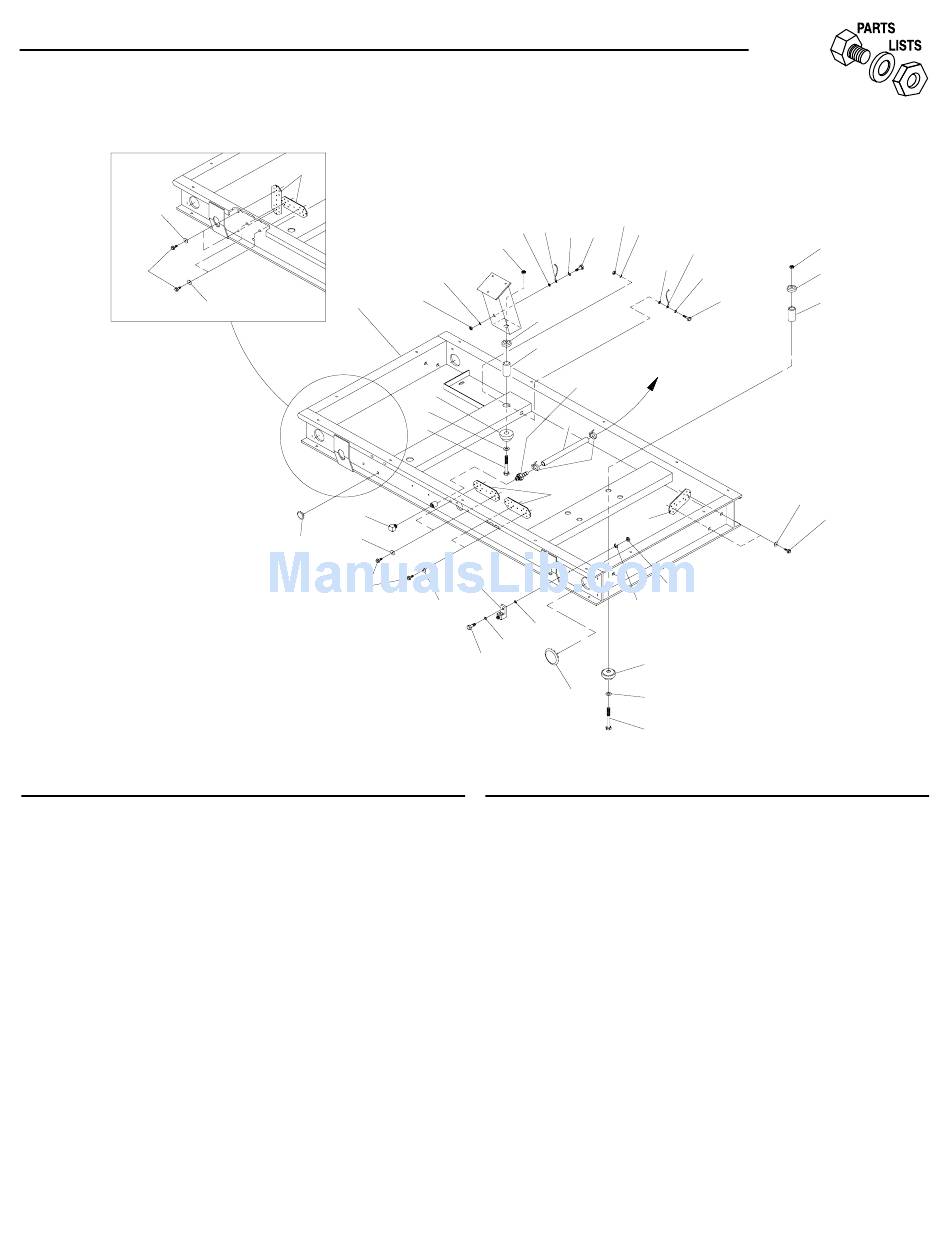

Mounting Base – Drawing No. 0C4399-C
*26
5
6
1
16
17
13
24
*27
29
3
*28
*27
12 19 11 10 6 5
18
14
15
To Oil Drain
On Oil Pan.
21
23
22
*26
*26
32
12
31
30 16
17
*25
13
ITEM PART NO. QTY. DESCRIPTION
* 25 0A8785 4 PLUG BUTTON 3" DIA.
* 26 0C4360 8 PLATE VARMINT
* 27 071693 16 WASHER FLAT .281 ID X 1.0 OD
* 28 0C2454 16 SCREW TH-FRM M6-1 X 16 N WA Z/JS
* 29 0C4753 1 PLUG 3/4 BUTTON
30 022413 1 SCREW HHC 1/4-20 X 1 G5
31 022473 1 WASHER FLAT 1/4 ZINC
32 022097 1 WASHER LOCK M6-1/4
33 022127 1 NUT HEX 1/4-20 STEEL
NOTES: 1) * ITEMS 25, 26, 27, 28 & 29 ARE INCLUDED FOR UNITS
WITH ENCLOSURES ONLY. NOT INCLUDED WITH
OPEN SETS.
2) ITEM 25 (PLUG BUTTON 3" DIA.) IS USED AFTER
SHIPPING. HOLES ARE TO REMAIN UNCOVERED
FOR SHIPPING PURPOSES. PLUGS CAN BE FOUND
IN THE MANUAL BAG LOCATED INSIDE THE LOWER
CONNECTION BOX.
Generac
18
19
12
11
20
10
15
*27
*28
33
Power Systems, Inc. 35
®
