Generac Power Systems Guardian 004188-1 Owner's Manual page 47

ITEM PART NO.
1 098290
2 098941A
3 098958A
4 098942A
5 098225
6 043146
7 022097
8 064526
9 098783
10 037398
11 0A70410SRV
12 0A7106
13 074031
14 029333A
15 022507
16 022473
Guardian Liquid-cooled 15 kW, 20 kW and 25 kW Generators

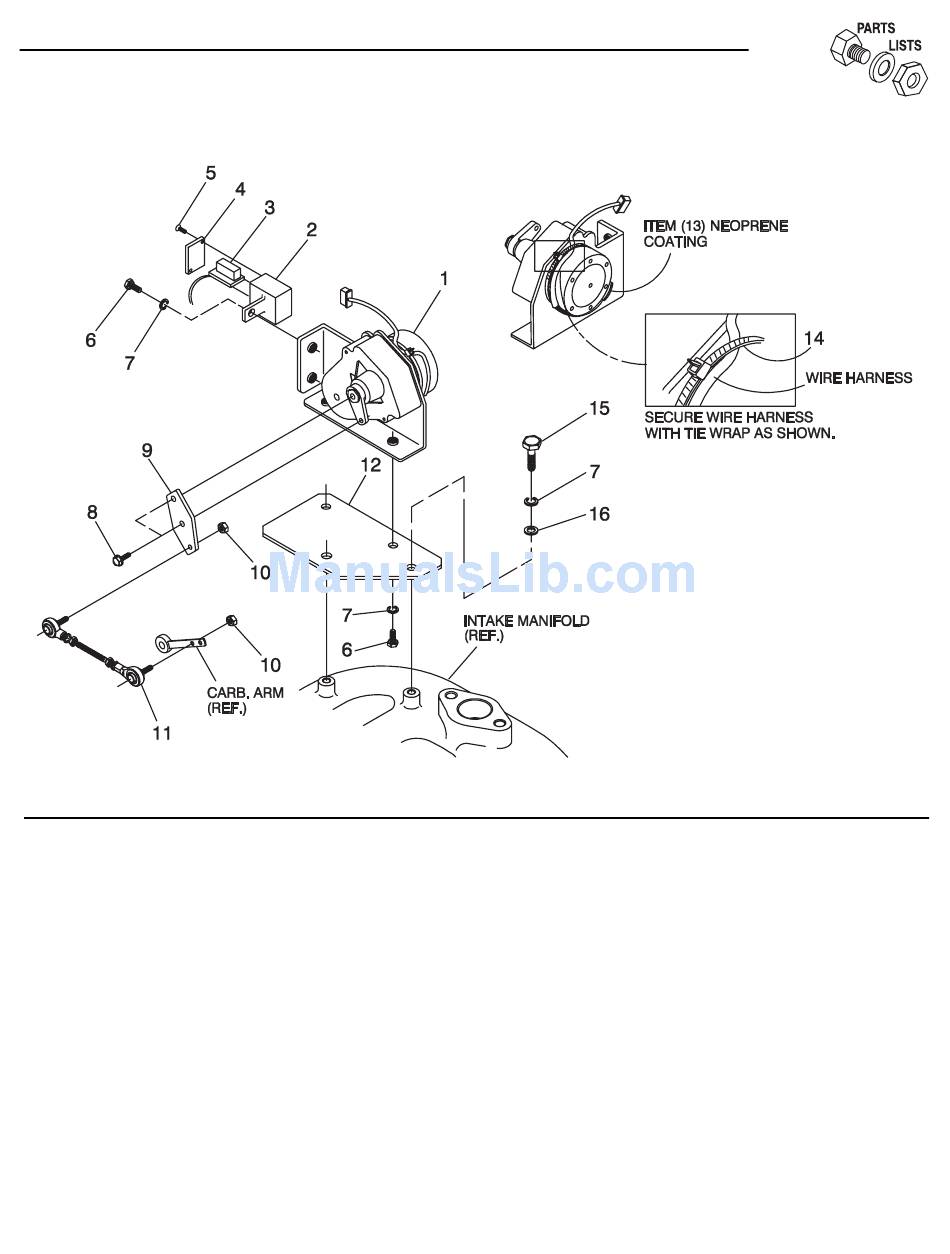

Exploded View – Governor Assembly — Drawing No. 0A7216-A
QTY. DESCRIPTION
1 ASM MOTOR STEPPER
1 HOUSING GOVERNOR CONNECTOR
1 CONNECTOR INTERFACE ASSEMBLY
1 COVER CONNECTOR HOUSING
2 SCREW FHM #2 X 5/8 SELF TAP
3 SCREW HHC M6-1.0 X 10 G8.8
5 WASHER LOCK M6-1/4
2 SCREW HHM #6-32 X 3/8 SELF TAP
1 LEVER STEPPER MOTOR
2 NUT LOCK HEX #10-32 NYL INS
1 ASSEMBLY CARBURATOR LINKAGE
1 BRACKET STEPPER MOTOR
- LIQUID NEOPRENE
1 TIE WRAP 7" BLACK
2 SCREW HHC 1/4-20 X 1/2 G5
2 WASHER FLAT 1/4 ZINC
